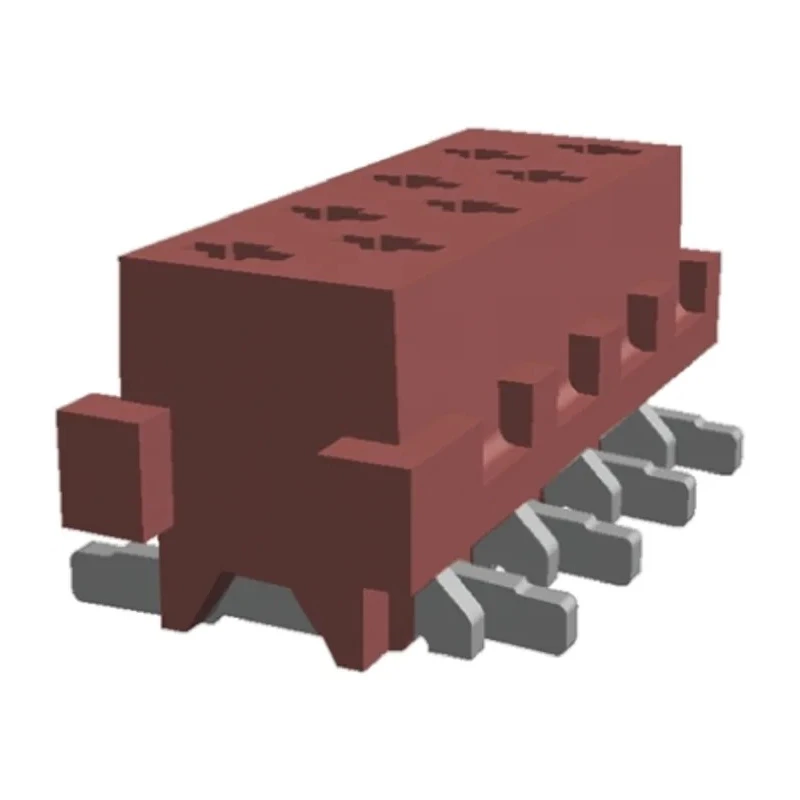

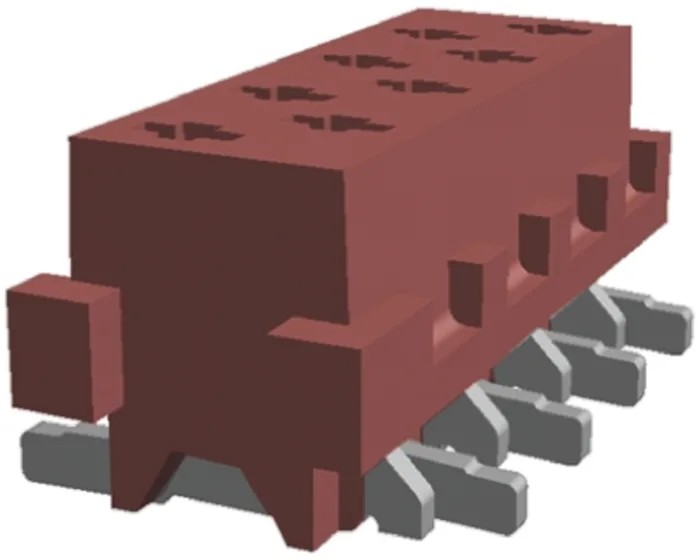

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 8-Contact 2 Row 2.54 mm Pitch Solder 188275-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 230V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Model | 188275-8 |
| Mount Type | Surface |
| Contact Material | Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Female-On-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-0131PBrand: TE ConnectivityManufacturers Part No.: 188275-8 |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Wire-to-Board |
Key Features
- The socket features a compact, space-saving design suitable for high-density PCB applications.
- It has 8 female contacts arranged in 2 rows with a 2.54 mm pitch.
- Constructed of bronze contacts plated with tin to ensure reliable conductivity.
- Supports a current rating of 1.5A and voltage of up to 230V.
- Designed for surface mount technology (SMT) with solder termination for secure mounting.
- Offers a contact spring system preventing fretting corrosion and ensures a gas-tight connection.
- Polarized design prevents mismating and enhances connection reliability.
- Operates reliably in a temperature range from -40°C to 105°C.
Product Description
TE Connectivity 188275-8 Micro-MaTch Series Straight Surface PCB Socket is a high-quality female-on-board connector designed for compact and reliable wire-to-board applications. This connector features 8 contacts arranged in 2 rows with a standard 2.54 mm pitch for versatile PCB integration.
The connector body supports surface mount solder termination ensuring stable and durable PCB attachments. Its bronze contacts are fully tin-plated, providing excellent conductivity and corrosion resistance.
The unique contact spring system prevents fretting corrosion by absorbing vibrations and thermal movements, ensuring a gas-tight and fretting-resistant connection. This design assures long-term reliability in industrial and commercial electronics applications.
Polarization of the connector prevents mismating, making it ideal for complex systems requiring secure connections. The connector supports operation in harsh environments with a wide temperature range from -40°C to 105°C and a current rating of 1.5A and voltage up to 230V.
Typical applications include production and material handling equipment, robotics, motors, control units, central heating units, automotive car radios, navigation systems, dashboard systems, base stations, set top boxes, and various audio equipment.
The socket features a compact, space-saving design. Fully tin plated bronze contacts enhance conductivity and durability. Contact spring system prevents fretting corrosion ensuring gas-tight connection. Polarization feature prevents mismating.
Designed for wire-to-board connections in diverse environments. Supports a wide operating temperature range from -40°C to 105°C. Rated for 1.5 amperes current and 230 volts operation. Surface mount solder termination type for secure PCB attachment.
Suitable for robotics, motor controls, automotive, and communication equipment.
This TE Connectivity Micro-MaTch Series PCB Socket 188275-8 offers robust performance and reliability required in industrial, laboratory, HVAC, automotive, and commercial electronics applications. Explore EnvMart's full range of electronic connectors for enhanced design and integration solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1.5A and a voltage of up to 230V.
It features a 2.54 mm pitch with 8 contacts arranged in 2 rows.
The socket utilizes solder termination for secure mounting on PCBs.
The contacts are made of bronze and are fully tin-plated to enhance conductivity and corrosion resistance.
It operates reliably within a temperature range from -40°C to 105°C.
Yes, it features a polarized design that prevents mismating and enhances connection reliability.
The orientation of this model is straight, suitable for various PCB layouts.
Typical applications include robotics, motor controls, automotive systems, and communication equipment.
This socket is designed for wire-to-board connections, making it versatile for different electronic applications.
The contact spring system prevents fretting corrosion by absorbing vibrations and thermal movements, ensuring a gas-tight connection.
The country of origin for this PCB socket is India.
The brand is TE Connectivity, and the model number is 188275-8.
