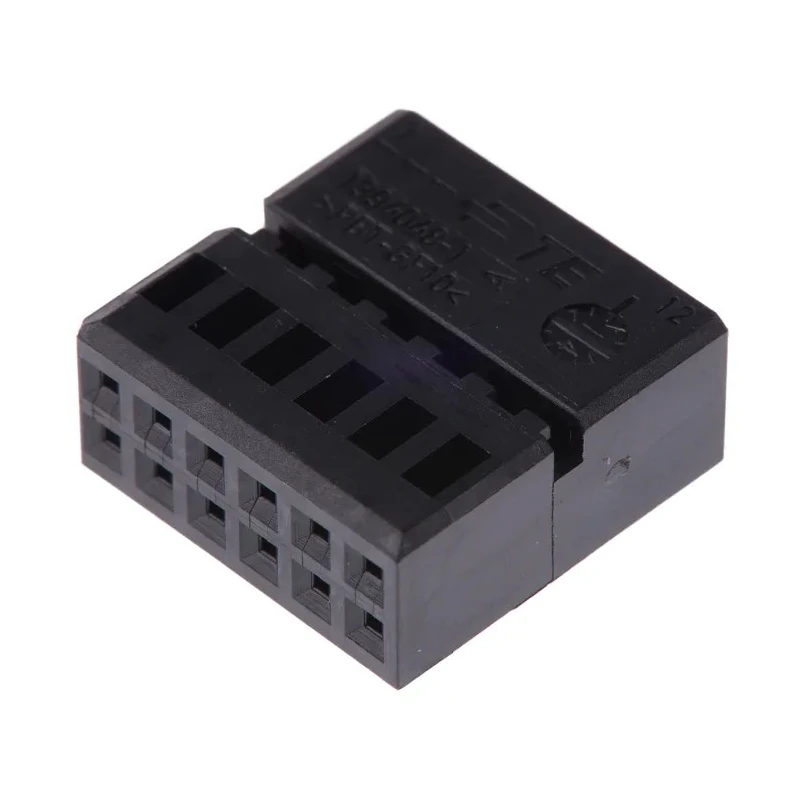

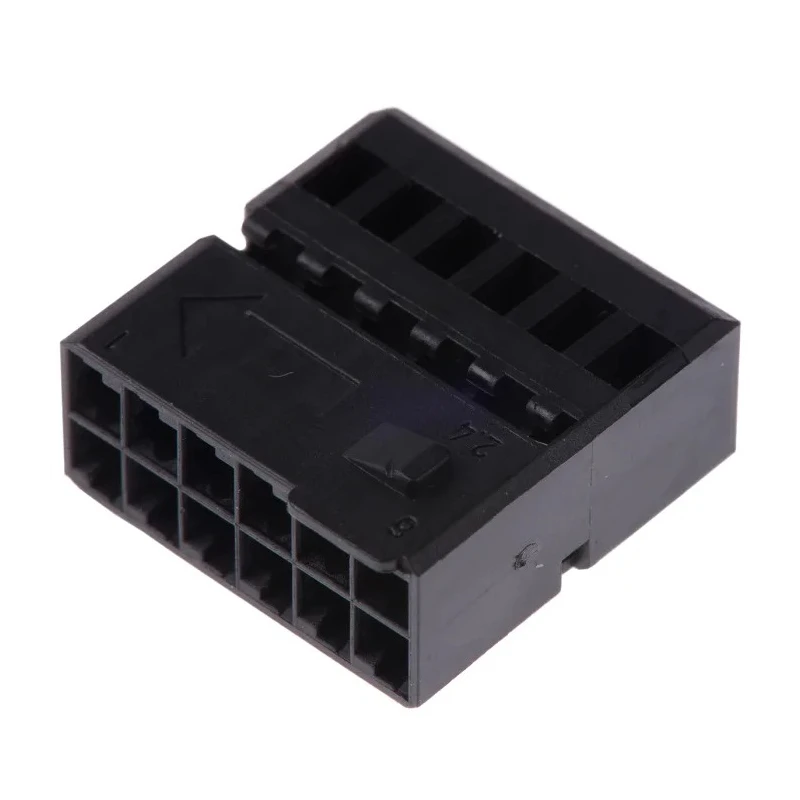

TE Connectivity Micro Quadlok System Automotive Connector Male Black Cable 12 Way Crimp Termination 1394048-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 7.8mm |
| Depth | 16mm |
| Width | 16mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 120°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS, REACH, ELV, UL 94 HB |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-7185PBrand: TE ConnectivityManufacturers Part No.: 1394048-1 |
| Number of Contacts | 12 |
Key Features
- Offers 12 contact points in a compact Micro Quadlok System design.
- Male gender with cable mount for flexible installations.
- Constructed from durable polybutylene terephthalate housing material.
- Operates reliably in temperature range from -40°C to 120°C.
- Features polarization and keying to prevent mismating during assembly.
- Sealed variants available for waterproof applications.
- Meets RoHS, REACH, ELV and UL 94 HB standards for safety and environmental compliance.
- Includes stainless steel locking lances for secure contact retention.
Product Description
TE Connectivity 1394048-1 Micro Quadlok System Automotive Connector is a male black cable connector with 12 crimp termination points designed for automotive industry requirements.
This Micro Quadlok System (MQS) 2.54 mm pitch connector offers a high-density, compact configuration providing reliable electrical connections under demanding conditions. Constructed from polybutylene terephthalate, the housing exhibits high durability and mechanical strength withstanding continuous operating temperatures from -40°C up to 120°C.
The connector features two rows of contacts with a cable mount type, making it suitable for versatile wiring harness applications. Polarization and keying options ensure correct mating and prevent incorrect connections during assembly, enhancing system integrity.
Stainless steel locking lances integrated in the design deliver high primary terminal locking force securely holding MQS contacts within the housing. Sealed versions provide waterproof protection for reliable performance in harsh environments. The connector complies with international standards including RoHS, REACH, ELV, and UL 94 HB for safety and environmental regulations.
Applications for this series include powertrain controls, safety and security systems, convenience electronics, driver information displays, as well as body and chassis harnesses in automotive vehicles.
Offers 12 contact points in a compact Micro Quadlok System design. Male gender with cable mount for flexible installations. Constructed from durable polybutylene terephthalate housing material. Operates reliably in temperature range from -40°C to 120°C.
Features polarization and keying to prevent mismating during assembly. Sealed variants available for waterproof applications. Meets RoHS, REACH, ELV and UL 94 HB standards for safety and environmental compliance. Includes stainless steel locking lances for secure contact retention.
Housing dimensions: 16mm width, 16mm depth, 7.8mm height for space-efficient installation. Designed for use in powertrain, safety, body, and driver information automotive systems. Explore our Automotive Connector selections at EnvMart for high quality, reliable products suitable for industrial and automotive manufacturing environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 120°C.
This connector features 12 contact points.
It is constructed from polybutylene terephthalate housing material.
The dimensions are 7.8mm in height, 16mm in width, and 16mm in depth.
This connector uses crimp termination.
Yes, sealed variants are available for waterproof applications.
It meets RoHS, REACH, ELV, and UL 94 HB standards for safety and environmental compliance.
This connector has a male gender and is designed for cable mounting.
It is designed for use in powertrain controls, safety and security systems, convenience electronics, driver information displays, and body and chassis harnesses in automotive vehicles.
Yes, it features polarization and keying to prevent mismating during assembly.
This connector has two rows of contacts.
The country of origin for this connector is India.
