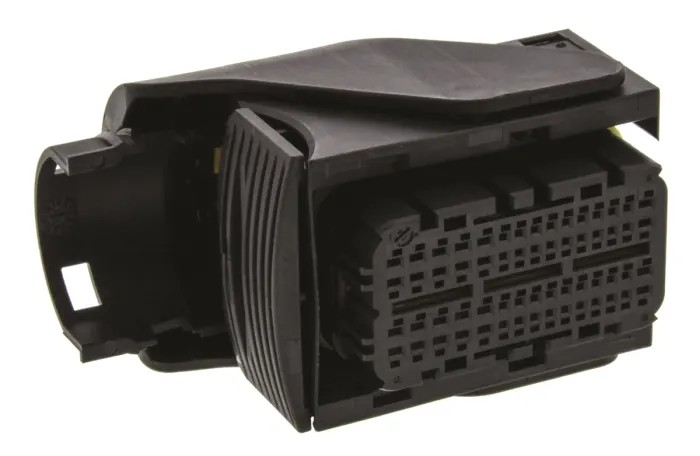

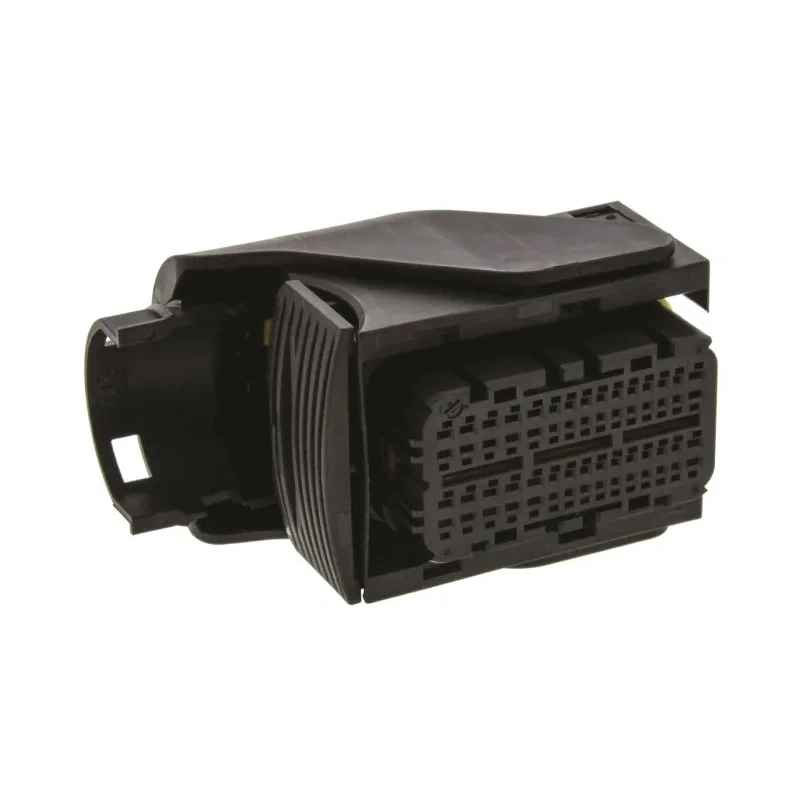

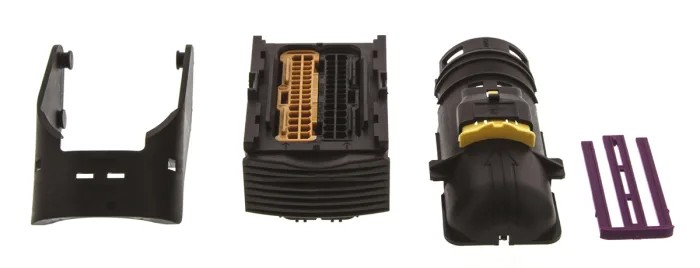

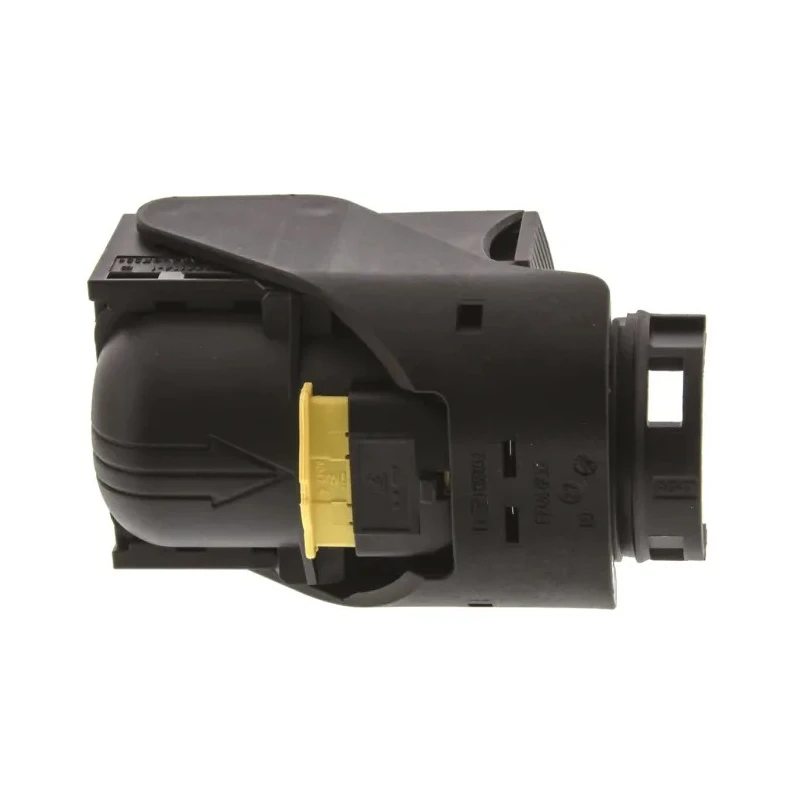

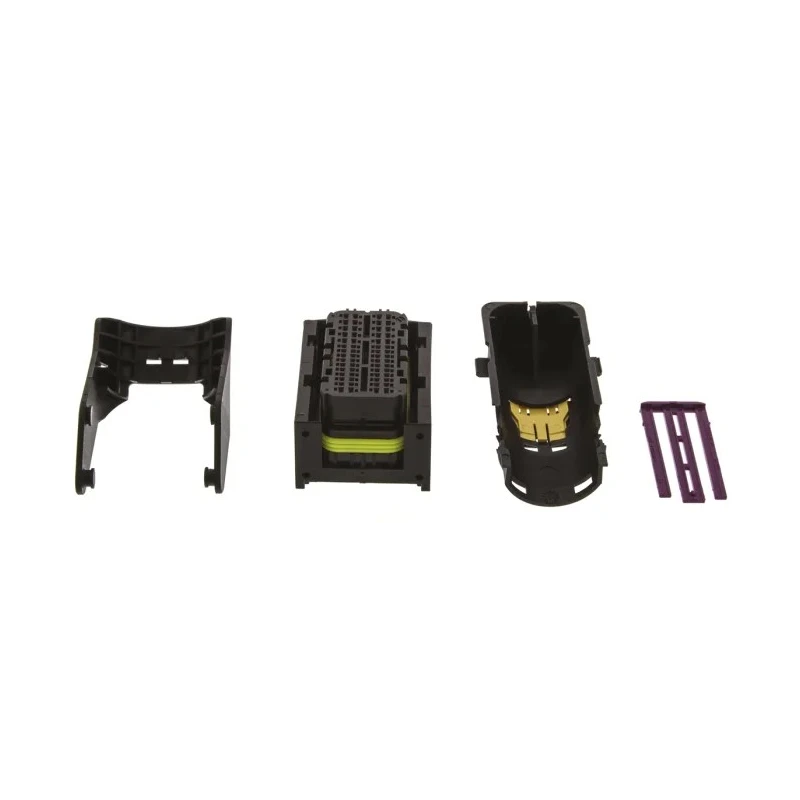

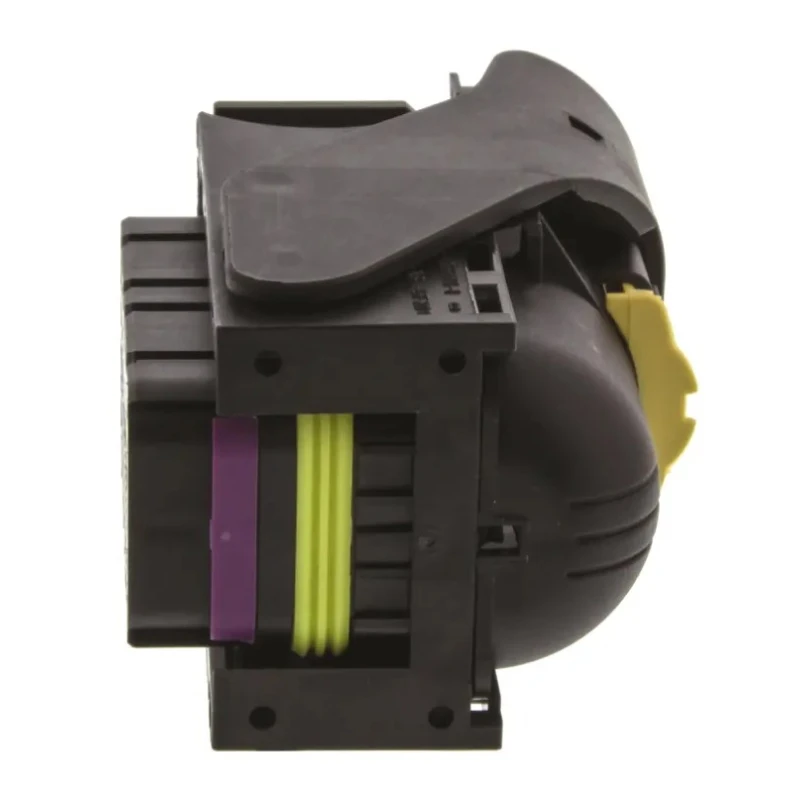

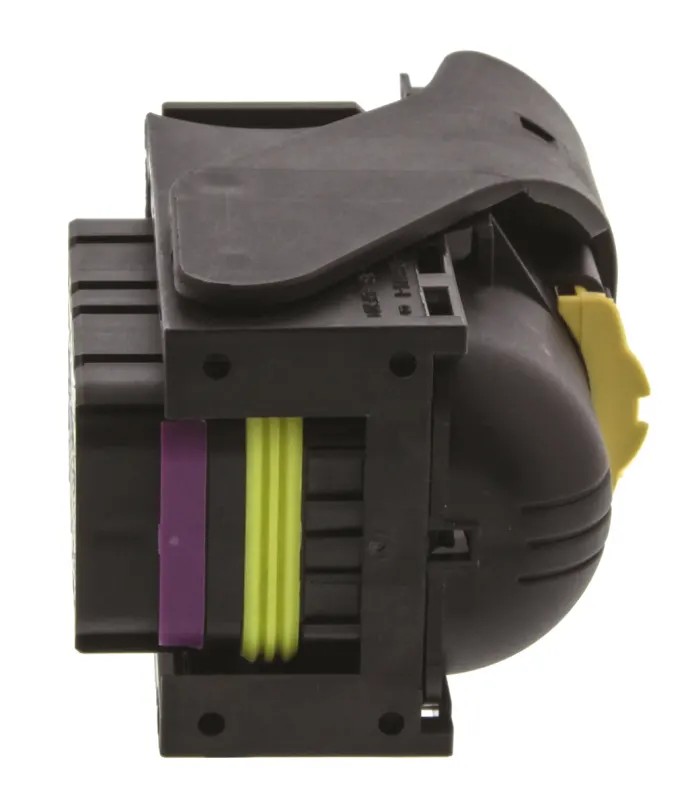

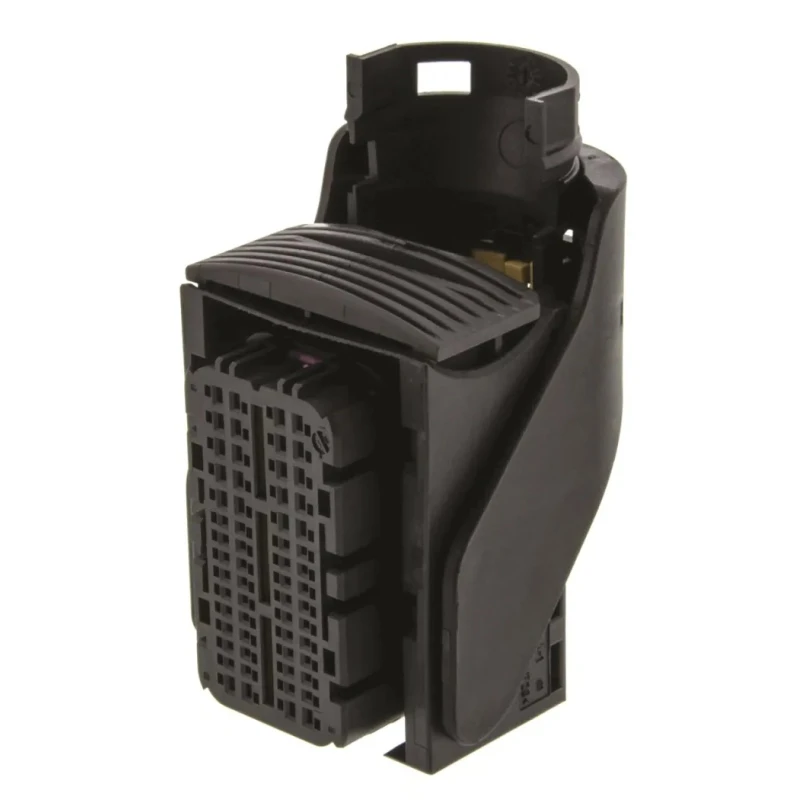

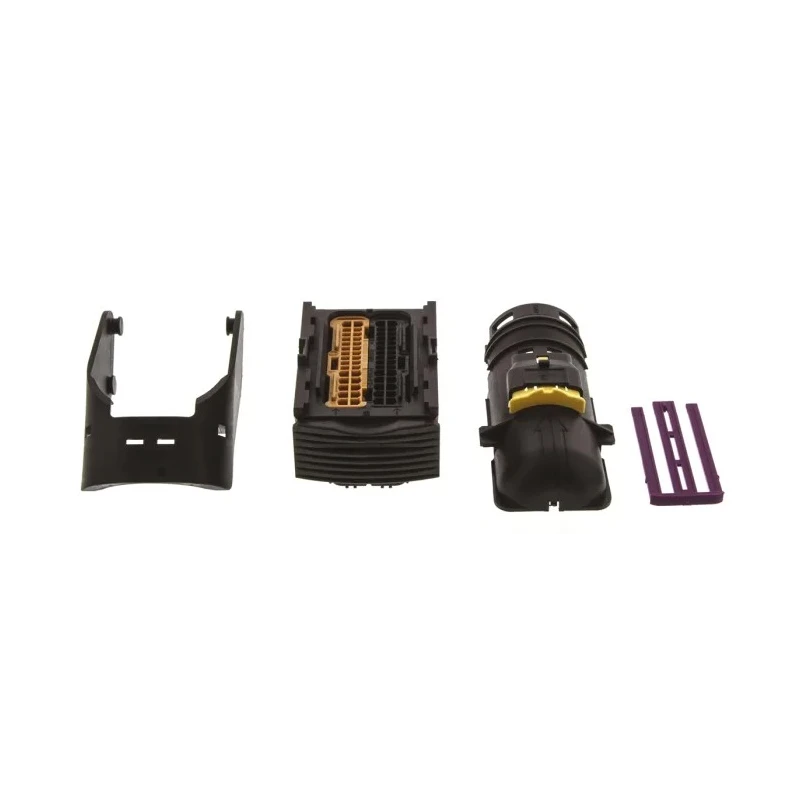

TE Connectivity Micro Quadlok System Automotive Connector Female 60 Way Crimp Termination 284742-1
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TE Connectivity |
| Colour | Brown, Black |
| Current | 14A |
| Height | 80mm |
| Model | 284742-1 |
| Depth | 74.4mm |
| IP Rating | IPX4 |
| Width | 46mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 4 |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-6785Brand: TE ConnectivityManufacturers Part No.: 284742-1Distrelec Article No.: 30223154 |
| Number of Contacts | 60 |
Key Features
- The connector features 4 rows for high density wiring configurations.
- Rated for 14A current carrying capacity suitable for automotive electrical systems.
- Constructed with durable nylon housing in brown and black colors for cable identification.
- Operates reliably in temperatures ranging from -40°C to 125°C.
- Offers IPX4 ingress protection for resistance against splashing water.
- The Micro Quadlok 2.54 mm pitch system provides polarization and keying to prevent mismating.
- Includes integral primary terminal locking force securing contacts firmly.
- Designed and manufactured in Hungary, RoHS compliant.
Product Description
TE Connectivity 284742-1 Micro Quadlok System Automotive Connector is a high density, compact female automotive connector housing with 60 contacts and crimp termination designed for cable mount applications. It supports robust electrical connectivity solutions in demanding automotive environments.
The connector features a 2.54 mm pitch MQS system with polarization and keying options to prevent mismating, ensuring reliable assembly in powertrain, safety, security, convenience, driver information, and body/chassis systems within the automotive industry.
Constructed from durable nylon material with a brown and black color scheme, this series connector housing supports a current rating of 14A and meets IPX4 water ingress protection standards. It effectively operates across a wide temperature range from -40°C to 125°C, suitable for harsh automotive conditions.
The MQS connector achieves high primary terminal locking force through stainless steel locking lances on contacts, providing secure and vibration-resistant electrical connections. The connector's compact dimensions (80mm height, 74.4mm depth, 46mm width) enable integration into constrained spaces.
This product is RoHS compliant, designed and manufactured in Hungary, and meets high-quality demands typical of automotive electrical connectors. The connector accommodates 60 individual contacts arranged in 4 rows. Termination using crimp type contacts offers easy field assembly.
Micro Quadlok connector system includes sealing options for waterproof versions (additional seals sold separately). Integral locking force and keying prevent mismating and enhance assembly confidence. Application areas include powertrain, safety/security systems, driver information, and body/chassis wiring harnesses.
Compatible with MQS contacts and hybrid contact versions for mixed contact compositions. Explore more automotive connectors and accessories from TE Connectivity in the EnvMart Automotive Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a current carrying capacity of 14A, suitable for automotive electrical systems.
This model has dimensions of 80mm in height, 74.4mm in depth, and 46mm in width.
It operates reliably in temperatures ranging from -40°C to 125°C.
The connector features crimp termination, designed for cable mount applications.
It offers IPX4 ingress protection, providing resistance against splashing water.
The Micro Quadlok connector accommodates 60 individual contacts arranged in 4 rows.
It is constructed with durable nylon housing in brown and black colors for cable identification.
Yes, this connector is RoHS compliant, meeting environmental standards.
This connector is designed and manufactured in Hungary.
It is suitable for use in powertrain, safety/security systems, driver information, and body/chassis wiring harnesses.
Yes, the Micro Quadlok connector system includes sealing options for waterproof versions, though additional seals are sold separately.
The connector features polarization and keying options to prevent mismating, along with integral primary terminal locking force.
