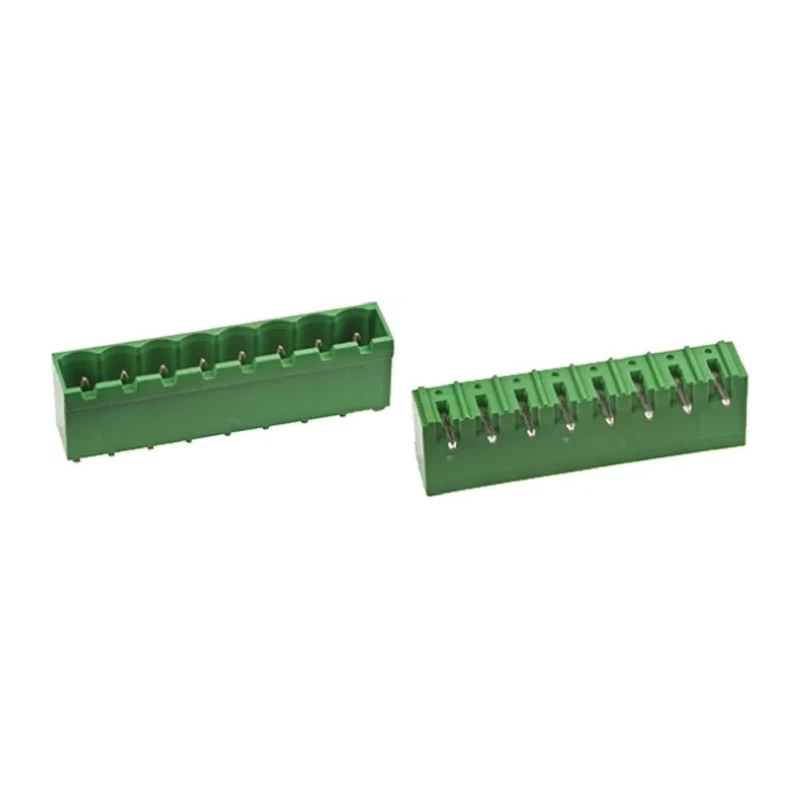

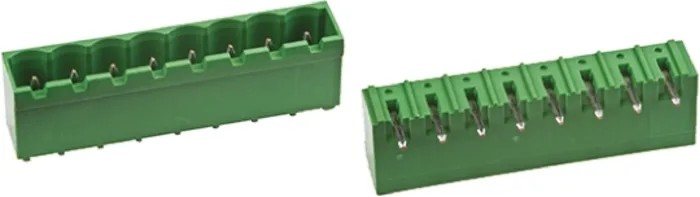

TE Connectivity Buchanan Series Pluggable Terminal Block 10-Contact 5.08 mm Pitch 1 Row 300V 15A 1-796638-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 717-6612Brand: TE ConnectivityManufacturers Part No.: 1-796638-0 |
| Number of Contacts | 10 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Solder |
Key Features
- Rated for 15 amps current and 300 volts voltage.
- Constructed from green polyamide 6.6 GF housing material providing insulation and durability.
- Right-angle connector orientation for compact PCB layouts.
- Supports wire sizes ranging from 0.05 mm² to 3 mm² (12 AWG to 30 AWG).
- Employs solder wire connection method for secure electrical contacts.
- Female connector type in the Buchanan series for standardized compatibility.
- Single row terminal block with 10 contacts spaced at 5.08 mm pitch.
- Complies with UL 94V-0 flammability safety standards.
Product Description
TE Connectivity 1-796638-0 Buchanan Series Pluggable Terminal Block is engineered for robust electrical connections on printed circuit boards used in industrial and electronic applications. This terminal block features 10 contacts arranged in a single row with a 5.08 mm pitch, providing a secure and reliable interface for conductor terminations.
Its housing is made from green polyamide 6.6 GF ensuring excellent insulation, mechanical strength, and resistance to environmental factors. The connector is female gender and designed with a right-angle orientation optimized for compact PCB mount designs.
This terminal block supports currents up to 15A and voltages up to 300V, suited for a variety of electronic and power applications. It accommodates wire sizes from 0.05 mm² up to 3 mm², equivalent to AWG 12 through AWG 30, making it versatile for different wiring needs.
The wire connection method is solder, ensuring durable electrical contact integrity. As part of the TERMI-BLOK series, it complies with UL 94V-0 flammability standards, enhancing safety in operation.
The product is ideal for use in industrial automation systems, power connectors, electronic components assemblies, and related fields requiring dependable terminal block solutions.
Rated for 15 amps current and 300 volts voltage. Housing material is green polyamide 6.6 GF for durability and insulation. Right-angle orientation facilitates compact PCB designs. Supports wire sizes from 0.05 mm² to 3 mm² (12 AWG to 30 AWG).
Solder wire connection method ensures reliable contacts. Complies with UL 94V-0 flammability standards for safety. Single row with 10 contacts and 5.08 mm pitch. This TE Connectivity terminal block enhances production efficiency by enabling ready insertion into machinery and electrical assemblies.
Discover more electronic connectors and terminal blocks in EnvMart’s comprehensive electronics and electrical components catalog.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a maximum current of 15 amps.
It can handle voltages up to 300 volts.
It supports wire sizes ranging from 0.05 mm² to 3 mm², equivalent to AWG 12 through AWG 30.
The terminal block has a pitch of 5.08 mm and features 10 contacts in a single row.
The housing is constructed from green polyamide 6.6 GF, providing insulation and mechanical strength.
It features a right-angle connector orientation, which is optimized for compact PCB layouts.
It employs a solder wire connection method for secure electrical contacts.
Yes, it complies with UL 94V-0 flammability safety standards.
The connector type is female.
It is suitable for use in industrial automation systems, power connectors, and electronic component assemblies.
The terminal block has a single row with 10 contacts spaced at 5.08 mm pitch, but specific dimensions are not provided.
The country of origin for this terminal block is India.
