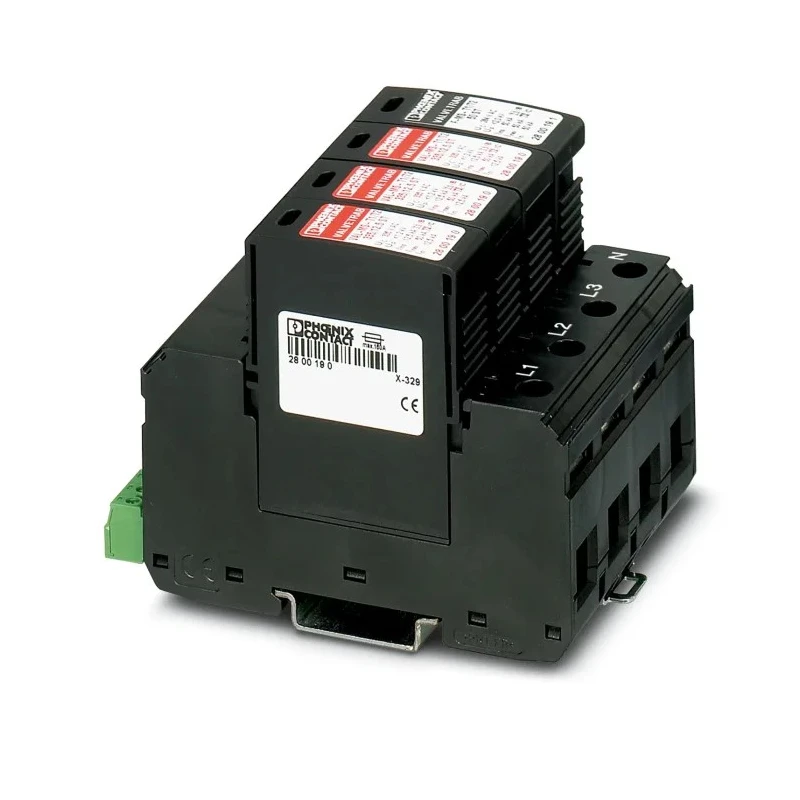

Phoenix Contact 3 Phase Surge Protector 50 kA 250 V AC DIN Rail Mount 2800183
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Length | 99mm |
| Model | 2800183 |
| Depth | 77.5mm |
| IP Rating | IP20 |
| Width | 71.2mm |
| Mount Type | DIN Rail |
| Series | VAL-MS-T1/T2 335/12.5/3+1-FM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Electrical Phase | 3 |
| Standards/Approvals | IEC 61643-11 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-5285Brand: Phoenix ContactManufacturers Part No.: 2800183 |
| Maximum Surge Current | 50kA |
| Voltage Protection Rating | 250V ac |
| Impulse Discharge Current | 12.5kA |
Key Features
- The device features a DIN Rail mount type for easy installation in control panels.
- Designed for three electrical phases with a maximum surge current rating of 50 kA.
- Impulse discharge current is rated at 12.5 kA, enhancing protection during transient surges.
- Constructed with thermal disconnect functionality for each plug to ensure safety.
- Includes floating remote indication contact for monitoring status externally.
- High tolerance surge protection with new latching mechanism to withstand strong electrical loads and vibration.
- IP20 protection rating suitable for industrial environments.
- Meets IEC 61643-11 standards ensuring compliance with electrical protection norms.
Product Description
Phoenix Contact 2800183 three-phase surge protector is an industrial surge protection device designed to safeguard electrical equipment from sudden voltage spikes and lightning surges. This device is rated for a maximum surge current of 50 kA and a voltage protection rating of 250 V AC, making it reliable for protecting industrial and commercial electrical installations.
Equipped with a DIN Rail mounting option, it integrates easily within distribution boards or control panels typically found in industrial settings. The device is built for three-phase electrical systems and features impulse discharge current capabilities of 12.5 kA with a varistor-based plug-in design that provides robust surge protection.
Each plug includes thermal disconnect functionality to prevent damage during overvoltage conditions. The floating remote indication contact allows for external monitoring of the device status, enhancing maintenance efficiency. The mechanical coding ensures correct installation in corresponding slots, minimizing installation errors. Its IP20 rated enclosure offers protection against solid foreign objects while allowing ventilation.
The device is compliant with IEC 61643-11 standards, ensuring high quality and safety. The operating temperature range from -40°C to 80°C allows for usage in diverse industrial environments. Compact form factor with length 99 mm, width 71.2 mm, and depth 77.5 mm conserves panel space.
Its robust construction withstands strong vibrations and high electrical loads, maintaining surge protection effectiveness. Commonly used in commercial warehouses, industrial factories, and manufacturing facilities to protect critical infrastructure.
Overall, the Phoenix Contact 2800183 surge protector is a reliable and durable solution for surge protection in industrial applications. Its advanced features and compliance with standards make it an essential component for electrical safety and equipment longevity. Explore more Surge Protection Devices on EnvMart for similar industrial-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current rating of this surge protector is 50 kA.
The voltage protection rating for this model is 250 V AC.
The impulse discharge current rating is 12.5 kA.
The dimensions are 99 mm in length, 71.2 mm in width, and 77.5 mm in depth.
It features a DIN Rail mount type for easy installation in control panels.
The operating temperature range is from -40°C to 80°C.
The enclosure has an IP20 protection rating.
Yes, each plug includes thermal disconnect functionality to ensure safety during overvoltage conditions.
Yes, it meets the IEC 61643-11 standards for surge protection devices.
This surge protector is designed for three-phase electrical systems.
It includes a floating remote indication contact for monitoring status externally.
The country of origin for this surge protector is Germany.
