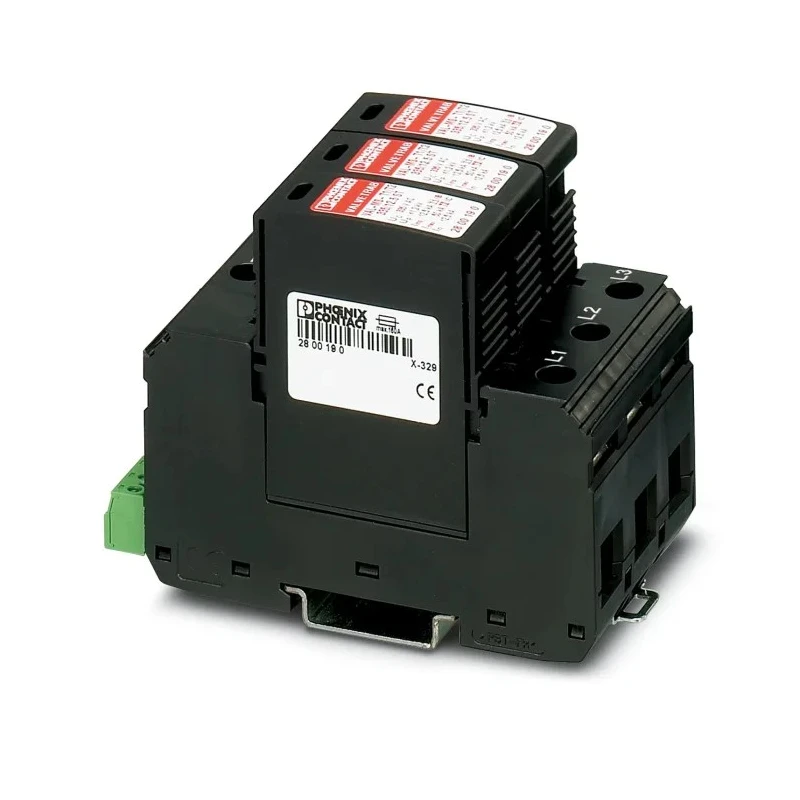

Phoenix Contact 3 Phase Surge Protector 50 kA 250 V ac DIN Rail 2800188

Phoenix Contact 2800188 is a 3 Phase Surge Protector designed to provide robust surge protection at 50 kA maximum surge current capacity and 250 V ac voltage rating. It is engineered for DIN Rail mounting, making it ideal for industrial and commercial electrical protection applications.

This surge protector is based on the VAL-MS series, featuring a varistor-based plug-in design that safeguards critical infrastructure and equipment from unexpected voltage surges and lightning-induced disturbances. Its design includes floating remote indication contacts, enabling seamless monitoring of device status within automated systems.

Engineered for durability, the device offers a wide operating temperature range from -40°C up to a maximum of 80°C, perfectly suited for harsh industrial environments. The compact form factor with dimensions of 99 mm in length, 53.4 mm in width, and 77.5 mm in depth facilitates easy integration into existing setups.

The surge protector complies with IEC 61643-11 standards, ensuring adherence to internationally recognized safety and performance criteria. It incorporates thermal disconnects for each individual plug to enhance reliability under high current loads and vibration conditions.

The device provides IP20 ingress protection, which suits indoor installations where basic protection against solid objects is required. The mechanical coding of all slots and a latching mechanism ensure secure connections and high voltage protection in accordance with protection classes 3 and 4.

This surge protector is highly recommended for use in industrial factories, commercial warehouses, and critical infrastructure environments where electrical surge protection is mandatory to prevent equipment damage and ensure operational continuity.

Maximum surge current capacity of 50 kA ensures high-level protection against electrical surges. Rated voltage protection of 250 V ac is suitable for three-phase electrical systems. Impulse discharge current of 12.5 kA enhances surge absorption capabilities.

DIN Rail mount type allows easy and secure installation. Meets IEC 61643-11 standard for safety and performance. Operating temperature range from -40°C to 80°C for industrial environments. IP20 rated for basic ingress protection against solid objects.

Floating remote indication contact for status monitoring. Thermal disconnect feature increases reliability during high electrical load. Compact and space-saving dimensions of 99 mm x 53.4 mm x 77.5 mm. Explore the Phoenix Contact range at EnvMart for comprehensive industrial surge protection solutions and related circuit protection devices.
