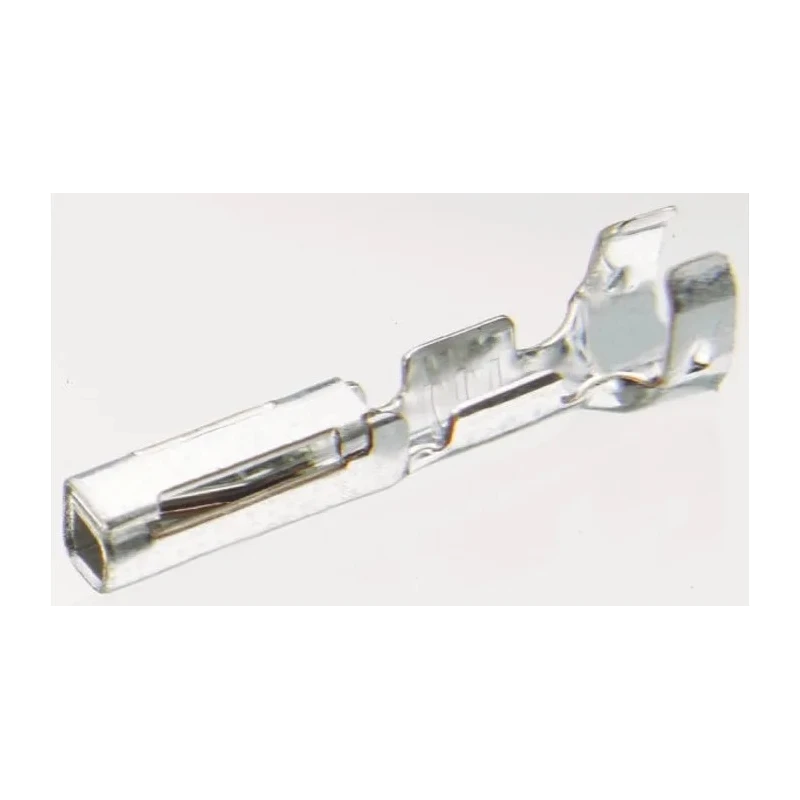

TE Connectivity MULTILOCK 040 III Series Female Crimp Terminal, 21 AWG Min, 18 AWG Max, Gold Plating, Copper Alloy 316837-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Length | 13.4mm |
| Model | 316837-2 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 0.025/0.04 Hybrid I/O Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-1946P Brand: [TE Connectivity](https://in.rsdelivers.com/brands/te-connectivity)Manufacturers Part No.: 316837-2 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.85mm² |
| Minimum Wire Size AWG | 21AWG |
| Maximum Wire Size AWG | 18AWG |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- Compatible with MULTILOCK 0.025/0.04 Hybrid I/O Connector Housing.
- Supports current rating up to 15A with 1kVac withstand voltage.
- Operates efficiently in temperatures from -30°C to 105°C.
- Crimp termination provides a solid mechanical connection for automation industry applications.
- Contact length is 13.4mm for precise fit and secure attachment.
- Contact plating is gold to reduce corrosion and enhance conductivity.
- Supports snap-in fixing in connector cavities for easy assembly.
- Low contact resistance ensures minimal energy loss.
Product Description
TE Connectivity 316837-2 MULTILOCK 040 III Series Female Crimp Terminal is designed for high-density wire-to-wire and wire-to-board connections, commonly used in automotive and automation industries. It supports wire sizes from 21 AWG (0.3 mm²) minimum to 18 AWG (0.85 mm²) maximum and features gold-plated copper alloy contacts that offer excellent electrical conductivity and corrosion resistance. The crimp termination ensures a robust and reliable mechanical connection ideal for industrial cable assemblies.
This crimp terminal operates reliably within a temperature range of -30°C to 105°C and can handle a current load of 15A. The contact length of 13.4mm allows precise insertion into MULTILOCK 0.025/0.04 Hybrid I/O connector housings with snap-in fixing for secure assembly. The contact plating, made of gold, minimizes wear and oxidation, maintaining low-level resistance (1 mΩ max initial) and overall resistance at a maximum of 10 mΩ.
The MULTILOCK 040 III series is widely recognized for its solid mechanical connection, making it suitable for automation equipment, industrial control systems, and other electronic connector applications requiring high reliability. With a compact form factor, this crimp terminal facilitates efficient signal transfer and power delivery in dense wiring environments.
Compatible with MULTILOCK Hybrid I/O connector housings for versatile wiring solutions. Gold plating on copper alloy contacts for enhanced conductivity and corrosion protection. Supports crimp termination for secure and long-lasting connections.
Operates reliably within -30°C to 105°C industrial temperature range. Current rating up to 15A with withstand voltage of 1kVac per minute. Snap-in fixing for efficient installation in connector cavities. Low contact resistance ensures minimal voltage drop.
Length of 13.4mm for precise connection and fitment.
TE Connectivity’s MULTILOCK connectors and contacts offer a miniature, high density connector system suitable for automotive and various industrial signal transfer applications. This product supports wire to wire and wire to board applications with reliable and efficient electrical performance.
Browse related TE Connectivity connectors and crimp terminals categories on EnvMart for compatible components and tooling.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of up to 15A.
This model operates efficiently within a temperature range of -30°C to 105°C.
It is designed for wire sizes ranging from 21 AWG (0.3 mm²) minimum to 18 AWG (0.85 mm²) maximum.
It features a crimp termination type, providing a solid mechanical connection.
The contact length is 13.4mm, allowing for precise insertion into connector housings.
The contacts are made of gold-plated copper alloy, which enhances conductivity and reduces corrosion.
Yes, it is compatible with MULTILOCK 0.025/0.04 Hybrid I/O Connector Housing.
It has a low-level resistance of 1 mΩ max (initial) and an overall resistance of 10 mΩ max (final).
It is commonly used in automotive and automation industries for high-density wire-to-wire and wire-to-board connections.
The snap-in fixing allows for easy assembly and secure attachment in connector cavities.
The MULTILOCK 040 III Series Female Crimp Terminal is manufactured in India.
It has a withstand voltage of 1kVac per minute.
