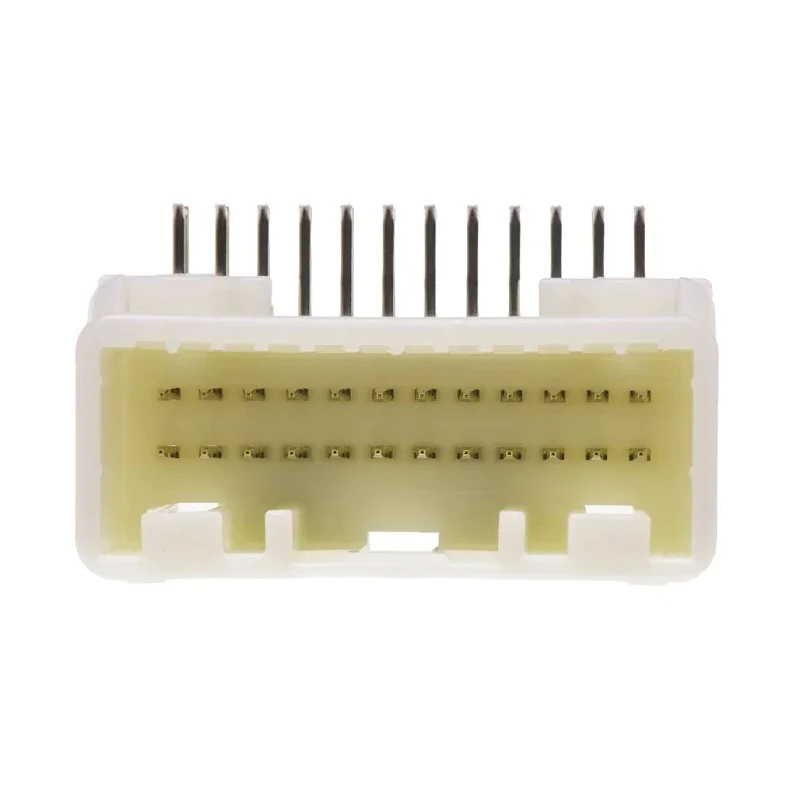

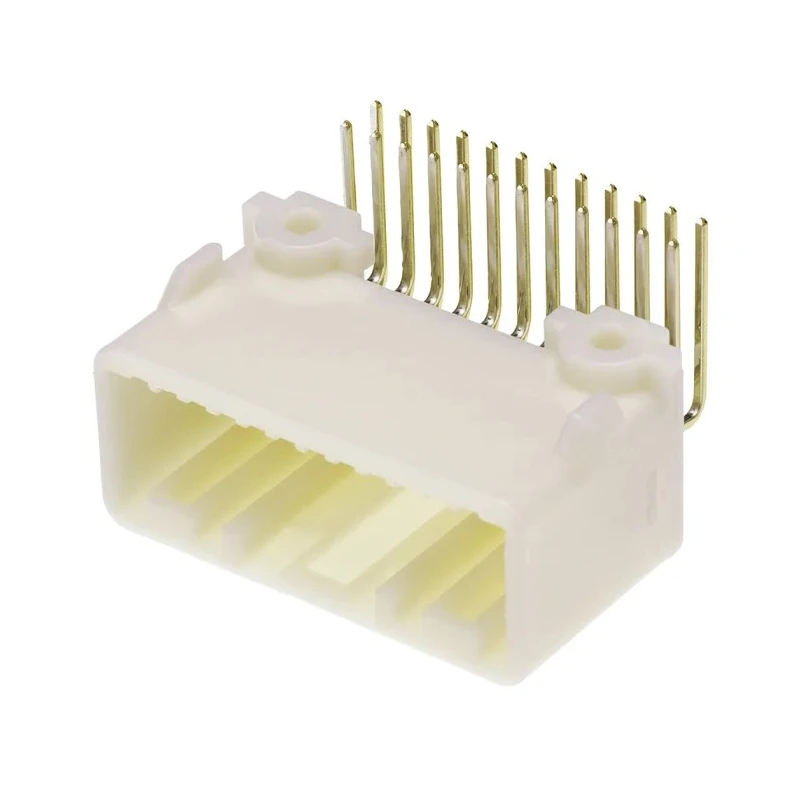

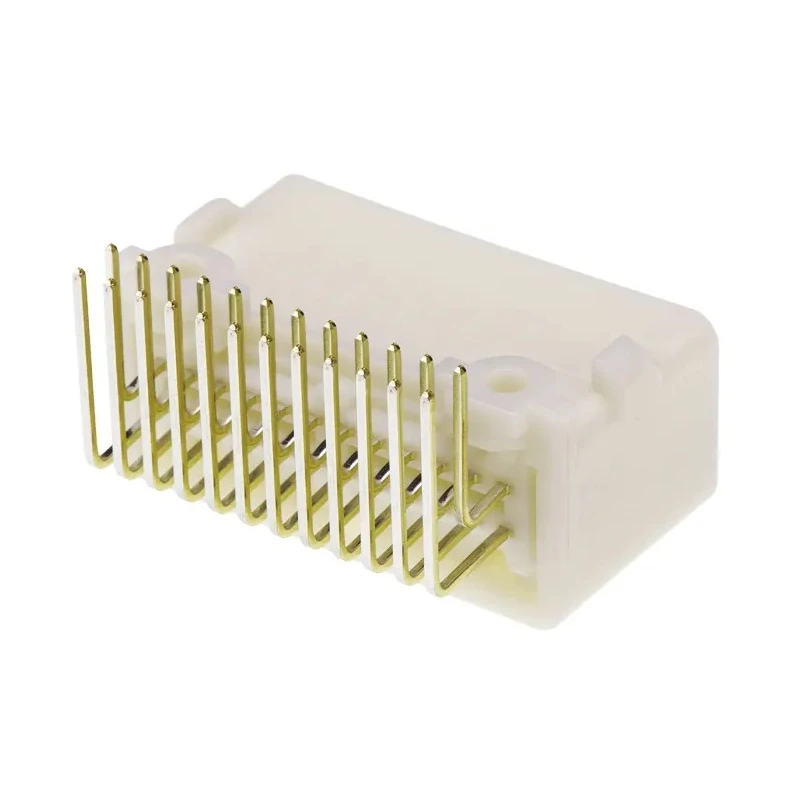

TE Connectivity MULTILOCK 025 Automotive Connector Female Natural Through Hole 24 Way Solder Termination 1318853-2
Specifications
| Brand | TE Connectivity |
|---|---|
| Colour | Natural |
| Height | 15.49mm |
| Depth | 24.47mm |
| Width | 31.8mm |
| Gender | Female |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | MULTILOCK 025 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Cap Assembly |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Standards/Approvals | ELV, REACH, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-1274PBrand: TE ConnectivityManufacturers Part No.: 1318853-2 |
| Contact Plating | Tin |
| Number of Contacts | 24 |
Key Features
- Compact design with 2.2 mm high density pitch.
- Features board fixation screws for secure PCB mounting.
- Natural coloured housing made from durable polybutylene terephthalate.
- Female connector with 24 contacts arranged in 2 rows.
- Termination by solder ensuring reliable electrical connection.
- Suitable for operating temperatures from -65°C to 105°C.
- Compliant with ELV, REACH, and RoHS standards.
- Contact material is brass with tin plating to prevent corrosion.
Product Description
TE Connectivity 1318853-2 MULTILOCK 025 Automotive Connector is a female connector designed for automotive and industrial PCB applications. Featuring a compact 2.2 mm pitch and a 24-contact configuration arranged in 2 rows, it offers a high-density solution for space-constrained circuit boards. The connector utilizes through hole mounting and solder termination to ensure secure and reliable electrical connections.
The connector housing is made of polybutylene terephthalate (PBT) with a natural color code for easy identification, while the contacts are brass with tin plating providing durability and protection against corrosion. Operating temperature ranges from a low of -65°C to a maximum of 105°C, making it suitable for demanding automotive environments.
Designed for robustness, the connector includes board fixation screws securing it firmly to printed circuit boards. It complies with various environmental standards including ELV, REACH, and RoHS, affirming its safe use in automotive applications.
Applications include automotive safety and security systems, driver information systems, multimedia devices, airbag control units, and dashboard modules. Its compact size allows usage in advanced electronic automotive control systems requiring reliable, high-performance connections in restricted spaces.
Compact design with 2.2 mm high density pitch. Features board fixation screws for secure PCB mounting. Natural coloured PBT housing for durability and identification. Female connector with 24 brass contacts plated with tin.
Solder termination for strong electrical connections. Through hole mount type for mechanical robustness. Operating temperature range from -65°C to 105°C. Compliant with ELV, REACH, and RoHS standards. Suitable for automotive safety, convenience, and dashboard systems.
Ideal for use in compact, advanced automotive electronic control systems. Explore more Automotive Connectors and electronic components on EnvMart for your industrial and automotive PCB connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 105°C.
This model features 24 contacts arranged in 2 rows.
The housing is made from polybutylene terephthalate (PBT).
It utilizes solder termination for secure electrical connections.
The height of this connector is 15.49 mm.
Yes, it complies with ELV, REACH, and RoHS standards.
The depth is 24.47 mm and the width is 31.8 mm.
This connector supports through hole mounting.
The minimum operating temperature is -65°C.
The contacts are made of brass and are plated with tin to prevent corrosion.
It is suitable for automotive safety systems, driver information systems, multimedia devices, airbag control units, and dashboard modules.
Yes, it includes board fixation screws for secure PCB mounting.
