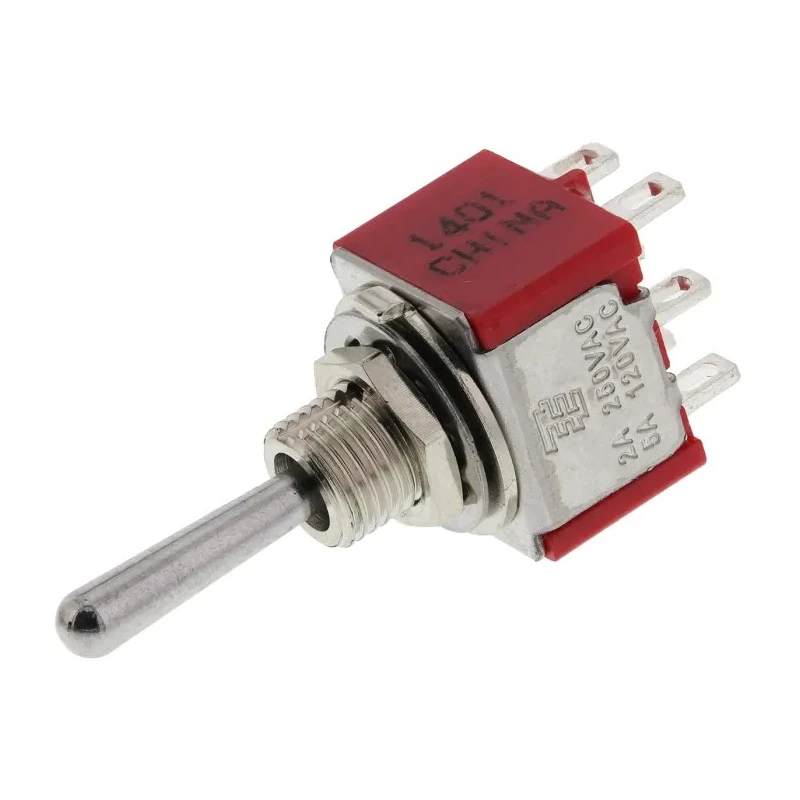

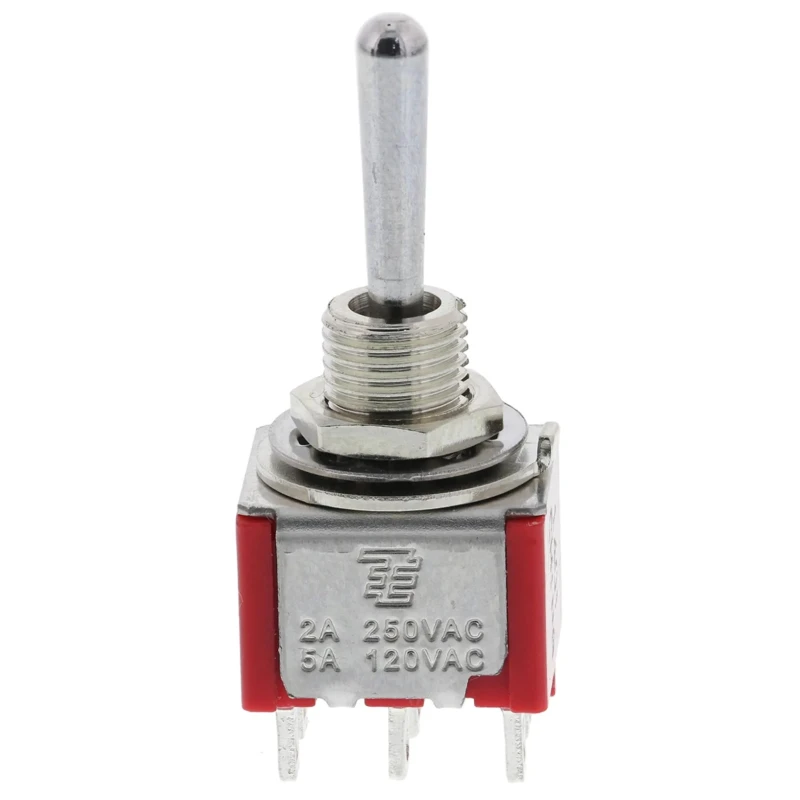

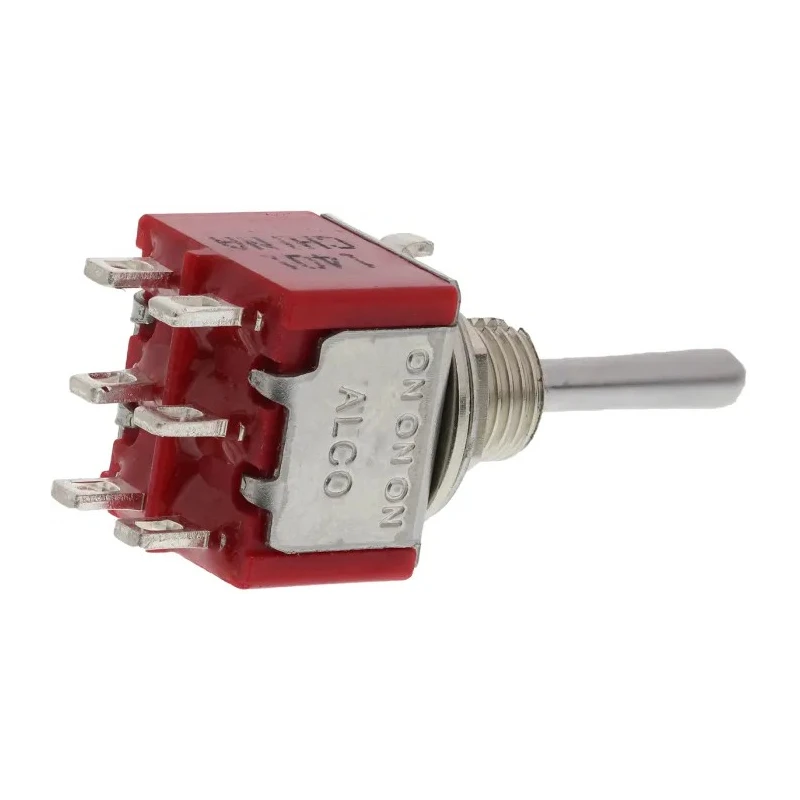

TE Connectivity Gemini A Series Panel Mount Toggle Switch, DPDT, On-On-On, Solder Terminal, 28 V dc, 125 V ac 3-1825139-4

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Gemini A Series Panel Mount Toggle Switch, DPDT, On-On-On, Solder Terminal, 28 V dc, 125 V ac 3-1825139-4

Name: TE Connectivity Gemini A Series Panel Mount Toggle Switch, DPDT, On-On-On, Solder Terminal, 28 V dc, 125 V ac 3-1825139-4
Brand: TE Connectivity
SKU: 356312
Price: 10.73 USD
Availability: InStock



Category Electrical Switches Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	0.35in
Length	0.5in
Width	0.45in
Mount Type	Panel Mount
Series	Gemini A
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-On-On
Minimum Operating Temperature	-30°C
Panel Cutout Size	6.35 mm
Terminal type	Solder
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	710-9860Brand: TE ConnectivityManufacturers Part No.: 3-1825139-4
Switch Operation	On-On-On
Actuator Length	12.19mm
Contact DC Voltage	28V dc
Switch Contact Current	5A
Contact AC Voltage	125V ac
Actuator Material	Phenolic

Key Features

Double Pole Double Throw (DPDT) switch configuration for versatile circuit control.
On-On-On switch operation allows three positions with break-before-make contacts.
Panel mount type with a panel cutout size of 6.35 mm for secure installation.
Solder terminal type ensuring reliable electrical connections.
Phenolic actuator material providing durability and reliable operation.
Epoxy sealed terminals for enhanced protection and longevity.
Stainless steel frame with brass tin plated solder support for corrosion resistance.
Operating temperature range from -30°C to 85°C suitable for varied environments.

Product Description

TE Connectivity 3-1825139-4 Panel Mount Toggle Switch is a Gemini A Series high-quality DPDT switch designed for industrial electrical and automation applications. It supports On-On-On operation, offering three distinct switch positions with break-before-make contact timing to prevent short circuits during switching.

Constructed with a durable phenolic actuator and epoxy sealed terminals, this toggle switch ensures reliable performance in harsh environments. It features a stainless steel frame and brass tin plated solder support enhancing corrosion resistance and mechanical strength.

This switch is rated for a contact current of 5A and can handle DC voltages up to 28 V and AC voltages up to 125 V, making it suitable for a wide range of electrical circuits and control panels. The panel mount design with a 6.35 mm cutout size allows for easy integration into machinery and control equipment.

Operating effectively within a temperature range from -30°C to 85°C, the toggle switch is suitable for numerous industrial, manufacturing, electrical automation, and HVAC applications.

Double Pole Double Throw (DPDT) switch configuration for dual circuit control. On-On-On switch operation providing multiple positions with safe contact timing. Panel mount with secure solder terminal connections. Corrosion-resistant stainless steel frame and brass tin plating.

Phenolic actuator assuring durability under frequent use. Epoxy sealed terminals for environmental protection. Compact size with precise actuator length of 12.19 mm. Gemini A series ensures industry-standard quality. RoHS compliant meeting environmental standards.

Rated for 5A current at 28 V dc and 125 V ac.

This TE Connectivity toggle switch is ideal for electrical panel assemblies, control systems, and industrial automation equipment requiring reliable and precise switching solutions. Browse the Electronics & Electricals category at EnvMart for more toggle switches and related components.

Explore more products in our Electrical Switches category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile circuit control.

The toggle switch operates effectively within a temperature range of -30°C to 85°C, making it suitable for various environments.

It is rated for a contact DC voltage of 28 V and an AC voltage of 125 V, accommodating a wide range of electrical circuits.

This model features solder terminals, ensuring reliable electrical connections for installation.

The panel mount design requires a cutout size of 6.35 mm for secure installation in control panels or machinery.

It has a phenolic actuator for durability, epoxy sealed terminals for protection, and a stainless steel frame with brass tin plated solder support for corrosion resistance.

The actuator length is 12.19 mm, providing precise operation for switching.

This toggle switch is rated for a contact current of 5A, suitable for various applications.

Yes, it is RoHS compliant, meeting environmental standards for hazardous substances.

It offers an On-On-On switch operation, allowing for three distinct positions with break-before-make contact timing.

The country of origin for this model is India, indicating its manufacturing location.

It is suitable for industrial, manufacturing, electrical automation, and HVAC applications requiring reliable switching solutions.
