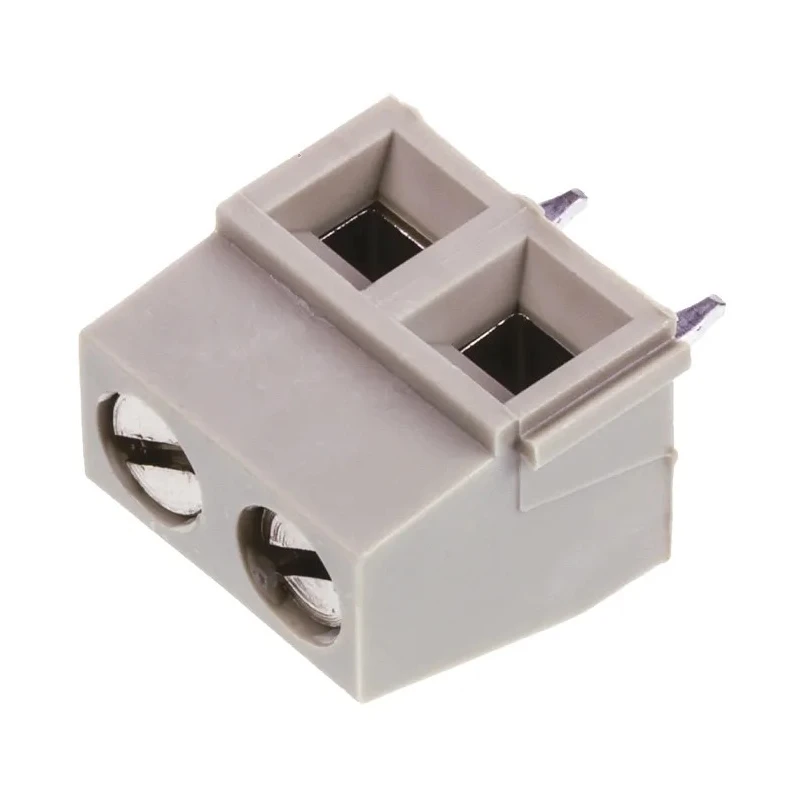

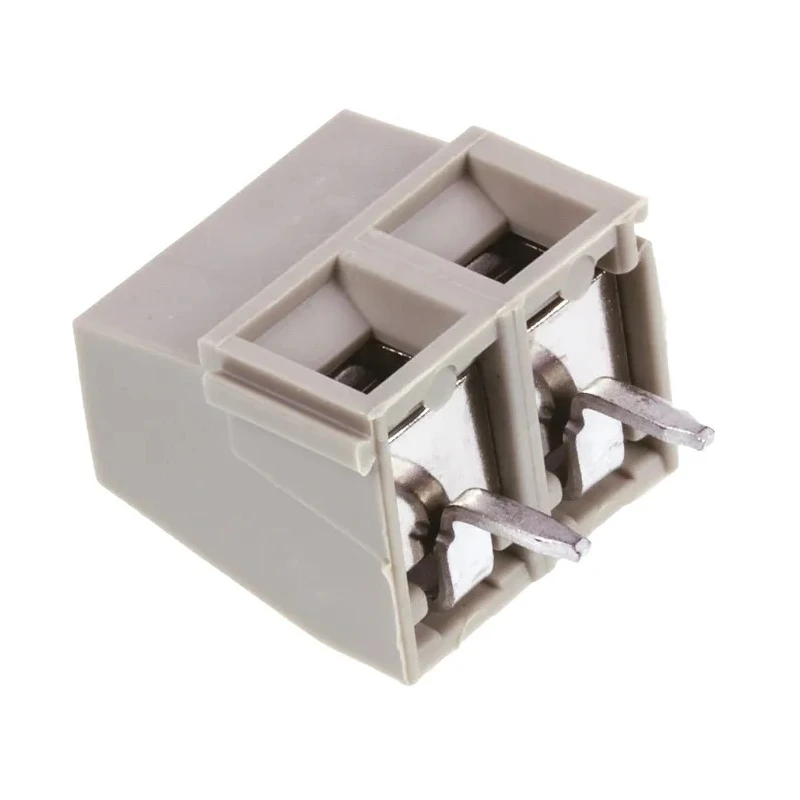

TE Connectivity Buchanan Series 2-Contact 5 mm Pitch 1 Row Male PCB Terminal Block 1546216-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Grey |
| Orientation | Straight |
| Current | 13.5A |
| Length | 10mm |
| Depth | 10mm |
| Width | 8.2mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-0093 Brand: [TE Connectivity](https://in.rsdelivers.com/brands/te-connectivity)Manufacturers Part No.: 1546216-2 |
| Number of Contacts | 2 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 1.4mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- Compact low-profile design ideal for PCB mounting.
- 5 mm centreline pitch ensures reliable connector spacing.
- M3 screw clamp terminals accept wire sizes from 30 to 16 AWG.
- Operating temperature range from -40°C to +110°C.
- Interlocking feature allows secure side stacking of multiple blocks.
- Grey polyamide housing provides excellent electrical insulation and durability.
- Rated for voltage up to 300V AC for varied electronic applications.
- Straight orientation suited for optimal PCB layout and wiring.
Product Description
TE Connectivity model 1546216-2 is a Buchanan Series PCB Terminal Block designed for industrial and electronic applications requiring reliable wire-to-board connections. This 2-contact terminal block features a 5 mm pitch and a single-row configuration with a male straight connector suitable for versatile PCB mounting.
Constructed from high-quality grey polyamide, this terminal block offers strong electrical insulation and mechanical durability. It supports a wire size range from 0.05 mm² (30 AWG) up to 1.4 mm² (16 AWG) with M3 screw clamp terminals, enabling secure and efficient wiring connections.
The terminal block is rated for a maximum current of 13.5A and withstands voltages up to 300V AC. Its operation temperature ranges from -40°C to +110°C, making it suitable for demanding environmental conditions. The 1546216-2 features an interlocking system that permits side stacking, enhancing modular assembly flexibility.
With compact dimensions of 10 mm length, 8.2 mm width, and 10 mm depth, this low-profile connector is ideal where space is limited on PCB assemblies. The product finds applications in power connectors, industrial automation systems, electronic equipment, and control panels.
Compact low-profile design ideal for PCB mounting. 5 mm centreline pitch ensures reliable connector spacing. M3 screw clamp terminals accept wire sizes from 30 to 16 AWG. Operating temperature range from -40°C to +110°C.
Interlocking feature allows secure side stacking of multiple blocks. Grey polyamide housing provides excellent electrical insulation and durability. Rated for voltage up to 300V AC for varied electronic applications. Straight orientation suited for optimal PCB layout and wiring.
Designed for industrial, electronic, and power connector use cases.
This TE Connectivity Buchanan series PCB Terminal Block provides a dependable solution for operators and engineers engaged in electronic manufacturing, power distribution, and HVAC systems. EnvMart offers this product to meet high standards of reliability and quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum voltage of 300V AC, suitable for various electronic applications.
This model has dimensions of 10 mm in length, 8.2 mm in width, and 10 mm in depth, making it compact for PCB assemblies.
It accepts wire sizes from 30 AWG (0.05 mm²) to 16 AWG (1.4 mm²) using M3 screw clamp terminals.
The operating temperature range is from -40°C to +110°C, making it suitable for demanding environments.
This terminal block features 2 contacts, designed for efficient wire-to-board connections.
It is rated for a maximum current of 13.5A, providing reliable performance in various applications.
Yes, it features an interlocking system that allows for secure side stacking of multiple blocks, enhancing modularity.
It has a pitch of 5 mm, ensuring reliable connector spacing for PCB mounting.
The terminal block has a straight orientation, which is suited for optimal PCB layout and wiring.
The country of origin for this terminal block is India.
This model belongs to the Buchanan Series, which is designed for reliable wire-to-board connections in various applications.
