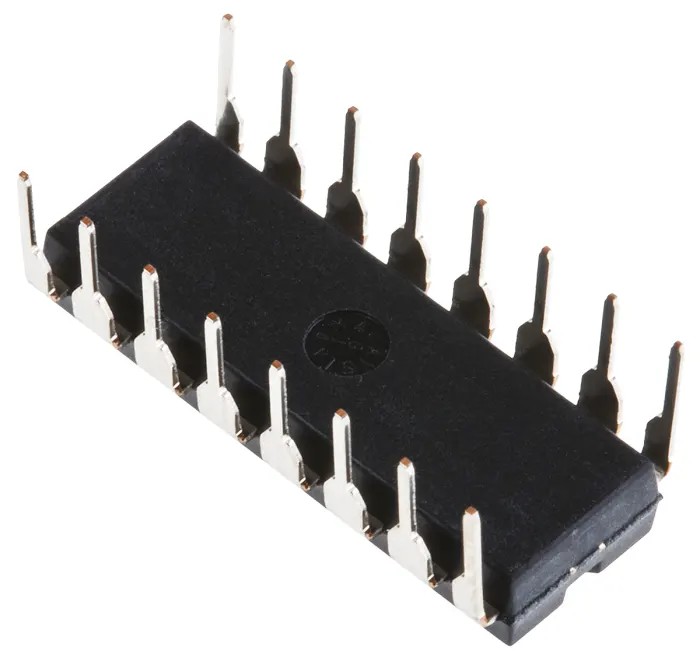

Texas Instruments Decoder 1MHz 16-Pin PDIP 4-Input SN74HCT138N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | SN74HCT138N |
| Mount Type | Through Hole |
| Compatibility | Input TTL, Output CMOS |
| Number of inputs | 4 |
| Series | SN |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 709-1983Brand: Texas InstrumentsManufacturers Part No.: SN74HCT138N |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | HCT |
| Logic Function | Decoder, Demultiplexer |
| Minimum Supply Voltage | 4.5V |
Key Features
- Operates at a minimum supply voltage of 4.5V and a maximum of 5.5V.
- Features a through-hole mount type with a PDIP package for easy PCB integration.
- Accepts input TTL signals and outputs CMOS logic levels.
- Functions as a decoder and demultiplexer suitable for digital circuits.
- Operates within a temperature range of -40°C to 85°C, ensuring robust performance.
- Part of the SN74HCT family, known for high-speed CMOS logic with low power consumption.
- No automotive standard certification; designed for general electronic component applications.
Product Description
Texas Instruments SN74HCT138N is a high-speed CMOS logic decoder designed for electronic and industrial applications requiring signal decoding and demultiplexing. Operating at 1MHz with a 4-input logic function, this device features a 16-pin PDIP through-hole package, facilitating straightforward mounting on printed circuit boards.
With a supply voltage range from 4.5V to 5.5V, it ensures compatibility with common logic families, accepting TTL inputs and providing CMOS outputs. The SN74HCT138N operates reliably in harsh environments, supporting operating temperatures from -40°C to 85°C, making it suitable for a variety of industrial, laboratory, and electronics manufacturing contexts.
This decoder belongs to the SN74 family of CMOS ICs, which utilize silicon gate CMOS technology to offer fast switching speeds comparable to LSTTL devices, but with lower power consumption. It is widely used in digital signal processing, multiplexing, and addressing functions within complex electronic systems.
Key features include its compact size with a length of 5 mm and height of 1.75 mm, as well as a standard 16-pin layout for integration compatibility. The through-hole PDIP package ensures easy assembly and repair.
Operates at 1MHz frequency with 4 input lines. Through hole mount design with PDIP packaging. Compatible with TTL input and CMOS output standards. Wide operating temperature and voltage range for versatile use. High-speed CMOS logic technology for reduced power consumption.
Compact size optimized for electronic assemblies. Ideal for use in industrial, laboratory, and manufacturing electronics. It is an excellent choice for projects requiring reliable decoding and demultiplexing components. Explore more semiconductor products in the electronics category at EnvMart.
Explore more products in our Decoder ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a frequency of 1MHz.
It operates with a supply voltage range from 4.5V to 5.5V.
This unit features a 16-pin PDIP package, designed for through-hole mounting.
It accepts TTL input signals and provides CMOS output levels.
It operates reliably within a temperature range of -40°C to 85°C.
The SN74HCT138N has 4 input lines.
This model has a height of 1.75 mm and a length of 5 mm.
It functions as both a decoder and a demultiplexer.
This model is part of the SN series of CMOS ICs.
The SN74HCT138N does not have any automotive standard certification.
It belongs to the HCT logic family, known for high-speed CMOS logic.
It is suitable for digital signal processing, multiplexing, and addressing functions in various electronic systems.
