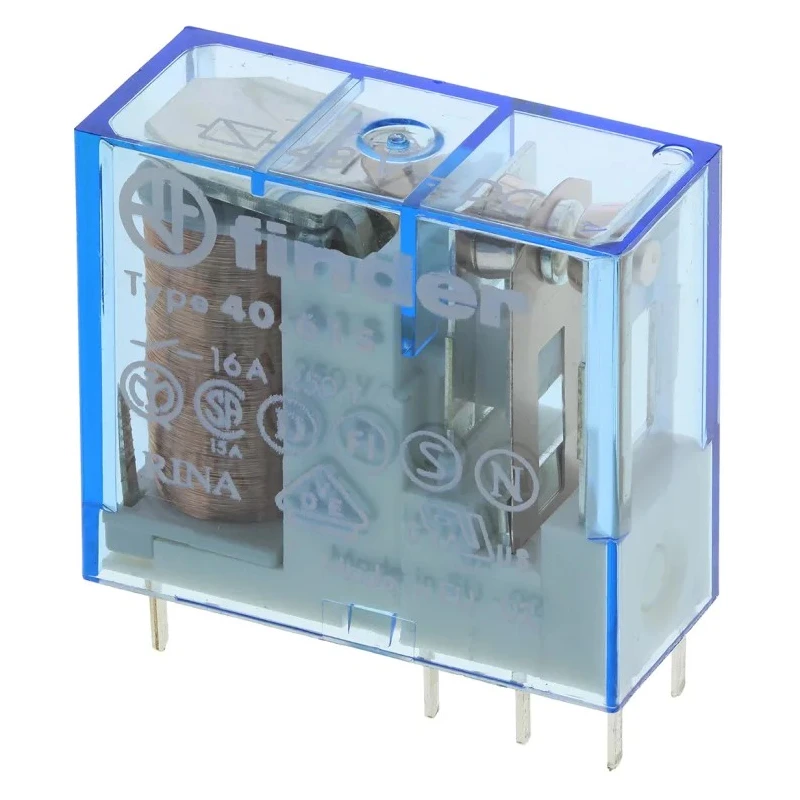

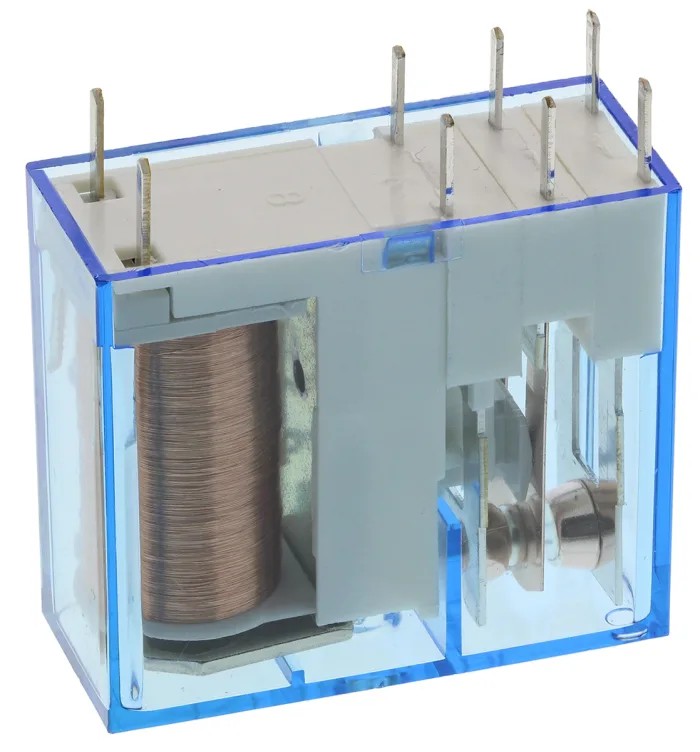

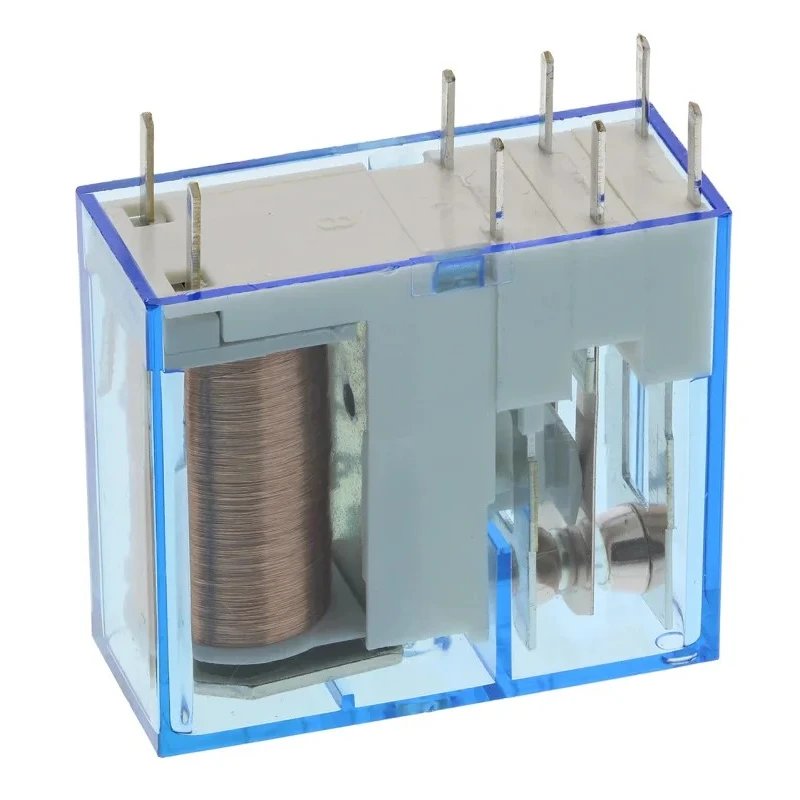

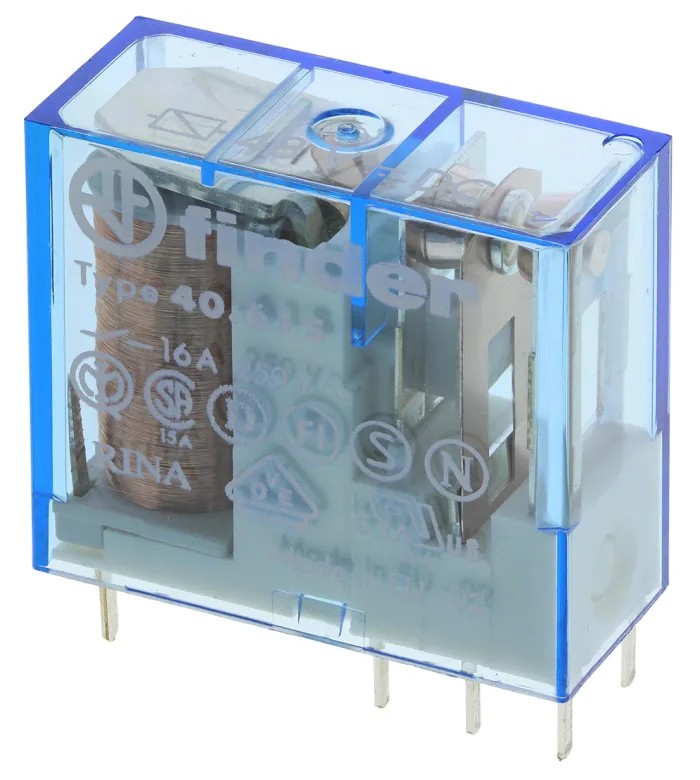

Finder PCB Power Relay 40 Series, 48V DC Coil, 16A Switching Current, SPDT, Silver Alloy Contacts 40.61.7.048.0000

Finder 40.61.7.048.0000 is a high-quality PCB Power Relay from the 40 Series, featuring a 48V DC coil voltage and SPDT contact configuration suitable for diverse electronic and automation applications. It offers a robust switching current of 16A and supports switching power of up to 4kVA, handling voltages as high as 400V AC.

This relay is designed for PCB mounting with through-hole terminals, ensuring secure and easy installation in compact spaces. Its compact form factor measures 29mm in length, 12.4mm in width, and 25mm in height.

The relay uses silver alloy contact material providing durability and excellent conductivity. It maintains high isolation of 6 kV between coil and contact for operational safety. The coil resistance is 4.8kΩ with a coil power consumption of 500mW.

Operational temperature ranges broadly from -40°C to +85°C, making it suitable for challenging environmental conditions. The relay is rated for an electrical life of 100,000 cycles and a mechanical life of up to 10 million cycles, assuring long-term reliability.

Common industrial applications include use in control panels for electrical distribution, vending machines, automated systems, door and gate openers, electronic circuit boards, and automation of blinds and shutters.

High isolation of 6 kV between coil and contacts ensures safety during operation. Supports switching voltages up to 400V AC and switching power up to 4kVA for varied electrical loads. Equipped with robust silver alloy contacts to provide reliable and durable switching performance.

Operates efficiently within a wide temperature range from -40°C to +85°C. Designed for easy PCB mounting with through-hole terminal type. Compact dimensions measuring 29mm length, 12.4mm width, and 25mm height optimize space usage.

Coil resistance is 4.8kΩ and coil power consumption is 500mW. Electrical life expectancy rated for 100,000 cycles; mechanical endurance up to 10 million cycles. Ideal for use in control panels, vending machines, automated systems, door and gate openers, electronic circuit boards, and industrial automation applications.
