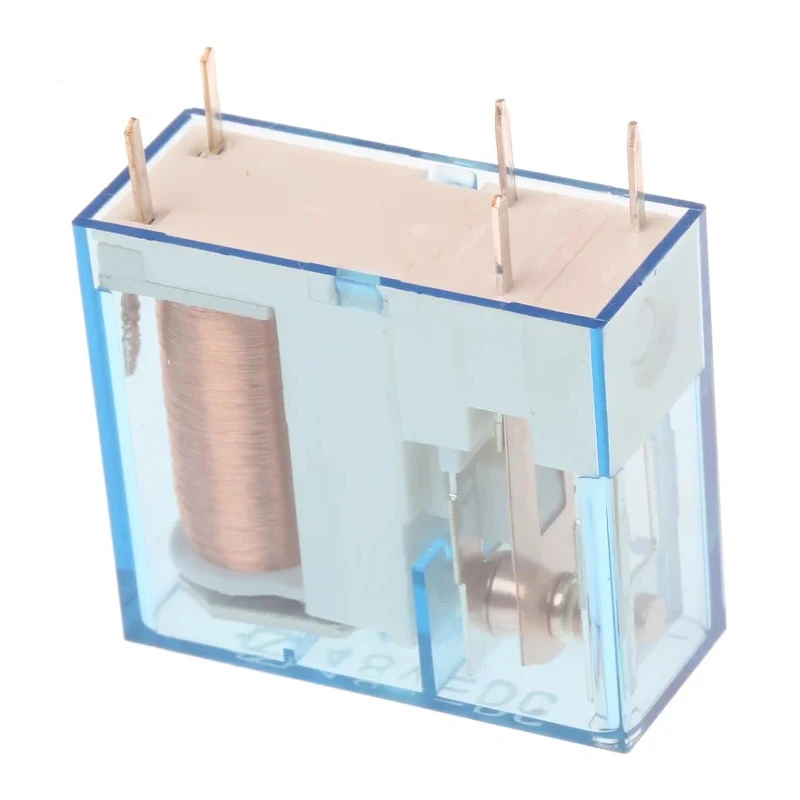

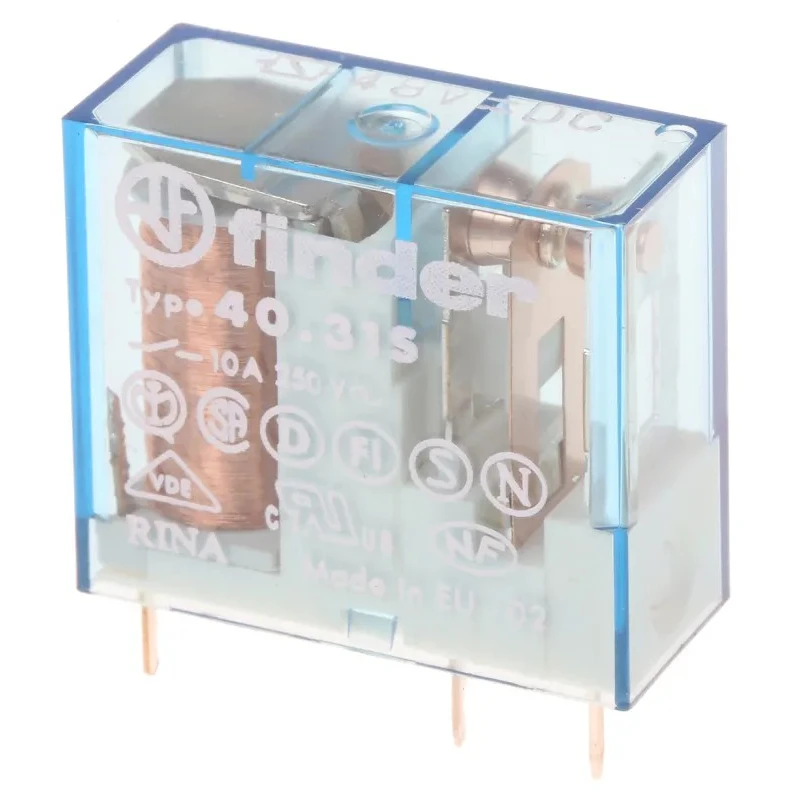

Finder PCB Power Relay 48V DC Coil 10A Switching Current SPDT 40.31.7.048.0000

Finder 40.31.7.048.0000 PCB Power Relay is a compact, high-performance electrical relay designed for PCB mounting applications requiring reliable switching operations. It operates with a coil voltage of 48V DC and supports a switching current of 10A, making it suitable for moderate power control tasks in automation and control systems.

This relay features a Single Pole Double Throw (SPDT) contact configuration, allowing flexible control over two circuits. Its compact footprint with dimensions of 29mm length, 12.4mm width, and 25mm height ensures easy integration into PCB layouts. Solder terminal types secure the relay firmly to the circuit board.

The coil resistance is rated at 4.8kΩ with a low power consumption of 500mW. It supports a maximum switching voltage of 400V AC and 125V DC, enabling the relay to handle a variety of AC and DC load applications safely. Operational temperature range from -40°C up to 85°C provides reliable performance in harsh industrial, medical, and commercial environments.

Constructed with silver alloy contacts, the relay ensures excellent electrical conductivity and long service life. The mechanical endurance of 10 million cycles significantly reduces maintenance needs and downtime in critical systems. The relay meets multiple international certifications including VDE, UL, EAC, CSA, and CCC, guaranteeing compliance with safety and quality standards.

This Finder power relay is ideal for use in medical and dental equipment, control panels for electrical distribution, toy automation, door and gate openers, and vending machines where reliable electrical switching is paramount.

Operates with coil voltage of 48V DC suitable for various PCB applications. Single Pole Double Throw (SPDT) contact configuration for versatile switching. Rated for 10A switching current for moderate electrical loads. Supports switching voltages up to 400V AC and 125V DC.

Compact dimensions of 29mm length, 12.4mm width, and 25mm height for PCB mounting. Features solder-type terminals optimized for secure PCB installation. Coil resistance of 4.8kΩ and coil power consumption of 500mW. Operational temperature range from -40°C to 85°C ensuring reliability in diverse environments.

Contact material made of silver alloy for enhanced conductivity and durability. Mechanical lifespan rated at 10 million cycles for long-term durability. Certified for safety and reliability with VDE, UL, EAC, CSA, and CCC approvals.

Explore the Electronics & Electricals category for more Power Relay solutions and other control and automation components on EnvMart.
