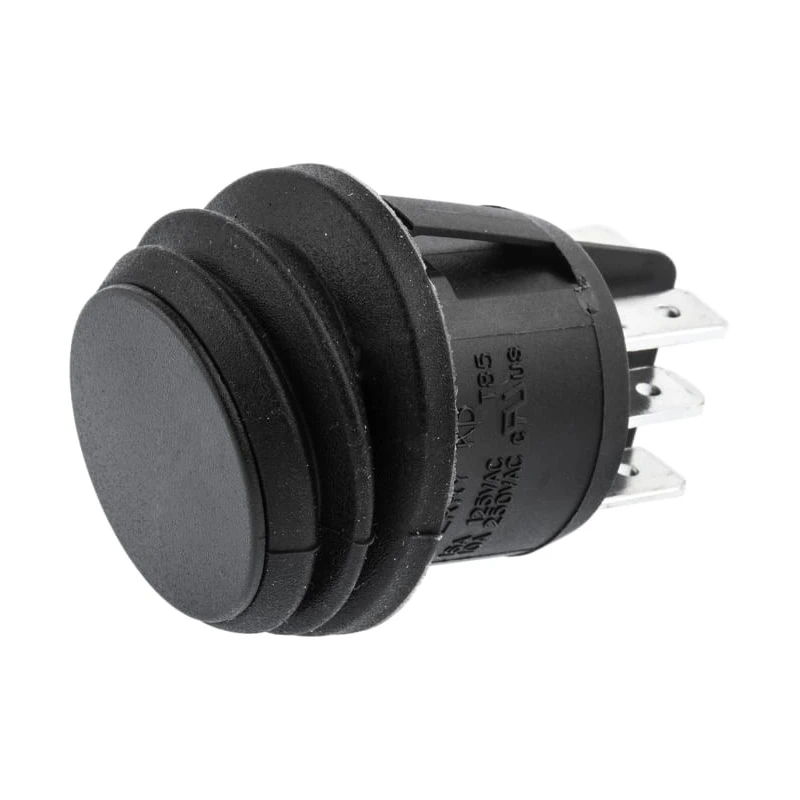

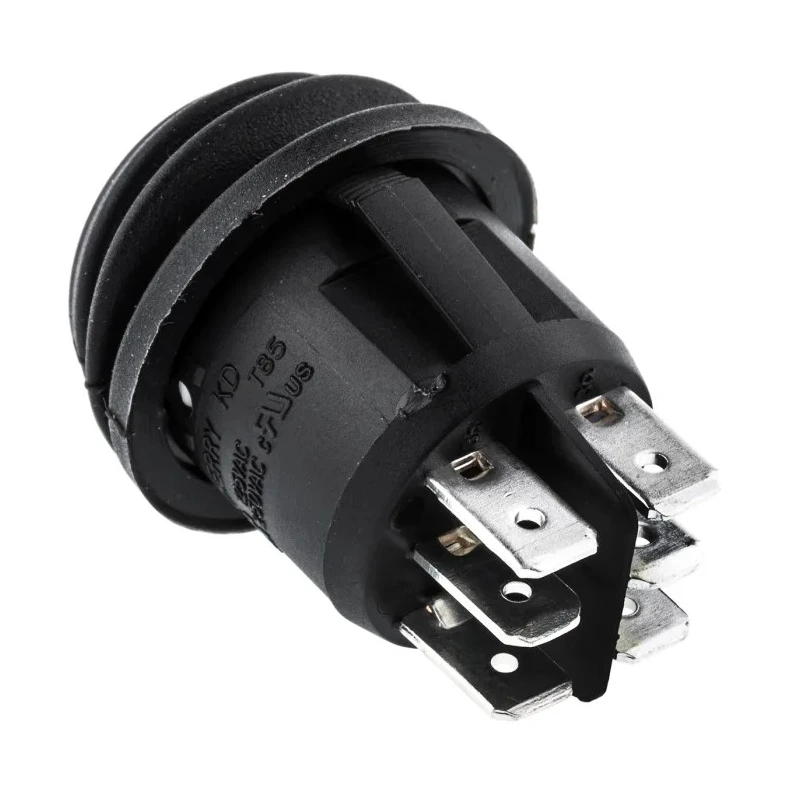

ZF Double Pole Double Throw (DPDT) On-On On-On Rocker Switch Panel Polyamide 66 Housing Panel Mount IP56 KDH3BNA1BBB
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |
| Model | KDH3BNA1BBB |
| IP Rating | IP56 |
| Mount Type | Panel |
| Housing Material | Polyamide 66 |
| Series | KD |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 20.2 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | VDE, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 706-4051Brand: ZFManufacturers Part No.: KDH3BNA1BBB |
| Switch Operation | On-On |
| Actuator Colour | Black |
| Contact DC Voltage | 28V dc |
| Actuator Style | Round |
| Switch Contact Current | 16A |
| Mechanical Life | 100,000 cycles |
| Legend | Blank |
| DC electrical life | 6,000 cycles |
Key Features
- This rocker switch has a Double Pole Double Throw (DPDT) contact configuration.
- The panel cutout size for mounting is 20.2 mm diameter.
- Switch contact current rating is 16A with a maximum DC voltage of 28V.
- The product has an IP56 rating ensuring high protection against dust and water ingress.
- The actuator is black, round style and is not illuminated.
- Operational temperature range is from -25°C to 85°C.
- Mechanical life expectancy is 100,000 cycles with electrical life of 6,000 cycles.
- Switch operation is On-On, providing dual position toggle control.
Product Description
ZF KDH3BNA1BBB is a robust Double Pole Double Throw (DPDT) rocker switch panel designed for reliable electrical switching in industrial and commercial applications. Featuring durable polyamide 66 housing, it is engineered for panel mounting with a precise 20.2 mm cutout, making it suitable for control panels and electrical enclosures.
This rocker switch supports a switch contact current of 16A at 28V DC, ensuring operational efficiency and safety. The switch’s On-On operation allows for two distinct active positions, ideal for switching dual circuits simultaneously.
Designed for harsh environments, the KDH3BNA1BBB rocker switch holds an IP56 ingress protection rating, providing excellent resistance against dust and powerful water jets, thereby guaranteeing extended operational life in demanding conditions.
The actuator is black, round in style, and non-illuminated, offering a clean, professional appearance for user interface panels. The switch’s operational temperature range spans from -25°C to 85°C suitable for varied ambient workplace environments.
Mechanically rated for 100,000 cycles and electrically for 6,000 cycles, this rocker switch assures long-term durability and reliability necessary for industrial automation systems, electrical panels, machinery controls, and HVAC systems.
Robust polyamide 66 housing for electrical insulation and durability. Panel cutout size of 20.2 mm diameter for standard mounting compatibility. 16A switch contact current and 28V DC rating for industrial control applications.
IP56 rating protects against dust ingress and water jets. Black round actuator, non-illuminated for clear tactile feedback. Mechanical and electrical life cycles ensure long-lasting performance. Standard compliance with VDE and UL certifications for safety assurance.
This DPDT Rocker Switch panel is ideal for automated electrical systems in industrial, commercial, construction, and HVAC sectors. It integrates seamlessly into electrical switch panels requiring durable and reliable switches with long mechanical life and high ingress protection.
Explore more ZF electrical switches and components with EnvMart for industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for dual circuit control.
The switch has a contact current rating of 16A, making it suitable for various industrial applications.
It can handle a maximum DC voltage of 28V, ensuring compatibility with various electrical systems.
The operational temperature range spans from -25°C to 85°C, suitable for diverse environmental conditions.
The required panel cutout size for mounting this rocker switch is 20.2 mm in diameter.
It has an IP56 rating, providing high protection against dust and water ingress.
The mechanical life expectancy is rated at 100,000 cycles, ensuring long-term usability.
This rocker switch uses quick connect terminals for easy installation and connectivity.
No, the actuator is black, round in style and is not illuminated, providing a clean appearance.
It complies with VDE and UL standards, ensuring safety and reliability in its applications.
The electrical life of this rocker switch is rated at 6,000 cycles, indicating its durability under electrical load.
This model is ideal for use in industrial automation systems, electrical panels, machinery controls, and HVAC systems.
