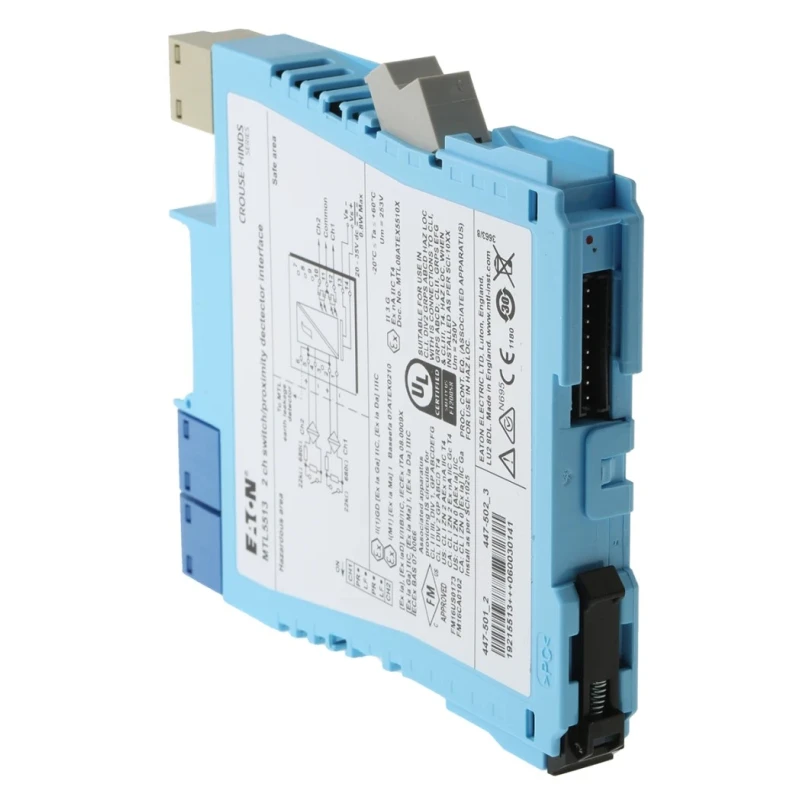

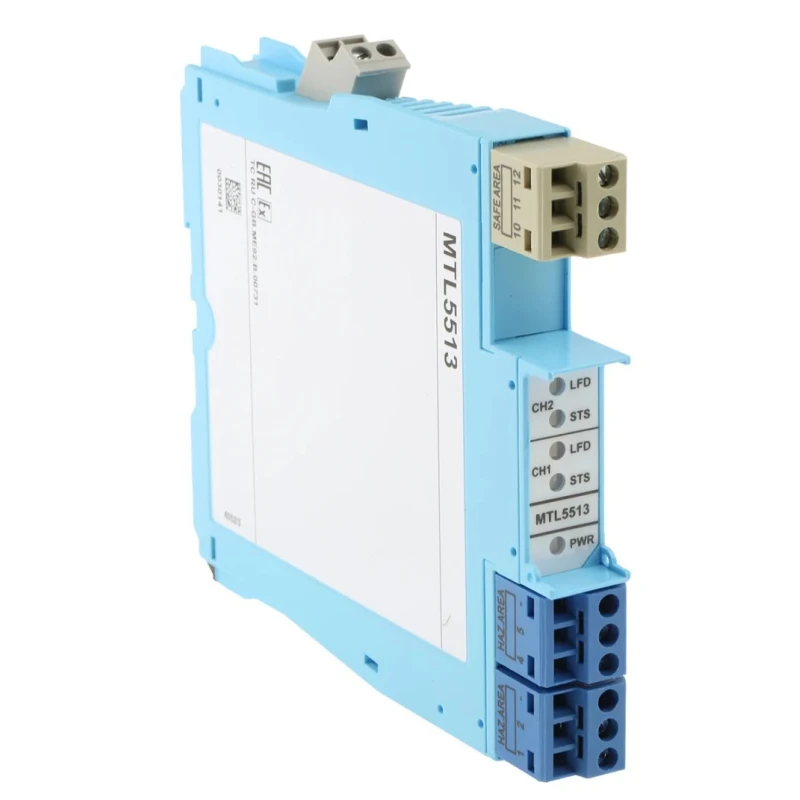

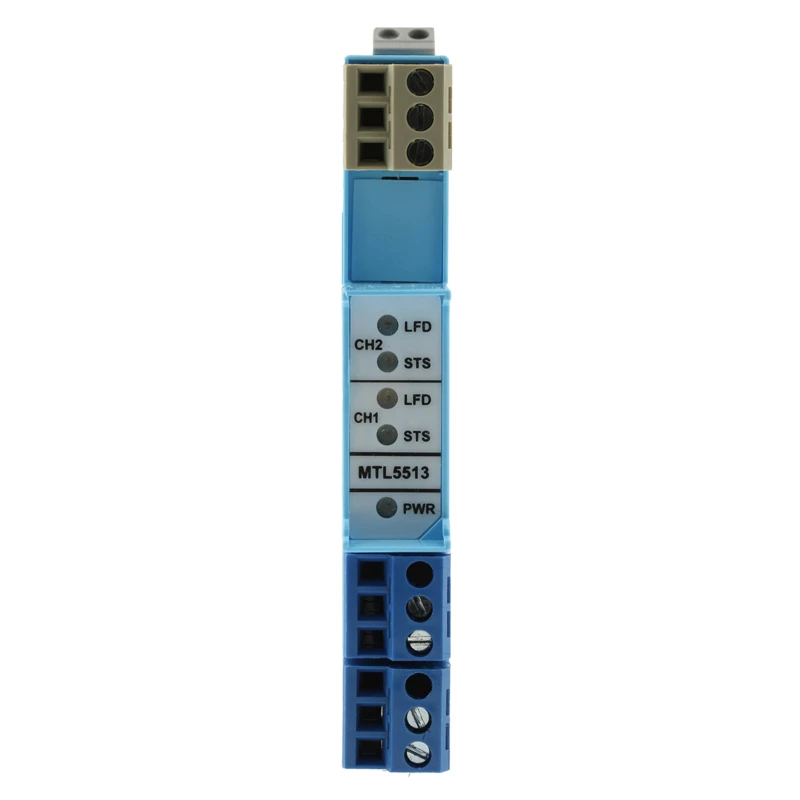

Eaton 2 Channel Galvanic Barrier Zener Barrier DIN Rail Mount ATEX Certified MTL5513/RS

Eaton MTL5513/RS 2 Channel Galvanic Barrier Zener Barrier is designed for intrinsic safety interface applications in hazardous industrial zones. This device regulates voltage and current supply, minimizing risk of electrical hazards and ensuring safe operation of connected switches or proximity sensors.

With dual channel capability, the unit supports simultaneous signal handling enhancing efficiency in instrumentation and control systems. The galvanic barrier design provides robust electrical isolation for signals, ensuring that hazardous energy does not propagate beyond safe limits.

Intended for DIN rail mounting, the MTL5513/RS is easy to install and maintain. It is backwards compatible with legacy MTL5000 series equipment, providing extended usability in existing systems. The device operates on a wide supply voltage range between 20 and 35 V DC and consumes a maximum current of 90 mA at 24 V, contributing to energy efficiency.

Safety and environmental endurance are emphasized with ATEX certification suitable for explosive atmospheres and ability to operate in temperatures from -20°C to 60°C. The IP54 rating protects against dust and water splashes. The built-in Line Fault Detection (LFD) functionality promptly alerts operators to electrical faults, improving system reliability and safety management.

This Galvanic Barrier is widely used in industrial automation, process control, instrumentation, and hazardous area installations requiring reliable intrinsic safety solutions. Use it to safeguard electrical signals in mining, chemical plants, oil and gas facilities, and other locations demanding compliance with strict explosion protection standards.

Supports two signal channels for enhanced efficiency and simultaneous signal isolation. Galvanic barrier type ensures electrical signal isolation and safety in hazardous areas. Designed for DIN rail mounting enabling quick and secure installation.

Certified with ATEX approval for use in explosive atmospheres. Operates within a supply voltage range of 20 to 35 V DC for versatile applications. Equipped with screw terminals providing secure and reliable electrical connections.

Features IP54 rating offering protection against dust ingress and water splashes. Maximum safety current of 14 mA and safety voltage of 10.5 V ensures safe operation. Operational temperature range from -20°C to 60°C supports diverse environmental conditions.

Includes Line Fault Detection (LFD) capability for quick fault notification enhancing safety monitoring. Explore more Zener and Galvanic Barriers from Eaton in the Signal Conditioners & Isolators category on EnvMart for your industrial safety and control needs.
