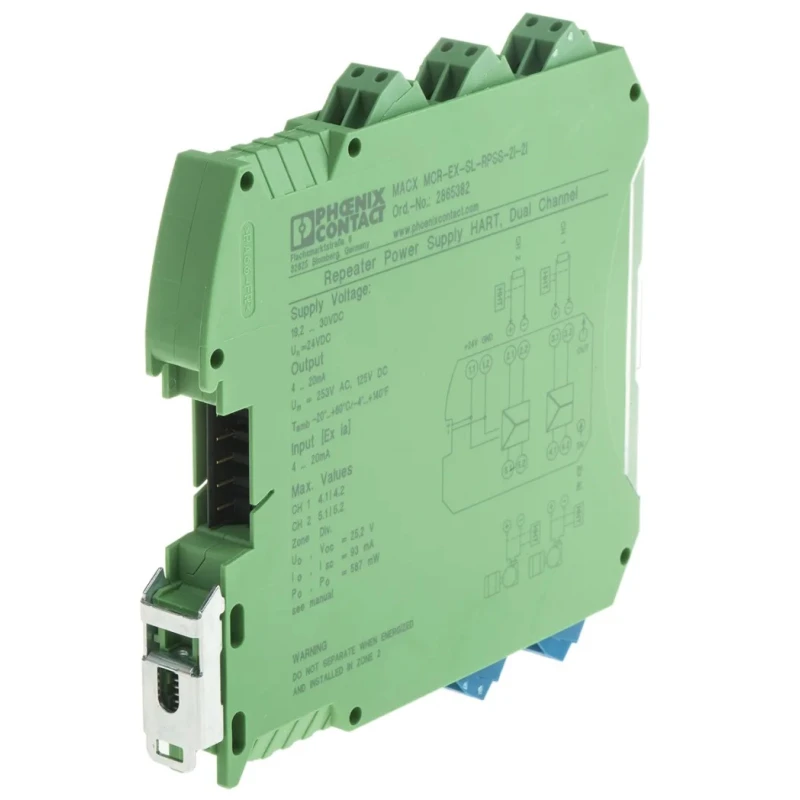

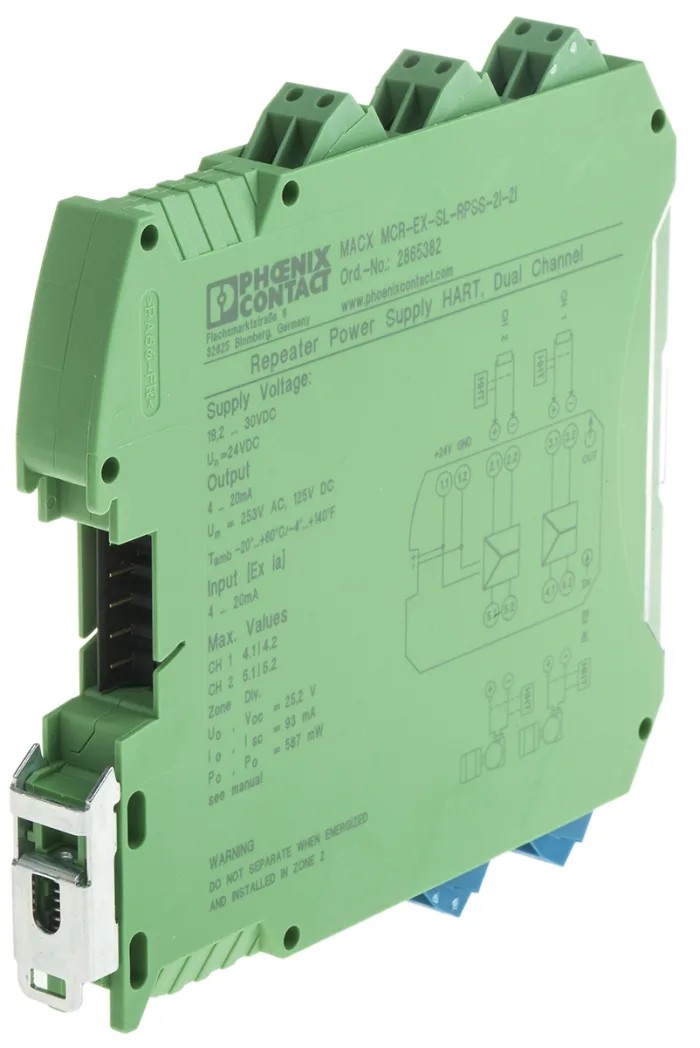

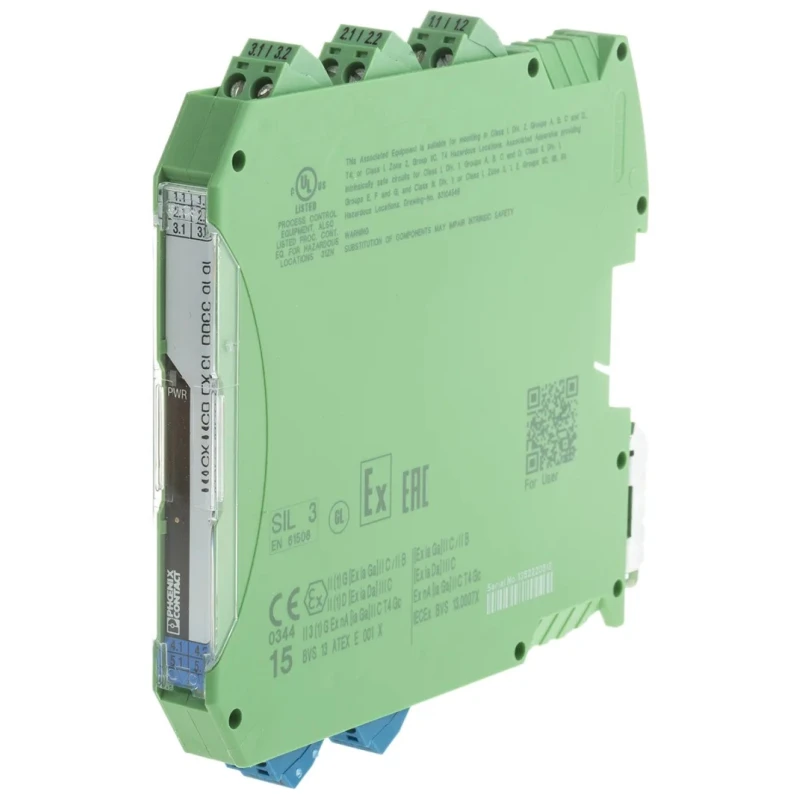

Phoenix Contact 2 Channel Galvanic Barrier, Analogue, ATEX, 24V DC, 20mA, DIN Rail Mount 2865382

Phoenix Contact 2865382 is a high-precision 2 Channel Galvanic Barrier equipped with analogue signal handling and certified for use in hazardous areas with ATEX certification. Designed for isolating signals in explosive environments, this device enables safe and reliable data acquisition and transmission in industrial and laboratory settings.

The galvanic barrier operates on a 24V DC supply voltage and is capable of handling a maximum safety current of 20mA. It is mounted on a DIN Rail, facilitating quick installation and integration into electrical panels and control cabinets. The device housing is constructed from durable polyamide (PA) material, which offers excellent tensile and compressive strength, ensuring long product life even under harsh operating conditions.

This galvanic barrier supports analogue signals and is compatible with HART (Highway Addressable Remote Transducer) devices, allowing it to transmit signals from field sensors to control systems such as programmable logic controllers (PLCs) with minimal transmission error below 0.05% of the final value, guaranteeing high accuracy.

The product includes a green LED indicator to display the supply voltage status, providing easy visual confirmation of proper wiring and operation. With an ingress protection rating of IP20, it is finger-safe and suitable for many industrial applications where operator safety is critical.

The device withstands operating temperatures from -20°C to +60°C, suitable for various manufacturing, water treatment, chemical, oil and gas, and HVAC industrial environments. It carries multiple international approvals including CE, IEC, WEEE, RoHS, ATEX, and UL, ensuring compliance with stringent safety and environmental standards.

Supports 2 channels for signal isolation and protection. Operates at 24 V DC supply voltage with a safety current of 20 mA. DIN Rail mount for easy installation in control panels. Polyamide housing provides high tensile and compressive strength for durability.

Wide operating temperature range from -20°C to 60°C for harsh environments. Compatible with HART devices for accurate signal transmission. Green LED indicates supply voltage status for operational verification. IP20 rated for finger-safe touch protection.

Minimal power dissipation ensures energy efficiency. Conforms to CE, IEC, WEEE, RoHS, ATEX, and UL standards.

This galvanic barrier is ideal for industrial automation, hazardous area instrumentation, process control, electrical signaling, and safety applications. It enhances system safety by isolating hazardous signals while maintaining signal integrity for accurate monitoring and control.
