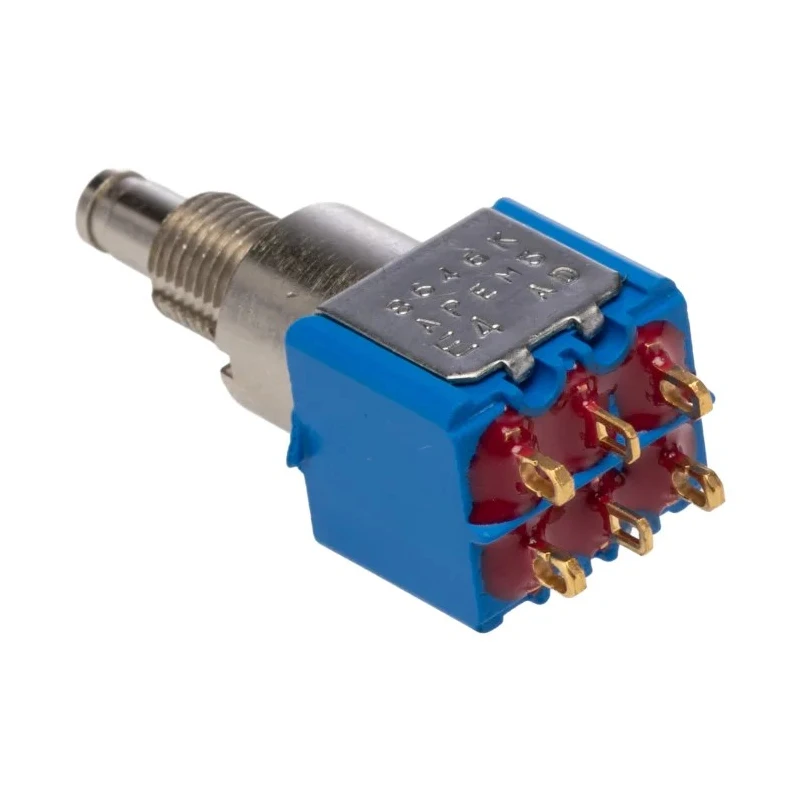

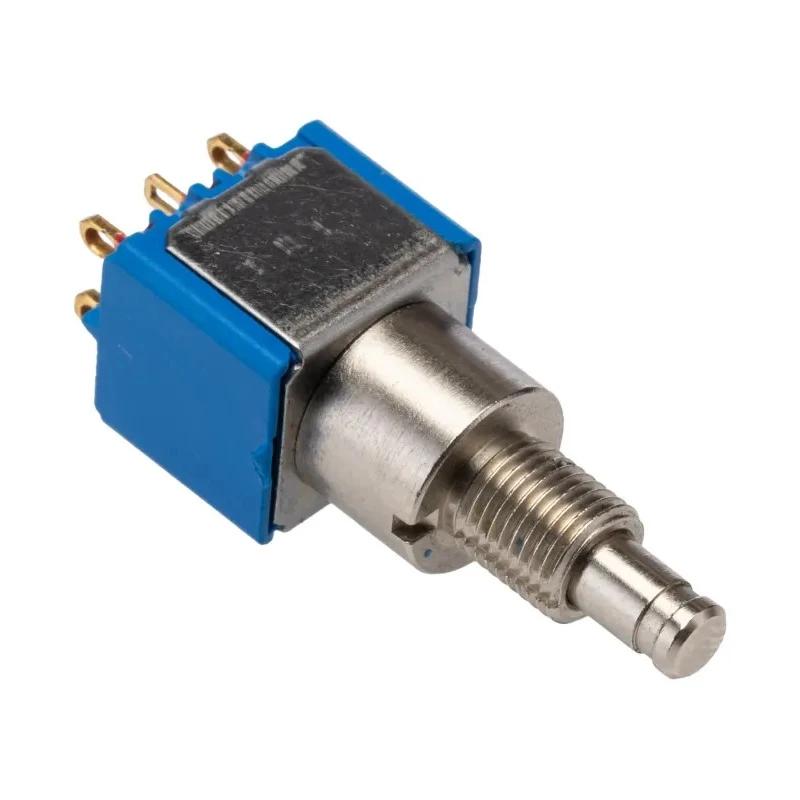

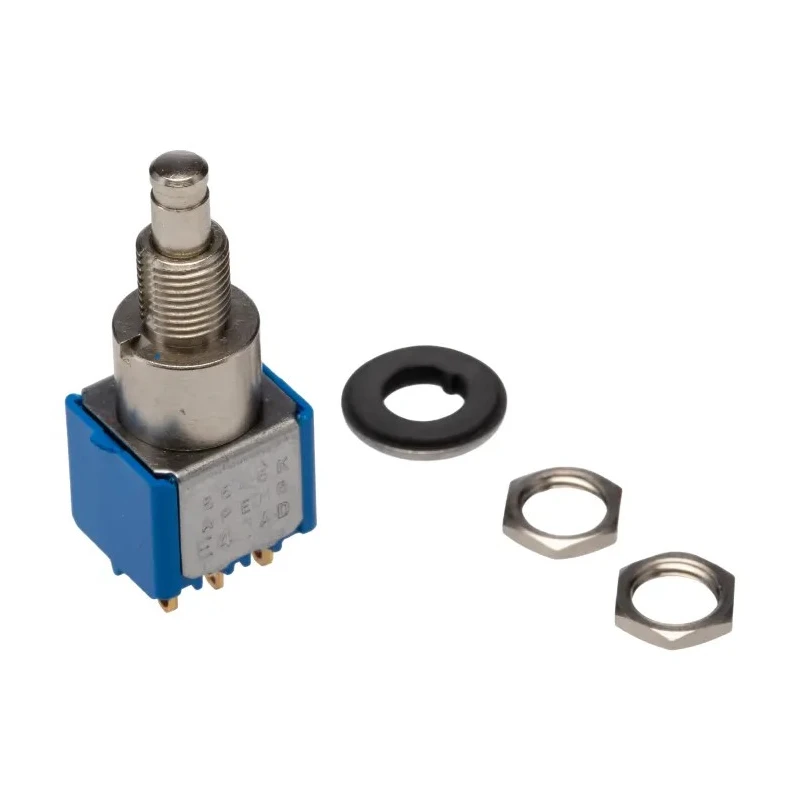

APEM 8000 Series Miniature Push Button Switch Latching Panel Mount DPDT 6.5 mm Cutout IP65 8646ADBK
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | 8646ADBK |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | 8000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Insulation resistance | 1000 MOhm @ 500 V dc |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 692-8434Brand: APEMManufacturers Part No.: 8646ADBK |
| Switch Operation | Latching |
| Actuator Style | Plunger |
| Switch Contact Current | 400mA |
| Electrical Life | 30000 cycles |
| Stock No | 692-8434 is a DPDT Latching switch |
Key Features
- Compact miniature switch with stainless steel body for reliability.
- Double Pole Double Throw (DPDT) contact configuration.
- Latching switch operation for stable control.
- Panel mount type with 6.5 mm cutout size for easy installation.
- IP65 ingress protection rating ensures water and dust resistance.
- Nickel plated brass actuator compatible with interchangeable colored caps.
- Electrical life of 30,000 cycles for long-term performance.
- Operating temperature range from -40°C to 85°C suitable for various environments.
Product Description
APEM 8646ADBK is a premium miniature push button switch from the 8000 Series, designed for industrial and commercial electrical applications. Featuring a robust stainless steel body and epoxy sealed terminals, this latching DPDT switch fits into a 6.5 mm panel cutout and offers IP65 ingress protection for resistance against dust and water.
The nickel plated brass plunger actuator supports interchangeable coloured caps to accommodate different signaling needs. With an electrical life rated to 30,000 cycles and a contact current rating of 400 mA, this switch provides reliable performance in demanding environments.
Operating at temperatures from -40°C up to 85°C, it is suitable for diverse industrial conditions including automation systems, control panels, and electronic equipment. The gold plated brass or silver terminal options offer excellent conductivity and durability.
Manufactured in France, the APEM 8000 Series push button switches comply with RoHS for environmental and safety standards. Optional sealing hoods and various actuator cap colors are also available for customization.
Compact miniature switch with stainless steel body for reliability. Double Pole Double Throw (DPDT) contact configuration. Latching switch operation for stable control. Panel mount type with 6.5 mm cutout size for easy installation.
IP65 ingress protection rating ensures water and dust resistance. Nickel plated brass actuator compatible with interchangeable colored caps. Electrical life of 30,000 cycles for long-term performance. Operating temperature range from -40°C to 85°C suitable for various environments.
Gold plated brass or silver terminals ensure reliable conductivity. Complies with RoHS standards, made in France.
This switch is an excellent choice for industrial automation, electrical panels, control systems, and other professional electrical installations requiring a reliable, durable Push Button Switch. Explore the full range of APEM 8000 Series switches for various configurations and functions within EnvMart's Electronics & Electricals categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile control options in electrical applications.
It has an IP65 ingress protection rating, ensuring resistance against dust and water, making it suitable for various environments.
The operating temperature range is from -40°C to 85°C, allowing it to function effectively in diverse industrial conditions.
The electrical life of this model is rated at 30,000 cycles, providing long-term performance for reliable operation.
This switch requires a panel cutout size of 6.5 mm for installation, making it suitable for compact applications.
It uses solder type terminals, ensuring a secure connection during installation.
This model operates as a latching switch, which provides stable control once activated.
This switch is manufactured in France, ensuring compliance with quality standards.
The actuator style is a plunger, and it is made from nickel plated brass, allowing for compatibility with interchangeable colored caps.
The switch has a contact current rating of 400 mA, suitable for various electrical applications.
It complies with RoHS standards, ensuring it meets environmental and safety regulations.
Yes, the nickel plated brass actuator is compatible with interchangeable colored caps, allowing for customization based on signaling needs.
