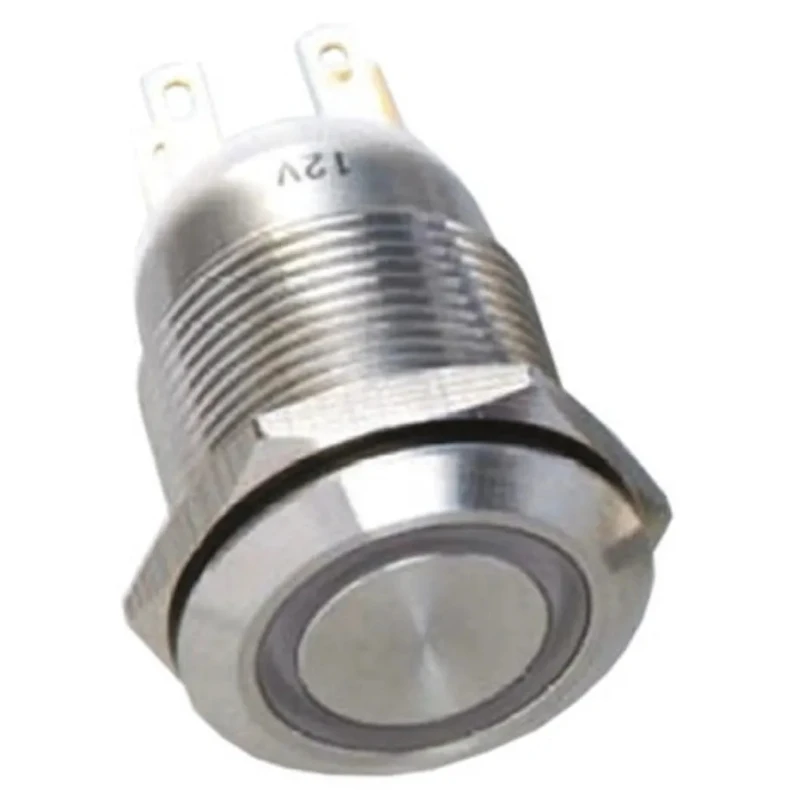

EOZ R Series Illuminated Push Button Switch Momentary Panel Mount 19 mm Cutout DPDT Yellow LED IP65 250 V ac R19FFSSPAGRY24

EOZ R19FFSSPAGRY24 Illuminated Push Button Switch is a high-quality momentary switch designed for panel mounting with a 19 mm cutout. It features a DPDT contact configuration and a yellow LED for illumination, delivering clear operational feedback. Rated at 250 V AC and 5A contact current, this switch is suitable for demanding industrial and commercial applications.

This Push Button Switch is vandal resistant, with an IK09 impact rating, providing protection against impacts equivalent to a 5 kg mass dropped from approximately 200 mm. Its IP65 rating ensures total protection against dust ingress and protection from low-pressure water jets from all directions, making it ideal for installation in exposed environments such as kiosks, ticket machines, and factory equipment.

The EOZ R series switch operates reliably in temperatures ranging from -20°C to 55°C and meets RoHS compliance standards for environmental safety. The panel mount type and solder terminal facilitate easy installation and secure connection in various electrical control panels.

Typical applications include access control systems, industrial machinery, factory automation, and any environment where durable, illuminated control switches are required. The robust design ensures long service life even in aggressive industrial or public space settings.

The switch is vandal resistant with IK09 impact protection equivalent to a 5 kg mass dropped from 200 mm height. Sealed to IP65 standards ensuring total dust protection and resistance to low-pressure water jets from all directions.

Illuminated button with yellow LED ring illumination indicating operational status. Operates at 250 V AC with a contact current rating of 5A for reliable electrical performance. Suitable for industrial, automation, machinery, factory equipment, and exposed public area applications.

Constructed for longevity and endurance in public spaces and aggressive industrial settings. Designed for panel mounting with solder terminal type and DPDT contact configuration. Operating temperature range from -20°C to 55°C.

Complies with RoHS standards ensuring environmentally safe manufacturing. Explore more EOZ switches and push button solutions in the Electronics & Electricals category at EnvMart.
