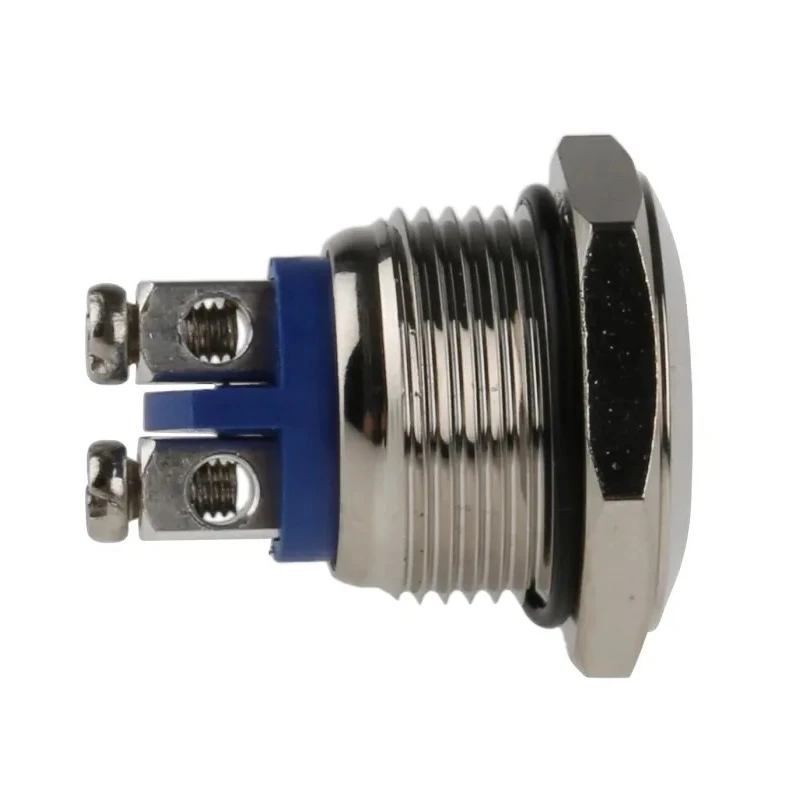

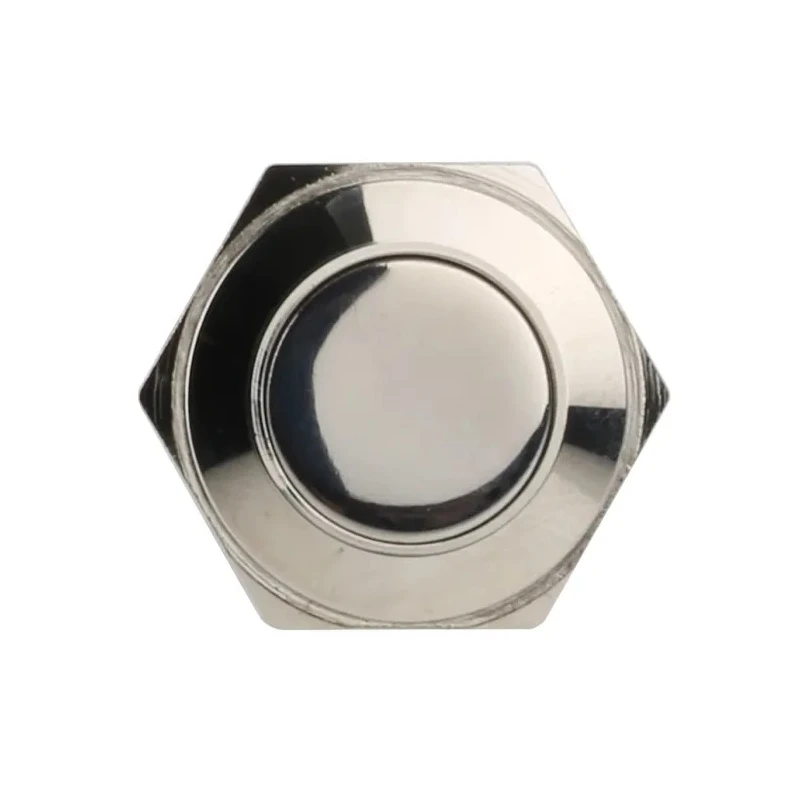

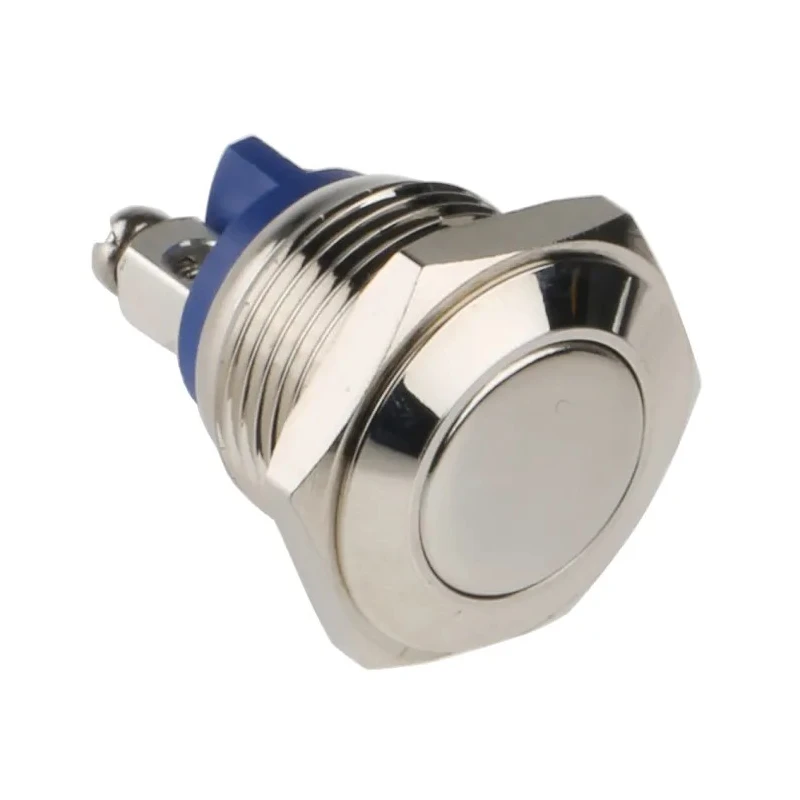

EOZ Push Button Switch Momentary Panel Mount 16.2 mm Cutout SPST IP65 48 V dc 250 V ac R16FFNSTAG

The EOZ R16FFNSTAG is a robust and reliable push button switch designed for panel mounting with a 16.2 mm cutout. This momentary switch features a silver-colored button actuator and a SPST contact configuration suitable for a variety of industrial and public applications. Its nickel-plated brass construction prevents corrosion and ensures durability in exposed and aggressive environments.

With a rated contact voltage of 48 V dc and 250 V ac and a contact current of 2A, this switch supports wide-ranging electrical control needs. The device operates efficiently across a temperature range of -20°C to 55°C, making it suitable for various climates.

The switch is sealed to IP65 standards, providing complete protection against dust ingress and resistance to low-pressure water jets from all directions, enhancing its suitability for outdoor or exposed settings. It also features vandal-resistant design with IK08 rating, meaning it can withstand impacts equivalent to 5 joules.

Designed as a momentary push button, the switch only completes the circuit during the moment it is pressed, returning to its default off position when released. The screw terminal connection facilitates secure and easy installation.

This EOZ R Series push button switch is ideal for use in access control systems, machinery and factory equipment, and public installations like kiosks or vending machines where durability and reliability are crucial.

The actuator color is silver and the switch operates momentarily. The switch is non-illuminated and uses a screw terminal connection. Rated for contact voltages of 48 V dc and 250 V ac with a current of 2A. Operates reliably within temperatures from -20°C to 55°C.

The IP65 rating ensures dust-tight construction and water jets protection. Features vandal resistance with IK08 shock resistance equivalent to 5 joules impact. Constructed with nickel-plated brass for corrosion protection.

Suitable for industrial and public applications such as machinery control and access systems. Momentary switch function means it only makes contact while pressed. Explore a broad range of EOZ Push Button Switches and other electrical components in the Switches & Sockets category at EnvMart.
