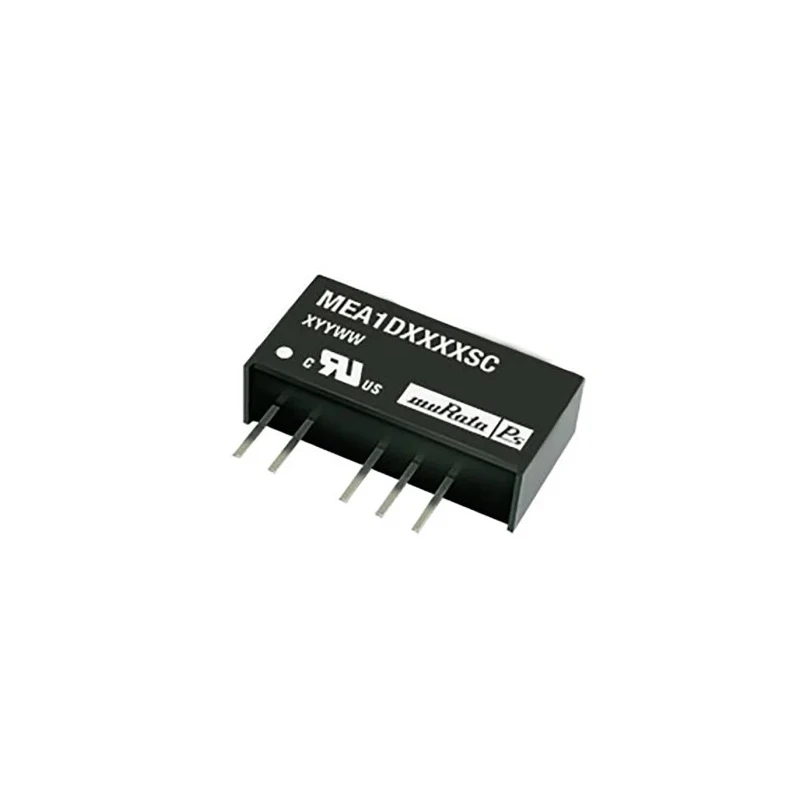

Murata Power Solutions DC/DC Converter, 5V DC Output, 100A, 13.2V DC Input, 1W Through Hole SIP Package MEA1

Murata Power Solutions MEA1D1205SC DC/DC Converter is a dual output, isolated 1 watt SIP7 package DC-DC converter designed for efficient power supply needs in electronic and industrial applications. It delivers a stable 5V DC output at a maximum of 100A with an input voltage range between 10.8V and 13.2V DC. Its compact SIP package with industry-standard pinout simplifies integration into printed circuit boards via through-hole mounting.

This converter achieves an efficiency rating up to 85%, supporting use in environments with operating temperatures ranging from -25°C to 85°C. The unit features galvanic isolation with an isolation voltage of 1kV DC, minimizing switching noise and improving overall circuit noise immunity. It is constructed with fully encapsulated toroidal magnetics and requires no external heatsinks or electrolytic capacitors, enhancing reliability and simplifying design.

The MEA1D1205SC model offers excellent regulation performance with output voltage ripple and noise limited to approximately 20mV peak-to-peak. It supports up to 2 output channels with nominal voltages of 5V DC and -5V DC respectively. The device has a mean time between failures (MTBF) calculated at over 3.3 million hours, reflecting Murata’s industry-leading standards.

This converter complies with RoHS environmental standards and features UL94V-0 rated package materials ensuring safety and durability. Its power density achieves approximately 0.85W/cm³ with no requirement for additional external components, making it ideal for applications in industrial controls, telecommunications, computing, and other embedded power systems requiring dual isolated power rails.

Dual output isolated DC/DC converter with 1 watt output power. High efficiency up to 85% to minimize power loss. Wide temperature range operation from -25°C to 85°C. Standard SIP7 form factor with through-hole mounting. 1kV DC galvanic isolation to reduce switching noise.

Fully encapsulated with toroidal magnetics for enhanced reliability. RoHS compliant and utilizes UL94V-0 rated materials. No electrolytic or tantalum capacitors required. MTBF exceeding 3.3 million hours ensures long-term durability.

Ideal for industrial, laboratory, telecom, and embedded power applications.
