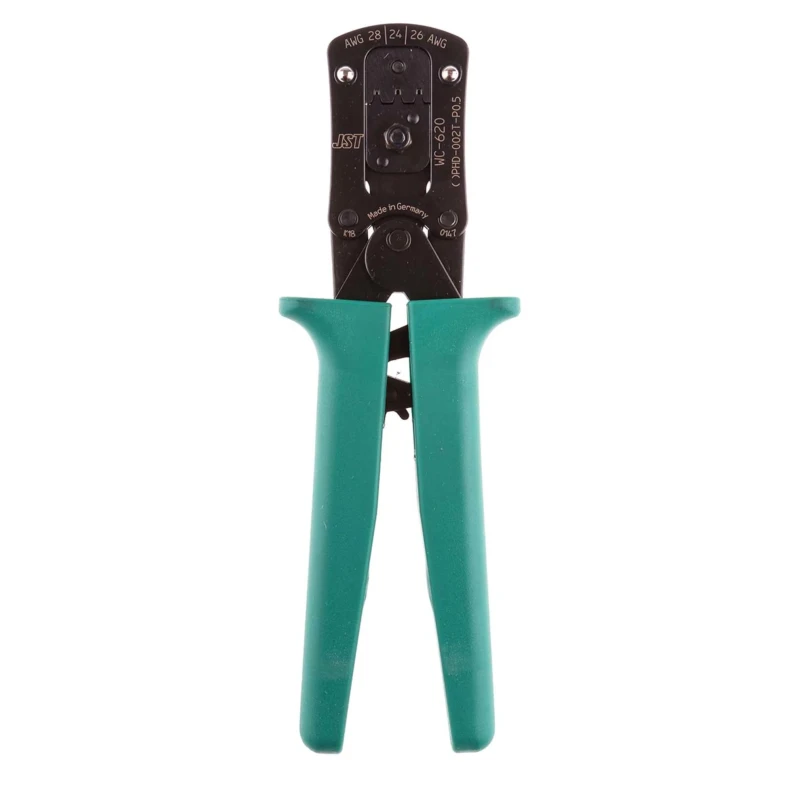

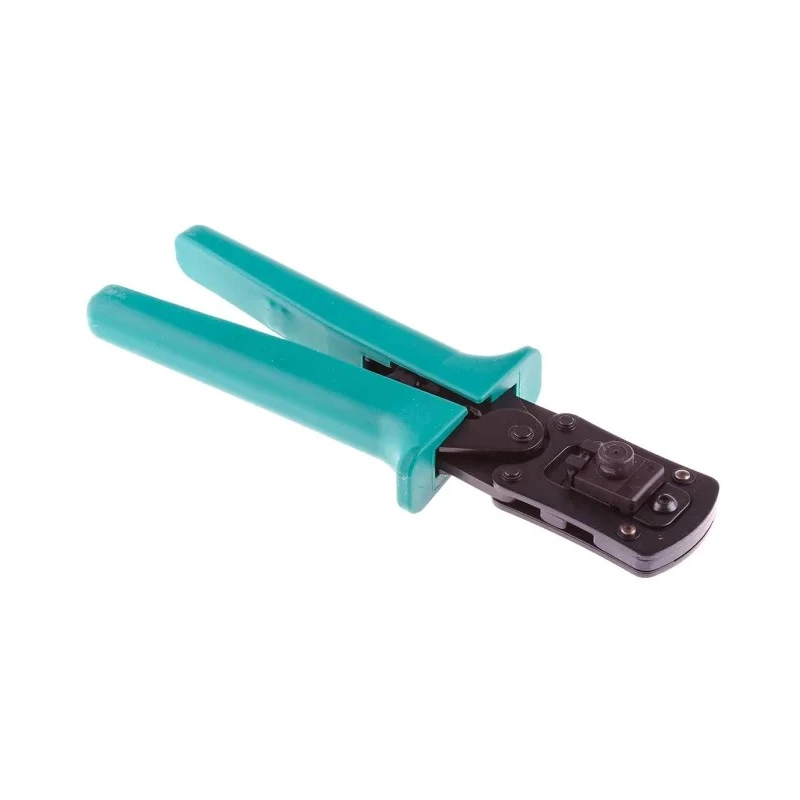

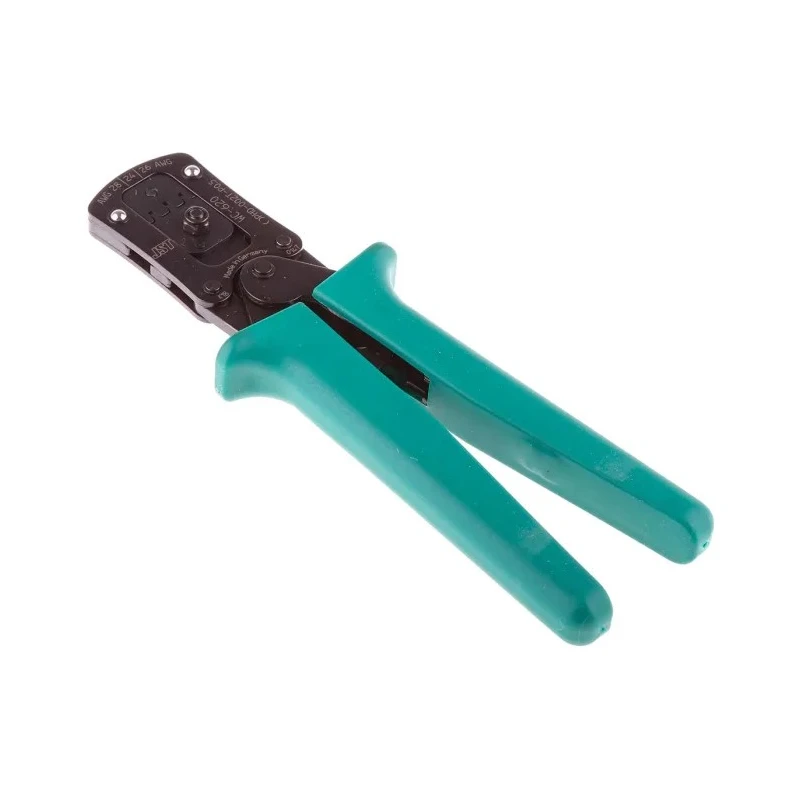

JST Hand Crimping Tool for SPHD Contacts WC-620

JST WC-620 hand crimping tool is a reliable, ergonomically designed tool for crimping SPHD terminals with precision. It features a pre-set ratchet mechanism enforcing a full and gas-tight crimp ensuring electrical integrity and strain relief against vibration and tension.

The tool incorporates a precision ground die assembly with cavities tailored for 24 AWG, 26 AWG, and 28 AWG wire sizes to ensure consistent crimps. Comfortable, soft grip handles provide ease of use during repetitive tasks in industrial, electrical, and manufacturing environments.

The ratchet mechanism locks the handles until the crimps are fully formed, preventing incomplete crimps and improving quality assurance. In case of terminal misplacement, the ratchet release lever allows easy correction.

An innovative flap style locator accurately positions the terminals during crimping, while a wire stop ensures correct wire insertion depth. The load on the tool can be easily adjusted to accommodate specific crimp requirements.

This tool is RoHS compliant and made in Germany, making it suitable for applications in industrial, manufacturing, electrical assembly, and laboratory settings where precision and high-quality crimps are essential.

Ergonomic handles with soft grip for comfortable use. Durable ratchet mechanism ensures complete and consistent crimps. Precision ground die assembly with three cavities for wire sizes 24 AWG, 26 AWG, and 28 AWG. Flap style locator and wire stop allow accurate terminal positioning.

Load adjustment allows easy reconfiguration for different crimps. Prevents partial crimps with locked ratchet until full cycle completion. Manufactured with high quality materials ensuring reliability and longevity.
