STMicroelectronics 8-Bit STM8 Microcontroller, 16 MHz, 1.024 kB RAM, 32 kB FLASH, 48-Pin LQFP Surface Mount STM8S105C6T6

STMicroelectronics STM8S105C6T6 is a reliable 8-bit microcontroller featuring the STM8 core architecture, designed for diverse embedded applications requiring efficient processing and versatile peripheral support.

This microcontroller operates at a maximum clock frequency of 16 MHz and integrates 1.024 kB of RAM alongside 32 kB of FLASH program memory, supporting the execution of complex embedded programs while maintaining low power consumption.

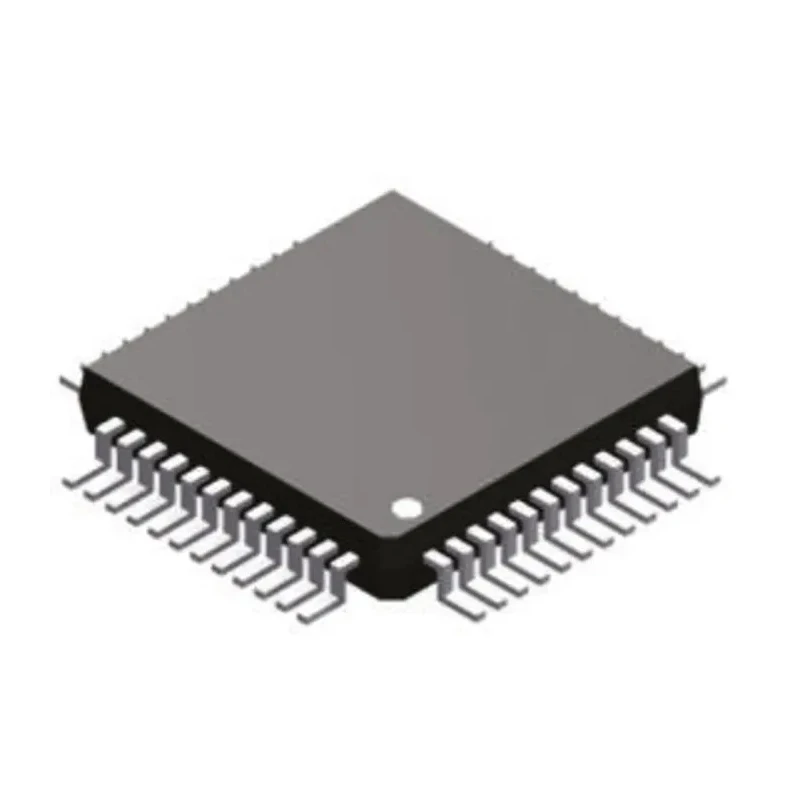

It features a 48-pin Low-profile Quad Flat Package (LQFP) for surface mounting, measuring 7.2 mm by 7.2 mm by 1.45 mm, enabling compact PCB designs suitable for industrial, commercial, and consumer electronics.

Peripheral integration includes 25 programmable input/output pins, 5 timers, 2 analogue comparators, and 10 channels of 10-bit analog-to-digital converters (ADCs), facilitating precise sensor readings and timed operations necessary in automation, measurement, and control systems.

The device supports SPI interface communication protocol for efficient and high-speed data transfer between microcontrollers and external devices. It supports operating voltages from 2 V minimum to 5.5 V maximum, with a maximum power dissipation of 1 watt, suitable for battery-powered or low-power applications.

The operating temperature range of -40°C to 85°C makes it suitable for industrial environments with wide temperature fluctuations. Designed with a CISC instruction set architecture, the STM8S105C6T6 provides ease of programming and compatibility with existing STM8 software development tools.

While not designed with automotive-level certifications, this microcontroller excels in general embedded system applications including consumer electronics, industrial controls, home automation, and IoT devices.

The microcontroller features an 8-bit STM8 core operating at a maximum clock frequency of 16 MHz. It includes 1.024 kB RAM and 32 kB FLASH program memory for efficient processing. Equipped with SPI interface for effective serial communication.

Provides 25 programmable I/Os and 5 timers for versatile applications. Built-in 2 analogue comparators and 10 x 10-bit ADC channels enhance signal processing capabilities. Operates within a supply voltage range of 2 V to 5.5 V, and power dissipation up to 1 W.

Suitable for industrial temperature ranges from -40°C to +85°C. Comes in a compact 48-pin Low-profile Quad Flat Package (LQFP) with dimensions 7.2 mm x 7.2 mm x 1.45 mm. Designed using a CISC instruction set architecture optimized for embedded systems.

Does not comply with automotive standards but is ideal for general purpose embedded designs. Explore the extensive range of STMicroelectronics Microcontrollers and embedded processing solutions available on EnvMart to find products tailored to your application needs.
