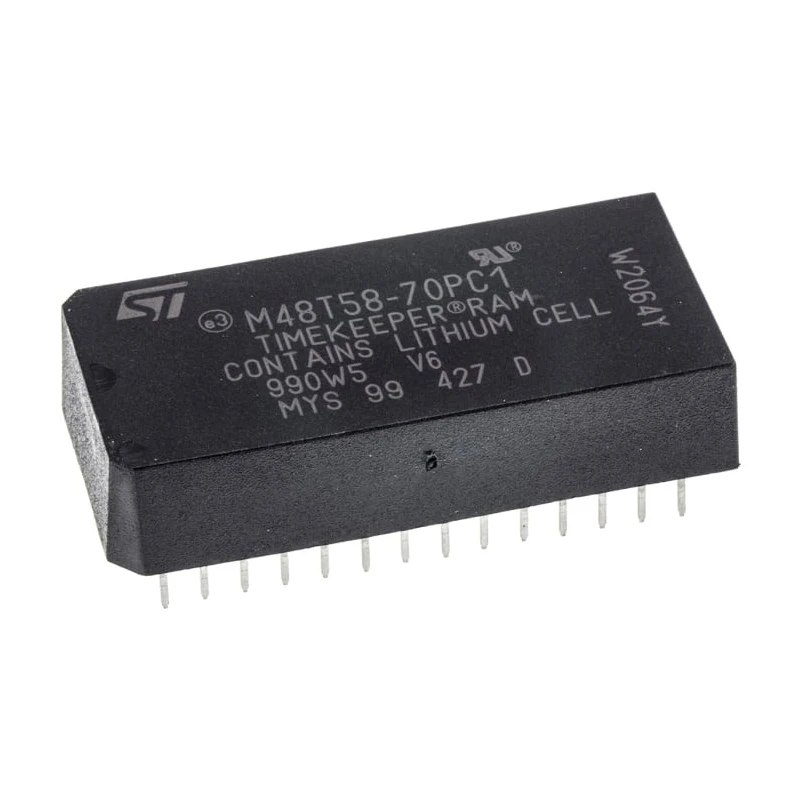

STMicroelectronics Real Time Clock 8.19kB Memory, DW:DM:M:Y Date Format, HH:MM:SS Time Format, 28-Pin PCDIP M48T58-70PC1

STMicroelectronics M48T58-70PC1 Real Time Clock is a high-performance semiconductor component featuring an 8.19kB RTC memory designed to provide accurate timekeeping and calendar functions. This real time clock integrates a parallel interface and a TIMEKEEPER® SRAM along with a quartz-based very-low-power oscillator to ensure precise time data such as hours, minutes, and seconds, as well as date information formatted as day, week, month, and year (DW:DM:M:Y).

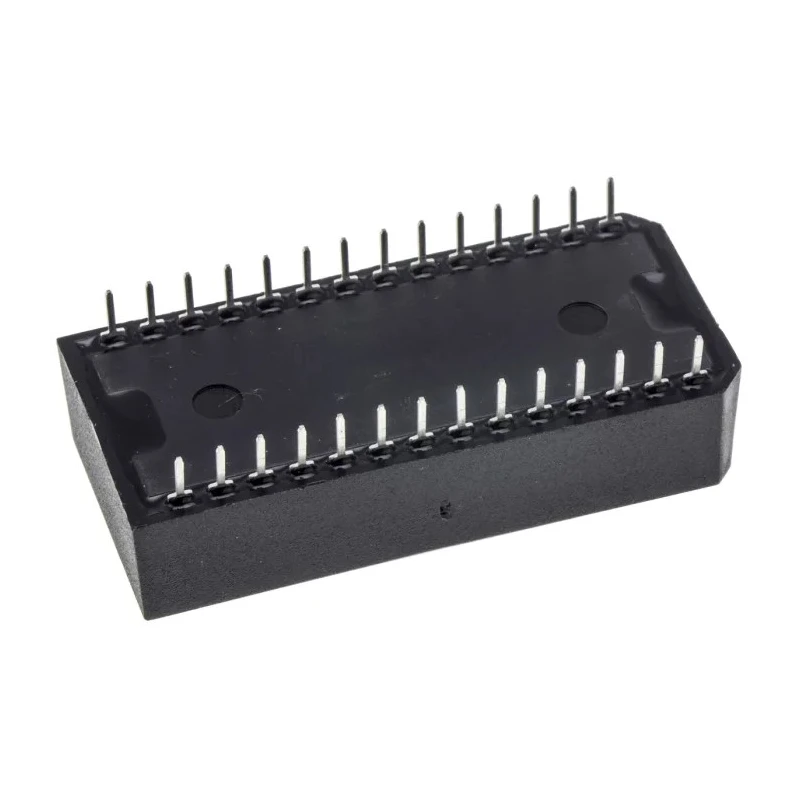

The device is housed in a 28-pin PCDIP through-hole package, making it suitable for integration into printed circuit boards requiring robust through-hole mounting. Its compact dimensions measuring 39.88 mm in length, 18.34 mm in width, and 8.89 mm in height, allow for space-efficient design implementations. The product operates reliably over a temperature range from 0°C to 70°C, aligning with typical industrial operating environments.

The M48T58 series is optimized for low power consumption with embedded battery and crystal oscillators to maintain timekeeping even during power interruptions. The supply voltage ranges from a minimum of 4.75 volts to a maximum of 5.5 volts, ensuring consistent performance in various electronic systems. With a pin count of 28, this component supports parallel interface communication facilitating fast and easy data access.

This real time clock is widely used in industrial electronics, embedded systems, and applications requiring accurate time and date tracking. It supports DW:DM:M:Y date format and HH:MM:SS time format for comprehensive temporal data handling. The product is compliant with standard semiconductor quality requirements but does not carry specific automotive or other specialized certifications.

Features a parallel interface enabling efficient data transfer. Includes embedded battery and crystal oscillator for uninterrupted timekeeping. Compact 28-pin PCDIP package designed for through-hole mounting. Operates within 0°C to 70°C temperature range suitable for industrial use.

Supplies voltage range from 4.75 V to 5.5 V ensuring stable operation. Reliable RTC memory size of 8.19kB for accurate data storage. Used in embedded systems requiring precise clock and calendar functions. New condition product guaranteeing long-term reliability.

Ideal for industrial, manufacturing, and electronic component applications. Explore more products in the Real Time Clock category at EnvMart for your specialized industrial and electronic component needs.
