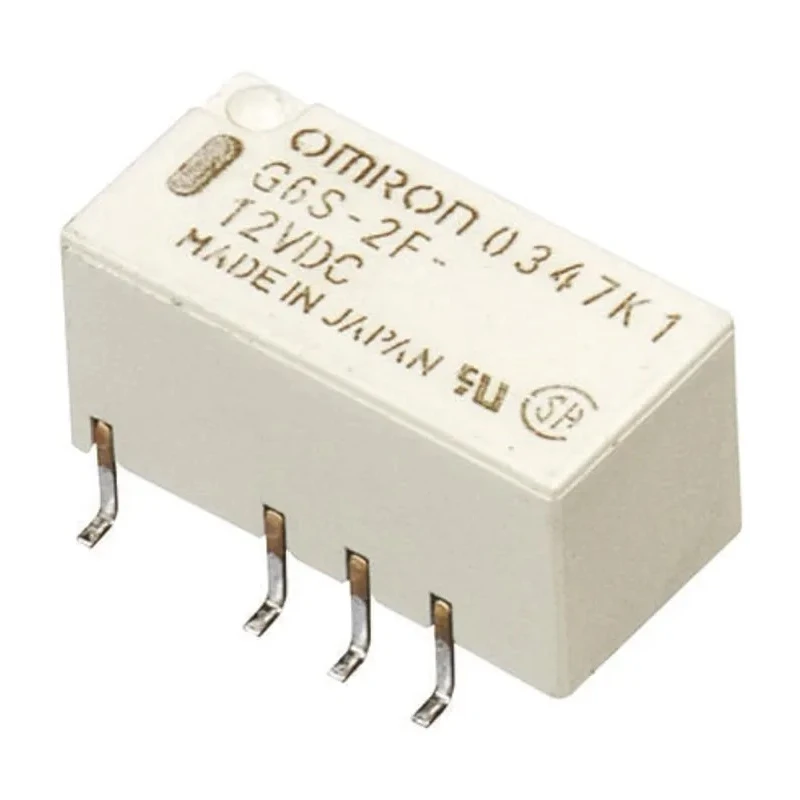

Omron Surface Signal Relay 24V DC Coil, 2A Switching Current, DPDT Contact Configuration G6S-2F DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9mm |
| Length | 15mm |
| Model | G6S-2F DC24 |
| Width | 7.5mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | HFD3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Coil Resistance | 2800Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| TE Connectivity Surface Signal Relay, 24V dc Coil, 2A, DPDTBrand | TE Connectivity |
| Omron PCB Mount Non-Latching Relay, 24V dc Coil, 2A Switching Current, DPDTBrand | Omron |
| RS PRO PCB Signal Relay, 24V dc Coil, 2A, DPDTBrand | RS PRO |
Key Features
- Fully sealed construction ensures reliable isolation and protection.
- High dielectric strength of 2000Vac between coil and contacts.
- Supports switching AC voltage up to 250V and DC voltage up to 220V.
- Operates in temperature range from -40°C to 85°C.

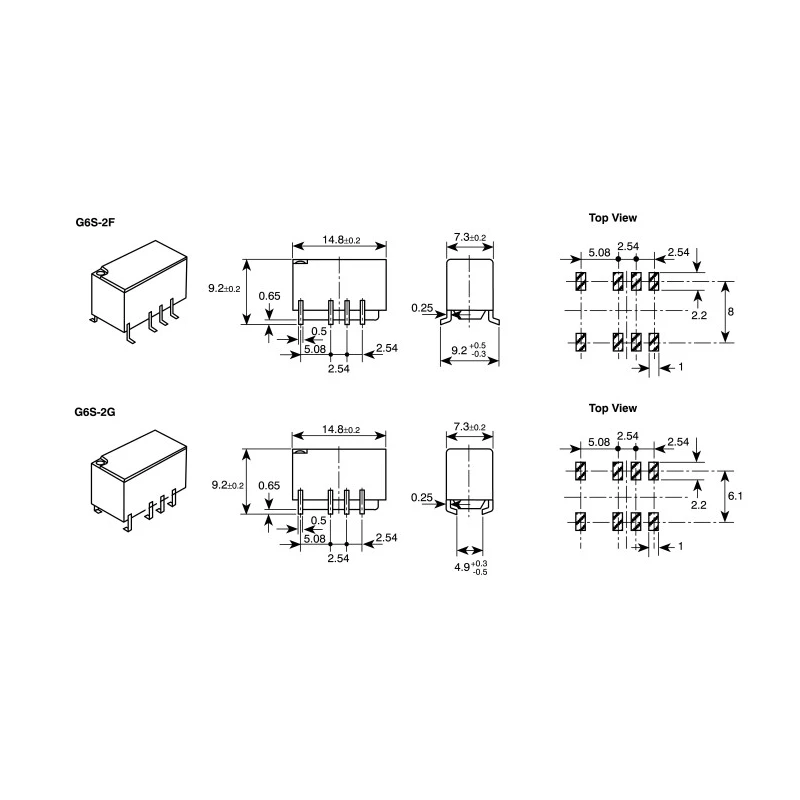

- Compact dimensions with 15mm length, 9mm height, and 7.5mm width.
- Silver alloy contact material enhances conductivity and durability.
- Coil resistance rated at 2800Ω and coil power consumption of 200mW.
- Surface mount terminal type suitable for PCB mounting.
Product Description
Omron G6S-2F DC24 is a reliable surface signal relay designed for industrial and electrical automation applications, operating with a 24V DC coil voltage and 2A switching current. The double-pole double-throw (DPDT) contact configuration enables versatile switching functionality for various control circuits. The relay incorporates a fully sealed construction that offers robust protection and excellent insulation properties.
It features a high dielectric strength of 2000Vac between coil and contacts and 1500Vac between contacts of different polarity, ensuring safety and preventing electrical faults under demanding conditions. The relay can switch AC voltages up to 250V and DC voltages up to 220V, making it suitable for a wide range of signaling and control tasks.
The device operates efficiently within an extended temperature range from -40°C to 85°C, suitable for harsh industrial environments. It is compact with dimensions of 15mm length, 9mm height, and 7.5mm width and is designed for surface mount PCB installation with silver alloy contacts for superior electrical performance and longevity.
This model consumes 200mW coil power with a coil resistance of 2800Ω and fulfills RoHS directives for environmental compliance. Its sealed design helps prevent contamination, enhancing operational reliability in manufacturing, HVAC, water treatment, and automation systems.
Fully sealed construction for enhanced durability. High dielectric strength and impulse withstand voltages for safety. Wide operating temperature range from -40°C to 85°C. Compact surface mount design fits modern PCB layouts.
Silver alloy contacts for reliable electrical connection. Compliant with RoHS environmental standards.
This Omron relay is widely used in industrial automation, manufacturing process control, HVAC systems, and water treatment applications, providing consistent signal switching and control reliability. Browse EnvMart's extensive Electronics & Electricals catalog to explore more Signal Relays and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It can handle a maximum switching current of 2A.
The relay has dimensions of 15mm in length, 9mm in height, and 7.5mm in width.
This model features a double-pole double-throw (DPDT) contact configuration.
It operates efficiently within a temperature range of -40°C to 85°C.
It can switch AC voltages up to 250V and DC voltages up to 220V.
This relay supports surface mount installation, making it suitable for PCB mounting.
The contacts are made of silver alloy, which enhances conductivity and durability.
The coil resistance is rated at 2800Ω.
The coil power consumption is 200mW.
Yes, it complies with RoHS environmental standards.
This relay is suitable for industrial automation, manufacturing process control, HVAC systems, and water treatment applications.
