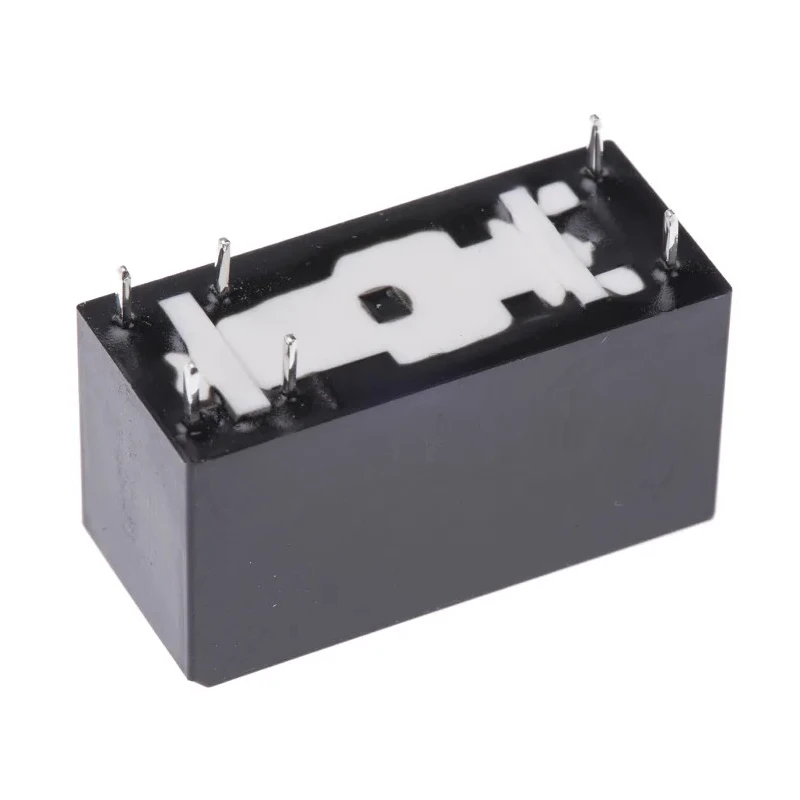

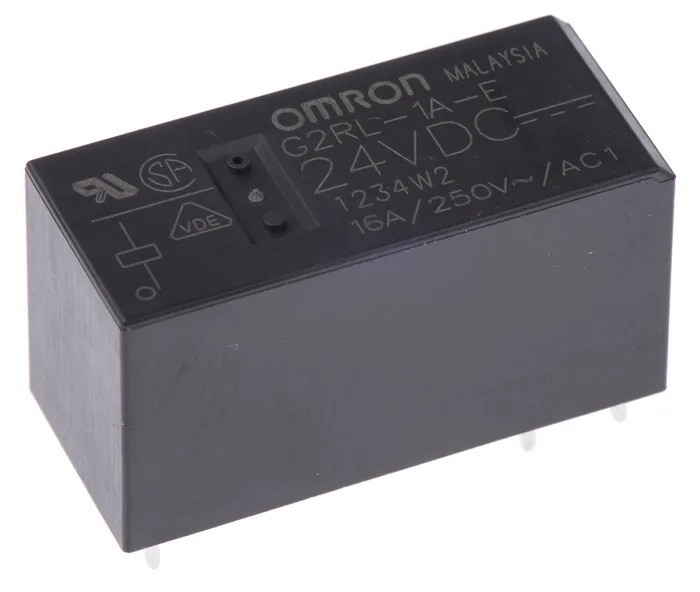

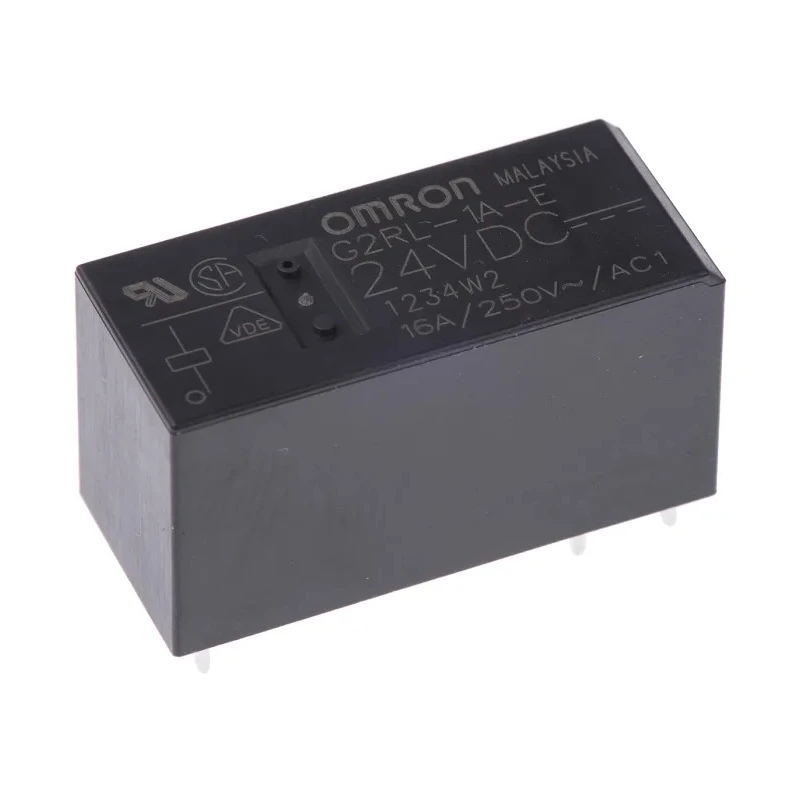

Omron PCB Power Relay 24V DC Coil 16A Switching Current SPST G2RL-1A-E DC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G2RL-1A-E DC24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | IEC/EN 60079-15, RoHS, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 400mW |
Key Features
- This power relay operates with a 24V DC coil voltage, providing reliable switching for control circuits.
- The contact configuration is Single Pole Single Throw (SPST), suitable for simple switching applications.
- The relay supports a high switching current capacity of up to 16 amperes for both AC and DC loads.
- Designed for PCB mount with through hole terminal type ensuring firm installation.
- Compact low-profile housing with dimensions 29mm length, 12.7mm width, and 15.7mm height facilitating PCB space optimization.
- Operates effectively in temperatures ranging from -40°C to 85°C, suitable for harsh industrial environments.
- Coil power consumption is low at 400mW with coil resistance rated at 1.4kΩ ensuring energy efficiency.
- Silver alloy contact material ensures low contact resistance of 100mΩ and high durability.
Product Description
Omron G2RL-1A-E DC24 PCB Power Relay features a 24V DC coil voltage and is engineered for reliable and efficient switching with a maximum switching current rating of 16A. It employs a Single Pole Single Throw (SPST) contact configuration, ideal for simple on/off switching mechanisms in a variety of electrical and automation systems.
This relay is designed for PCB mounting with through-hole terminals, providing stable mechanical and electrical connections. Its compact dimensions of 29mm length, 12.7mm width, and 15.7mm height enable easy integration into densely packed PCB layouts without compromising performance.
With an operating temperature range from -40°C to 85°C, it is suitable for use in harsh industrial environments. The low coil power consumption of 400mW and coil resistance of 1.4kΩ contribute to energy-efficient operation. The silver alloy contacts provide excellent conductivity and durability, maintaining low contact resistance at 100mΩ.
The G2RL series relay adheres to international standards including IEC/EN 60079-15 for hazardous environment applications, and is compliant with RoHS and VDE requirements ensuring quality and safety compliance.
Operates with 24V DC coil voltage for efficient control applications. Single Pole Single Throw (SPST) contacts suitable for simple switching. High switching current capability of 16A for robust load handling. Compact PCB mount design with through-hole terminals.
Durable silver alloy contacts with low contact resistance of 100mΩ. Wide temperature range from -40°C to 85°C suitable for industrial settings. Low coil power consumption of 400mW reducing energy use. Meets IEC/EN 60079-15, RoHS, and VDE standards ensuring reliability.
Dimensions: 29mm (L) x 12.7mm (W) x 15.7mm (H) enabling space saving. Applicable for electrical, industrial automation, and signal conditioning uses.
This power relay is an excellent choice for industrial automation, manufacturing control systems, HVAC controls, and other electrical switching applications where reliable and efficient operation is critical. The Omron brand assures product quality and engineering excellence.
Explore more power relay options and related components from Omron and other leading brands in the Electronics & Electricals category at EnvMart.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 16A, suitable for both AC and DC loads.
This relay operates with a coil voltage of 24V DC.
The dimensions of this unit are 29mm in length, 12.7mm in width, and 15.7mm in height.
It features a Single Pole Single Throw (SPST) contact configuration, ideal for simple switching applications.
The relay operates effectively in temperatures ranging from -40°C to 85°C, making it suitable for harsh environments.
The coil power consumption is low at 400mW, contributing to energy efficiency.
It is designed for PCB mounting with through-hole terminals for stable connections.
The contacts are made of silver alloy, which ensures low contact resistance of 100mΩ.
It adheres to international standards including IEC/EN 60079-15, RoHS, and VDE requirements.
The coil resistance is rated at 1.4kΩ.
The maximum switching voltage is 300V DC and 440V AC.
This model is applicable for electrical, industrial automation, and signal conditioning uses.
