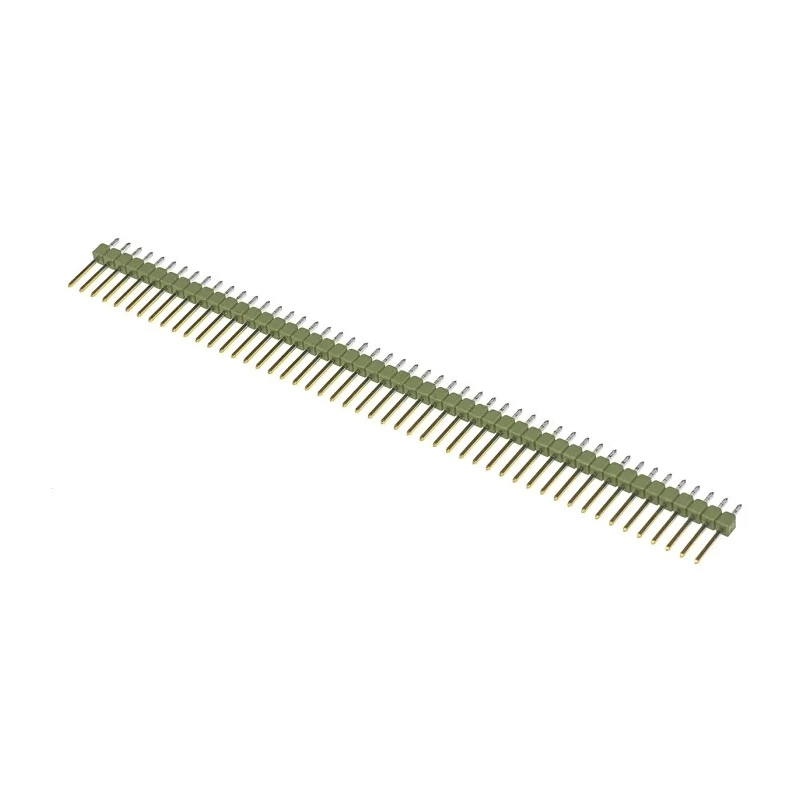

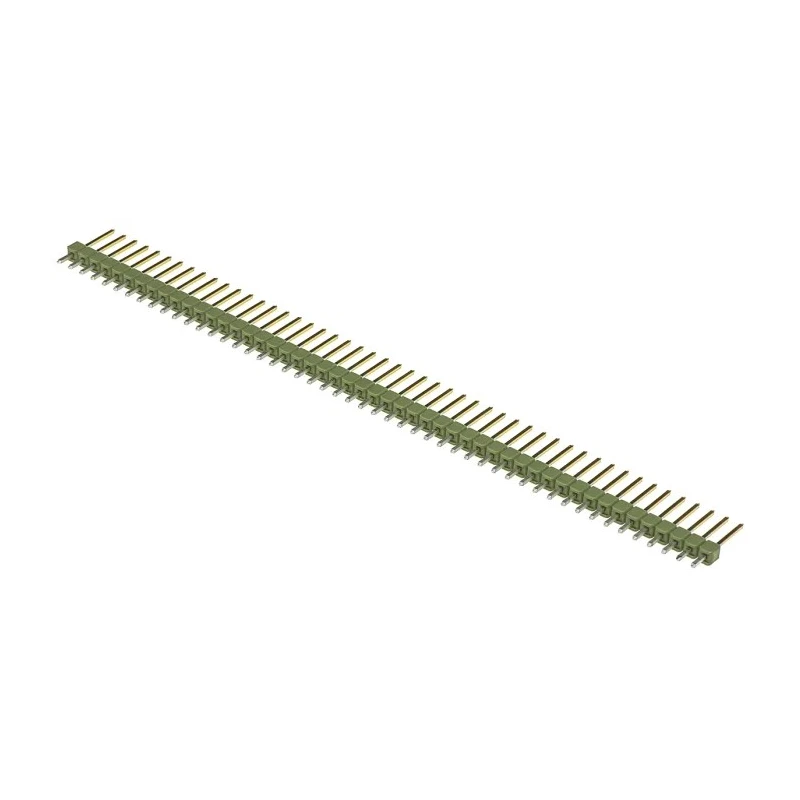

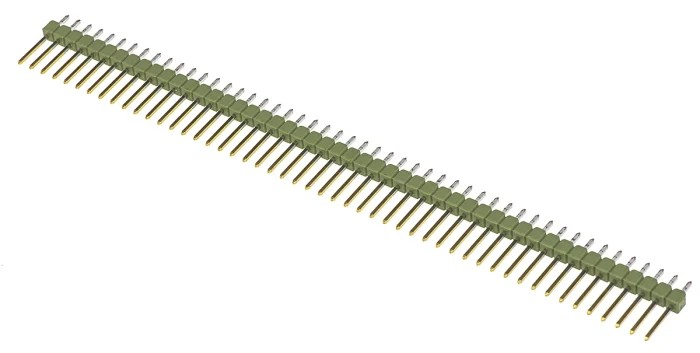

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 50 Contacts, 2.54 mm Pitch, 1 Row 5-826648-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 40V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 8mm |
Key Features
- Series AMPMODU MOD II ensures reliable signal interconnection.
- 50 male contacts plated with gold for superior conductivity.
- Constructed with polyester housing for durability.
- Rated for 3A current and 40V voltage applications.
- Operates reliably between -55°C and 105°C operating temperature.
- Tail pin length of 3.2mm and mating pin length of 8mm.
- Suitable for board-to-board and wire-to-board connector systems.
- Unshrouded design allows easy pin access and soldering.
Product Description
TE Connectivity 5-826648-0 AMPMODU MOD II Series Straight Through Hole Pin Header features a single row of 50 male contacts with a 2.54 mm pitch, designed for through-hole mounting on PCBs. The unshrouded header utilizes a durable polyester housing and features gold-plated brass contacts, offering excellent electrical performance at currents up to 3A and voltages up to 40V.
This pin header is rated to operate in a temperature range from -55°C to 105°C, making it suitable for diverse industrial and commercial environments. The tail pins have a length of 3.2 mm and mating pins length of 8 mm, enabling secure soldering and reliable mating with complementary connectors.
The AMPMODU MOD II interconnect system is a widely adopted standard in automation and control applications, renowned for its compact design and versatility. This product can be used for board-to-board and wire-to-board connections and is ideal for automotive controls, industrial machines, telecommunications, computers, medical instruments, and storage equipment.
The unshrouded breakaway design allows users to customize pin header length to fit specific circuit design needs efficiently, reducing installation time and costs. Its robust build supports quick, reliable, and economical installation processes in complex electronic assemblies.
Series AMPMODU MOD II ensures reliable signal interconnection. 50 male contacts plated with gold for superior conductivity. Constructed with polyester housing for durability. Rated for 3A current and 40V voltage applications.
Operates reliably between -55°C and 105°C operating temperature. Tail pin length of 3.2mm and mating pin length of 8mm. Suitable for board-to-board and wire-to-board connector systems. Unshrouded design allows easy pin access and soldering.
Through hole mount type provides robust mechanical connection. Ideal for industrial, automotive, telecommunications, and medical equipment applications. Explore more high-quality PCB connectors from TE Connectivity in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Explore more products in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header is rated for a maximum current of 3A.
It is rated for a maximum voltage of 40V.
The contacts have a pitch size of 2.54 mm.
It operates reliably between -55°C and 105°C.
This model features 50 male contacts.
The housing is made of polyester, and the contacts are made of brass with gold plating.
The tail pin length is 3.2 mm.
It uses solder termination.
This model supports through-hole mounting.
Yes, it is suitable for both board-to-board and wire-to-board connector systems.
This pin header features an unshrouded design, allowing easy access to the pins.
The mating pin length is 8 mm.
