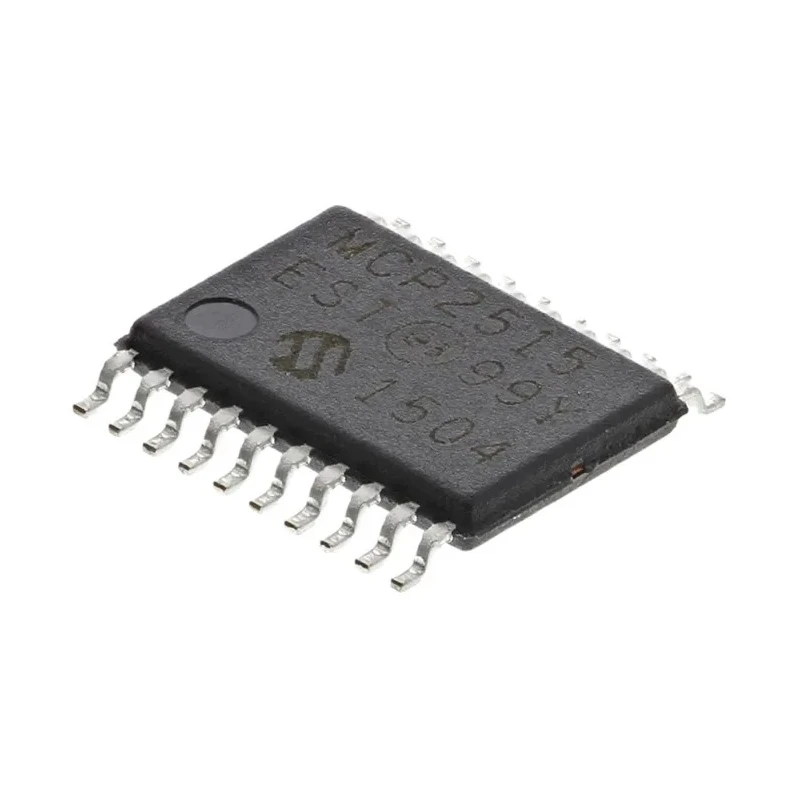

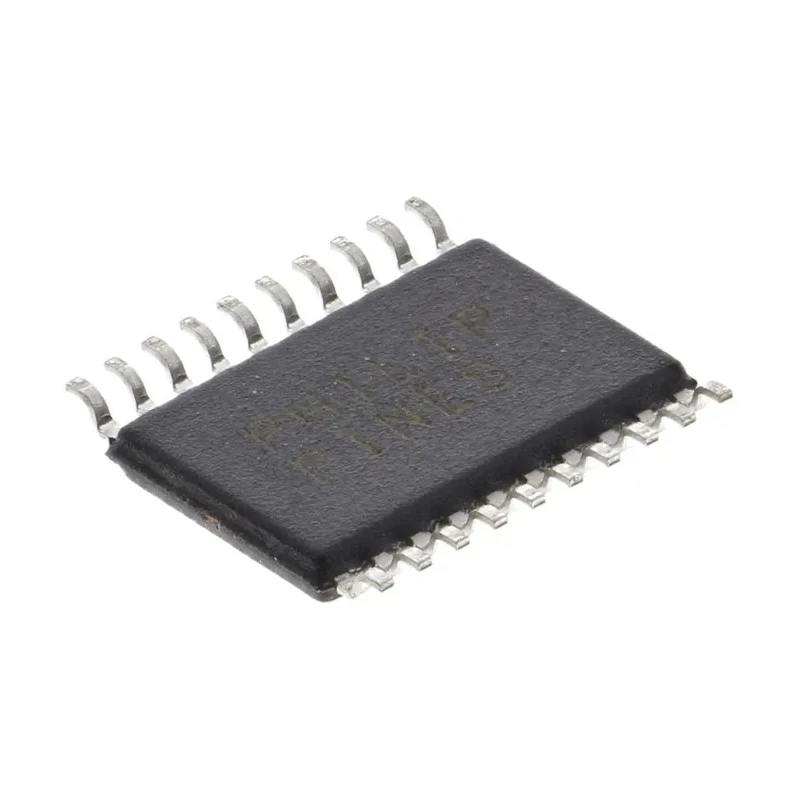

Microchip CAN Controller 1 Mbps, 20-Pin TSSOP MCP2515-e/ST

Microchip MCP2515-e/ST is a standalone CAN Controller designed for robust automotive and industrial applications requiring high-speed Controller Area Network communication at 1 Mbps. This device is housed in a compact 20-pin TSSOP surface mount package, optimized for space-constrained PCB designs.

Operating over a wide supply voltage range of 2.7V to 5.5V with a low supply current of 10 mA, the MCP2515-e/ST supports both Sleep and Standby power-down modes to maximize energy efficiency during idle periods. Its operational temperature range from -40°C to 125°C makes it suitable for harsh environments often encountered in automotive and industrial settings.

Compliant with the AEC-Q100 automotive standard, this CAN controller assures reliability and performance stability under demanding conditions. The device supports CAN 2.0B interface protocol, enabling it to serve as an effective node controller in a CAN bus network.

Physical dimensions of 6.5 mm length, 4.4 mm width, and a height of 900 μm combine to offer a compact footprint facilitating dense circuit layouts. The single transceiver architecture simplifies integration while providing consistent and reliable CAN communication.

Despite lacking built-in ESD protection, suitable external protection should be employed to safeguard against transient voltages and electrostatic discharges in real-world deployments.

Operates at maximum CAN data rate of 1 Mbps. Low power consumption with 10 mA supply current. Wide operating temperature range from -40°C to 125°C. Compact 20-pin TSSOP surface mount package. Supports Sleep and Standby power down modes.

Complies with automotive grade AEC-Q100 standard.

This Microchip CAN Controller is ideal for industrial automation, automotive embedded systems, and networked sensor modules requiring dependable CAN communications. Explore more advanced semiconductor components and CAN Interface ICs in the Electronics & Electricals catalog at EnvMart.
