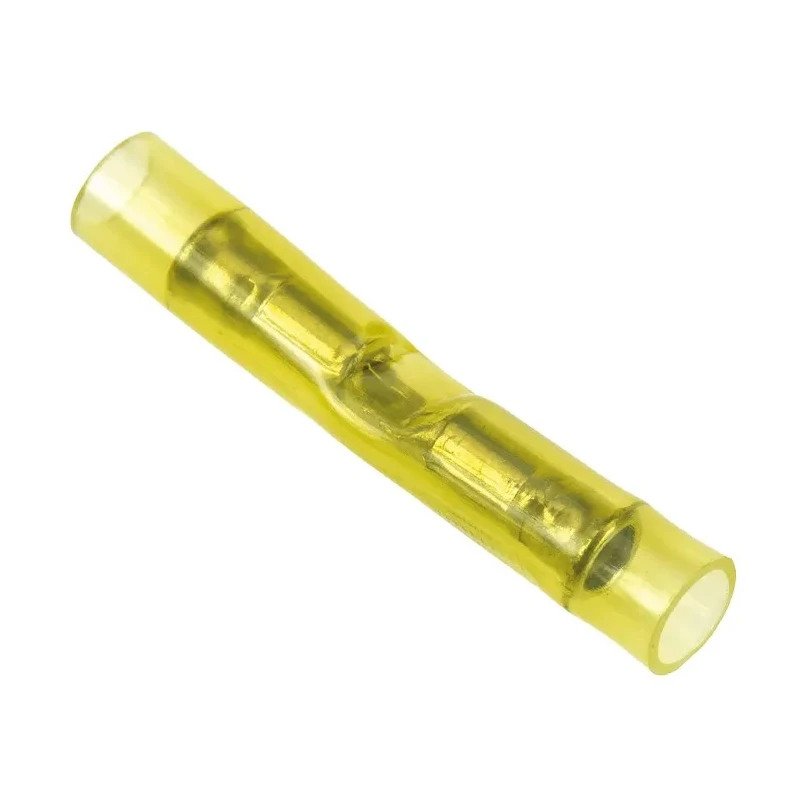

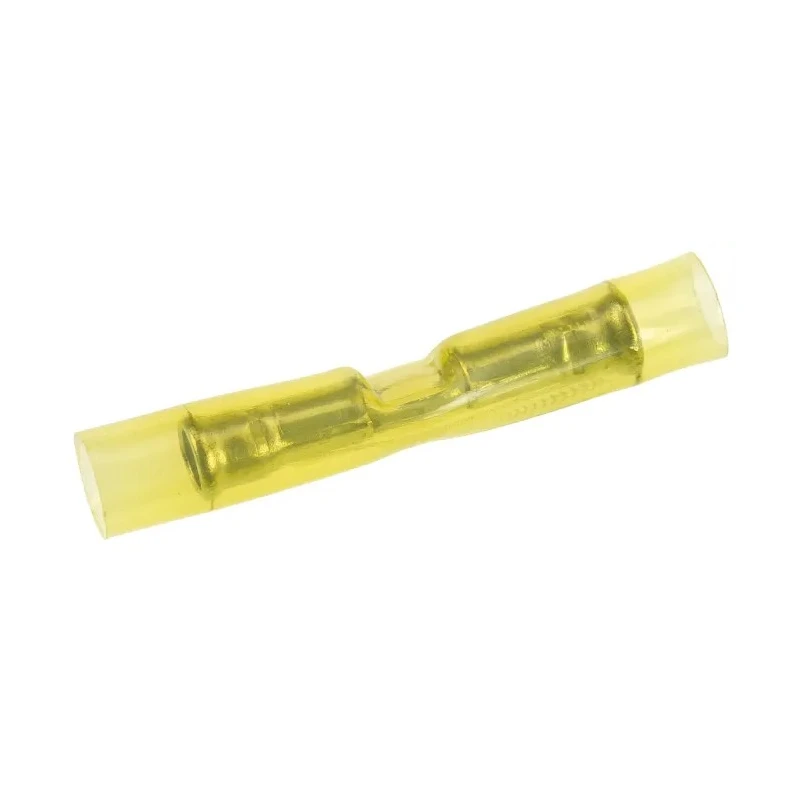

TE Connectivity PIDG Butt Splice Connector Yellow Insulated Tin Copper Crimp 24 AWG 323994

TE Connectivity 323994 PIDG Butt Splice Connector Yellow is a premium insulated splice connector engineered for professional electrical and electronic applications. It features a precision-formed high conductivity copper body and barrel, ensuring optimal electrical conductivity and mechanical durability.

The connector includes a copper sleeve surrounding the crimp barrel, providing enhanced wire insulation support that helps prevent fraying or breaking of wire conductors after crimping, allowing for reliable bending and flexibility in wire connections. The nylon yellow sleeve is color-coded to assist technicians in correct wire gauge identification and consistent tooling processes.

Inside the wire barrel, serrations maximize contact surface and tensile strength once crimped, yielding a uniform and secure electrical connection. The construction complies with demanding circuit reliability requirements, and the specialized tooling leads to uniform insulation thickness for the best mechanical stability.

With an overall length of 22.61 mm, a contact diameter of 2.08 mm, and a wall thickness of 0.64 mm, this connector is compact, robust, and suitable for wire sizes ranging from 26 AWG to 24 AWG. Termination is by crimp, with tin plating on copper contacts ensuring corrosion resistance and longevity.

These Splice Connectors are widely used in applications including instruments and control systems, lighting setups, power supplies, panel boxes, motors, aerospace components, transportation equipment, and domestic appliances. They meet or exceed MIL-T-7928 Type II Class 1 and 2 standards, suitable for challenging industrial environments.

High conductivity copper body for superior electrical performance. Copper sleeve for enhanced wire insulation support and durability. Serrated wire barrel ensures maximum contact and mechanical strength. Color-coded yellow sleeves for easy wire gauge identification.

Designed for reliable, uniform crimps using specialized dies. Overall length: 22.61 mm, Diameter: 2.08 mm, Thickness: 0.64 mm. For wire size: 26 AWG minimum, 24 AWG maximum. Tin-plated copper contacts for corrosion resistance.

Manufactured in the United States to high quality standards.
