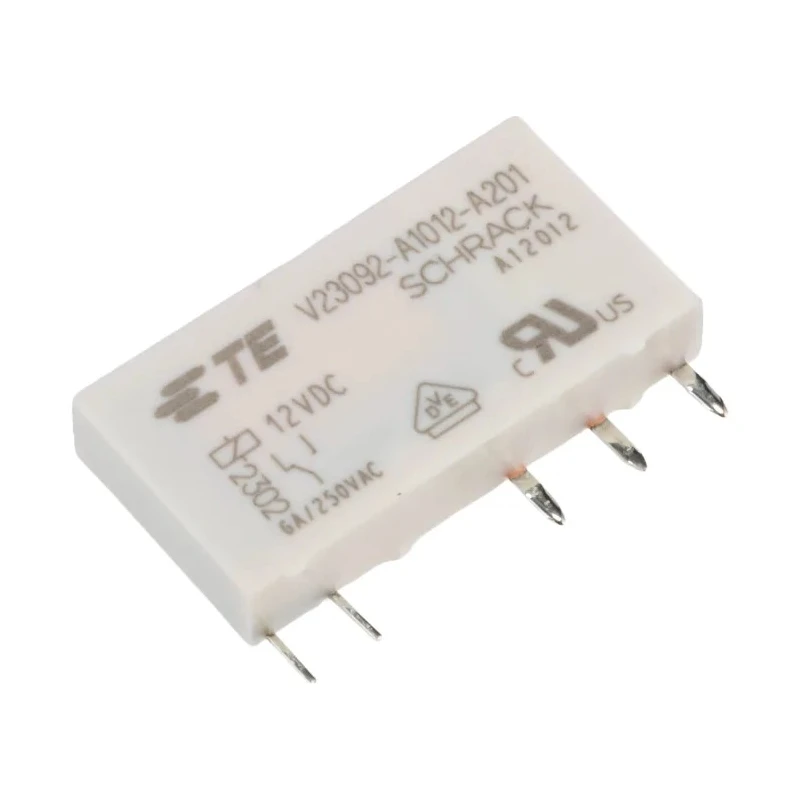

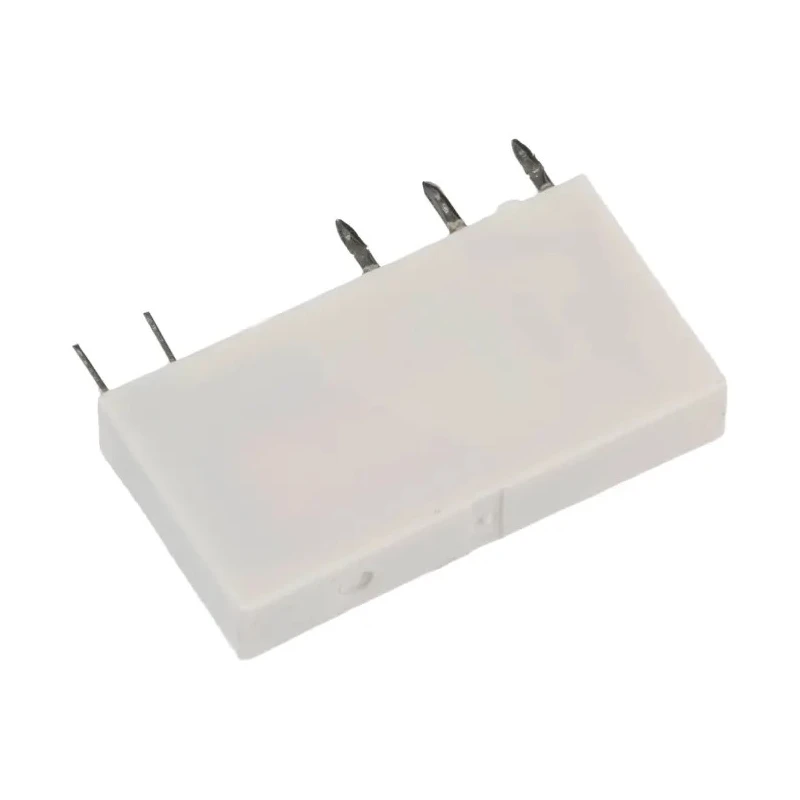

TE Connectivity PCB Power Relay 12V DC Coil, 6A Switching Current, SPDT V23092-A1012-A201
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 28mm |
| Model | V23092-A1012-A201 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SNR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | VDE Cert. No. 40010063, UL 508, UL E214025, EN60730-1, IEC 61810 |
| Coil Resistance | 848Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 170mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 170mW |
Key Features
- Compact design with a slim 5mm thickness for high density PCB mounting.
- High coil sensitivity at 170mW enables efficient operation.
- Wide operating temperature range from -40°C to 85°C.
- Rated switching power of 1.5kVA and switching AC voltage up to 400V AC.
- Gold plated contacts ensure excellent conductivity and durability.
- Isolation between coil and contacts withstands up to 4000Vac.
- Solder terminal type suitable for PCB mounting.
- Dimensioned at 28mm length, 15mm height, and 5mm width for compact installations.
Product Description
TE Connectivity V23092-A1012-A201 is a high-performance PCB Power Relay designed for industrial and electrical automation applications. Featuring a 12V DC coil and 6A switching current with SPDT contact configuration, it ensures reliable switching in compact spaces.
The relay comes from the SNR series with a slim 5mm profile, enabling high-density PCB mounting. Its coil sensitivity of 170mW and coil power rating of 210mW allow for energy-efficient operation. The relay operates effectively across a wide temperature range from -40°C up to 85°C, accommodating harsh environmental conditions.
With a switching power rating of 1.5kVA and capable of handling switching AC voltages of up to 400V AC, it is suitable for demanding industrial control systems. The gold plated contacts offer superior conductivity and resistance to wear, contributing to longevity and reliability.
Electrical isolation between the coil and contacts is rated for 4000Vac, ensuring safety and signal integrity. Solder terminals are designed for secure PCB assembly. The relay’s compact dimensions - 28mm length, 15mm height, and 5mm width - allow easy integration into various electrical devices and control boards.
This product meets global quality and safety standards, including VDE (Certification No. 40010063), UL 508, UL E214025, EN60730-1, and IEC 61810, ensuring dependable performance. Compact slim design with 5mm thickness for space saving on PCB.
High coil sensitivity and low coil power consumption. Wide operation temperature range suitable for industrial environments. Gold plated contacts for enhanced conductivity and durability. High isolation voltage between coil and contacts for operational safety.
Complies with international industry standards and certifications. Solder terminal for reliable PCB mounting. Ideal for automation, electrical control, manufacturing, and industrial applications. Explore more products like the TE Connectivity V23092-A1012-A201 PCB Power Relay in our Power Relays category at EnvMart for your automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 6A.
This model operates with a coil voltage of 12V DC.
It can handle switching AC voltages of up to 400V AC.
The dimensions are 28mm in length, 15mm in height, and 5mm in width.
The relay operates effectively within a temperature range of -40°C to +85°C.
It features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is 848Ω.
It uses solder terminals suitable for PCB mounting.
The contacts are made of gold plated material, enhancing conductivity and durability.
The isolation between the coil and contacts can withstand up to 4000Vac.
It complies with several standards including VDE, UL 508, UL E214025, EN60730-1, and IEC 61810.
The coil power rating is 170mW, indicating high coil sensitivity.
