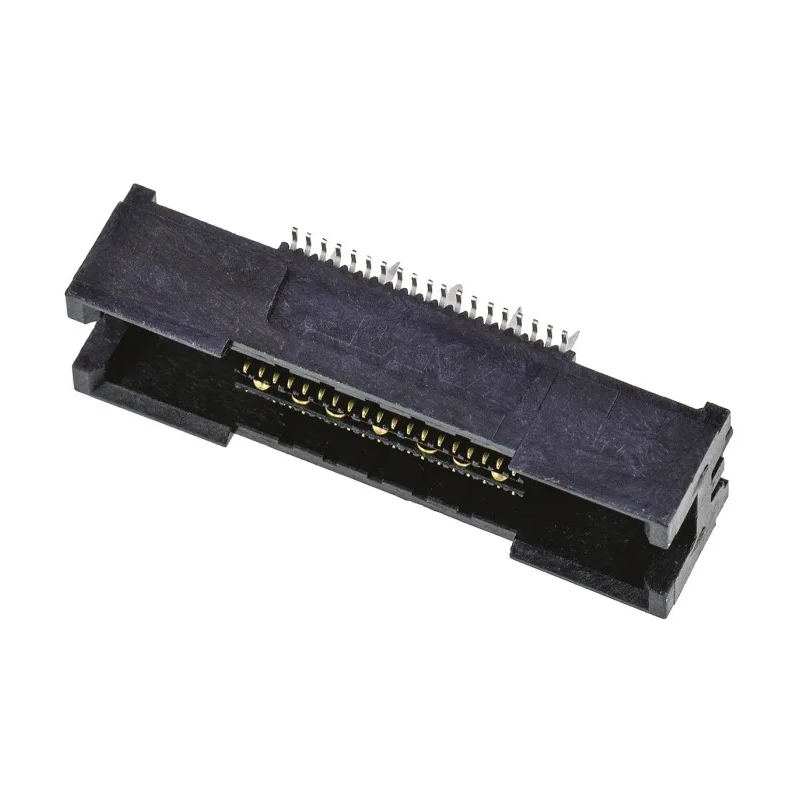

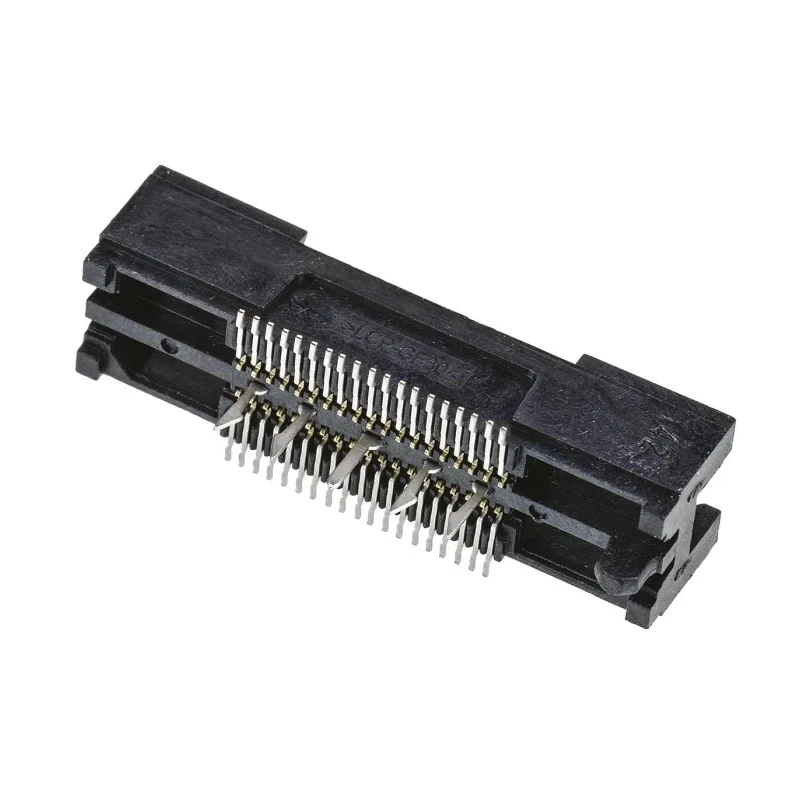

TE Connectivity MICTOR Series Straight Surface PCB Socket, 38-Contact, 2 Row, 0.64 mm Pitch Solder 5767054-1
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 11.5A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | MICTOR |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.64mm |
| Contact Plating | Gold |
| Number of Contacts | 38 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.54mm |
Key Features
- Designed for high-speed data switching up to 10+ Gbit/s.
- High-density microstrip design with 76 signal pins per linear inch.
- Features a redundant point of contact dual beam contact design for enhanced electrical reliability.
- Polarized housing prevents mismating, ensuring secure connections.
- Suitable for automated assembly with PCB retention features.
- Operating temperature range from -55°C to 105°C for diverse environments.
- Gold plated copper contacts optimize conductivity and corrosion resistance.
- Applicable in telecommunications, enterprise switching, servers, and storage networks.
Product Description
TE Connectivity 5767054-1 is a high-performance MICTOR Series straight surface mount PCB socket designed for demanding electronic applications. This 38-contact, 2-row connector features a 0.64 mm pitch solder termination, enabling secure and reliable electrical connections in high-speed data environments.
Constructed with a microstrip design, the connector offers a high-density configuration of 76 signal pins per linear inch, allowing efficient use of PCB space. The dual beam contact design provides redundant points of contact for superior electrical reliability, while the polarized housing and PCB retention features prevent mismating and ensure a robust connection.
The socket is built to operate within a wide temperature range from -55°C to 105°C, making it suitable for various industrial, telecommunications, computing, and storage applications requiring high speed and signal integrity up to 10+ Gbit/s.
High-speed performance exceeding 10 Gbit/s. Microstrip design optimizes signal integrity. Redundant dual beam contacts enhance reliability. Polarization and PCB retention improve durability. Operating temperature range: -55°C to 105°C.
Gold plated copper contacts for superior conductivity. Compatible with board-to-board connector systems.
This MICTOR Series connector is widely used in telecommunications enterprise switching equipment, mid-range servers, storage area networks, and customized high-speed platforms. Its robust design and reliable contacts make it an ideal choice for high-performance industrial and laboratory electronic equipment requiring consistent and secure connectivity.
Explore more in our Electronics Components PCB Sockets category for advanced PCB connection solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this PCB socket is 105°C.
This model features 38 contacts arranged in 2 rows.
The pitch size of this socket is 0.64 mm.
It uses a solder termination type for secure connections.
The current rating for this model is 11.5A.
The contacts are made of copper with gold plating, and the housing is constructed from liquid crystal polymer.
Yes, it is suitable for automated assembly due to its PCB retention features.
The voltage rating of this connector is 30V.
This socket is applicable in telecommunications, enterprise switching, servers, and storage networks.
The orientation of this socket is straight.
It is compatible with board-to-board connector systems.
The minimum operating temperature is -55°C.
