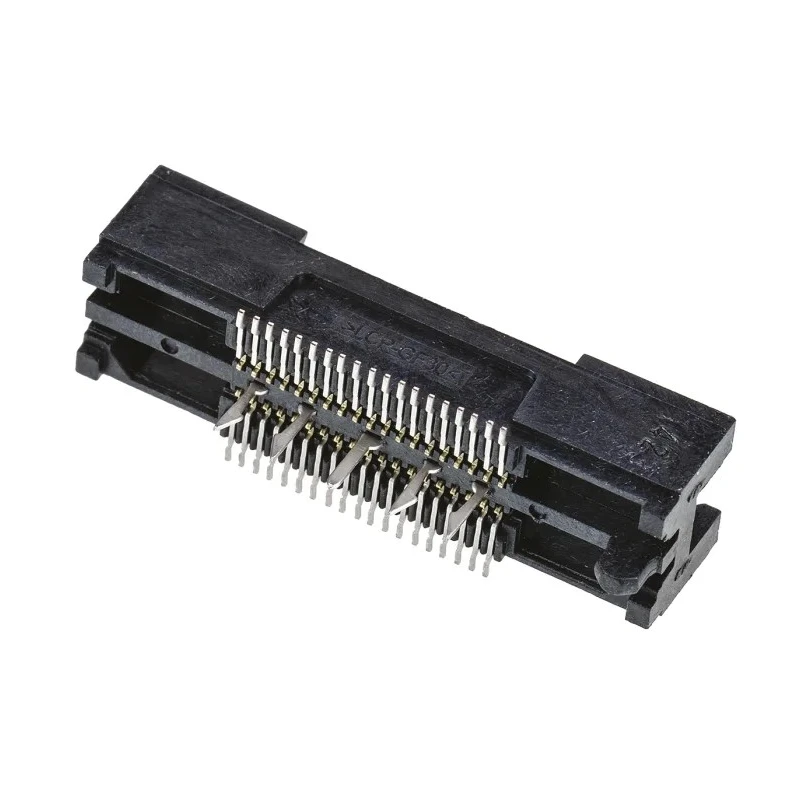

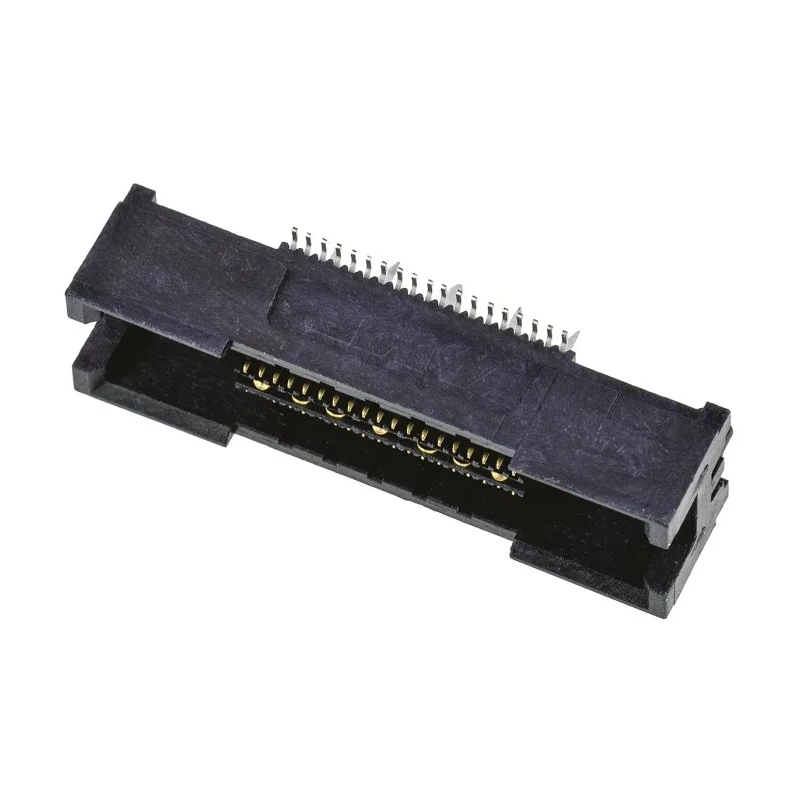

TE Connectivity MICTOR Series Straight Surface PCB Socket 38-Contact 2 Row 0.64 mm Pitch Solder 5767054-1
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 11.5A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | MICTOR |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.64mm |
| Contact Plating | Gold |
| Number of Contacts | 38 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.54mm |
Key Features
- High-speed MICTOR stacking connector designed for data switching applications.
- Features 38 contacts arranged in 2 rows with 0.64 mm pitch spacing.
- Constructed with gold-plated copper contacts for reliable conductivity.
- Housing made from Liquid Crystal Polymer ensuring durability.
- Surface mount type with a straight orientation for PCB installation.
- Supports currents up to 11.5 A and voltage rating of 30 V.
- Operates within temperatures from -55°C to 105°C.
- Polarized housing to prevent mismating and ensure secure connections.
Product Description
TE Connectivity 5767054-1 MICTOR Series Straight Surface PCB Socket is a high-speed connector featuring 38 female contacts arranged in 2 rows with a 0.64 mm pitch, optimized for board-to-board connections. The socket supports up to 11.5 A current and 30 V voltage rating, operating reliably between -55°C and 105°C, making it appropriate for demanding industrial and telecommunications environments.
The connector incorporates a microstrip design with a center ground plane, allowing high-speed data transmission exceeding 10 Gbit/s. The durable construction includes gold-plated copper contacts housed within a Liquid Crystal Polymer shell, providing excellent electrical reliability and mechanical robustness.
Its polarized housing and PCB retention features prevent mismating and ensure stable connections during operation and assembly processes. The surface mount, straight orientation design facilitates integration into automated PCB assembly lines.
High-density connector with 38 contacts in two rows. Gold-plated copper contacts for superior signal integrity. Liquid Crystal Polymer housing for mechanical strength and heat resistance. Suitable for high-speed telecommunications, servers, and storage systems.
Designed to prevent mismating with polarized housings. Reliable performance across a wide temperature range. Supports automated manufacturing assembly processes.
This MICTOR connector is widely used in industrial, telecommunications, server, and storage applications requiring reliable, high-speed board-to-board connectivity. Explore additional PCB Socket solutions and TE Connectivity products at EnvMart for comprehensive connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 11.5 A.
The voltage rating for this connector is 30 V.
The contacts in this socket are arranged with a pitch of 0.64 mm.
It features 38 female contacts arranged in 2 rows.
The contacts are made of gold-plated copper, and the housing is constructed from Liquid Crystal Polymer.
This connector operates reliably within a temperature range of -55°C to 105°C.
It uses a solder termination type for connections.
Yes, it is a surface mount type with a straight orientation for PCB installation.
This model is suitable for high-speed telecommunications, servers, and storage systems requiring reliable board-to-board connectivity.
It has a polarized housing that prevents mismating and ensures secure connections during operation.
The connector system type is board-to-board, optimized for high-speed data transmission.
The country of origin for this connector is the United States.
