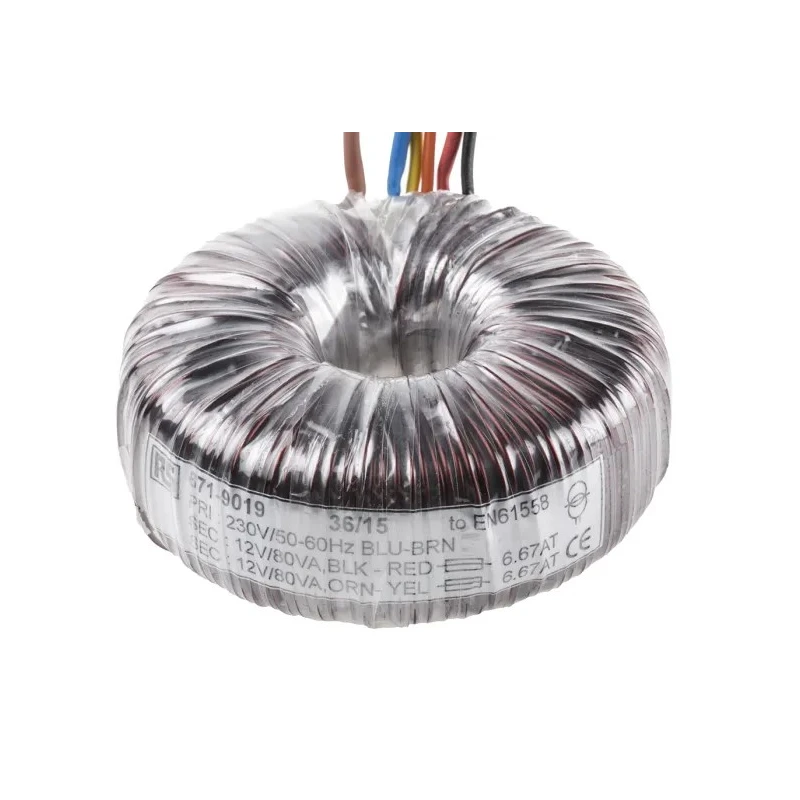

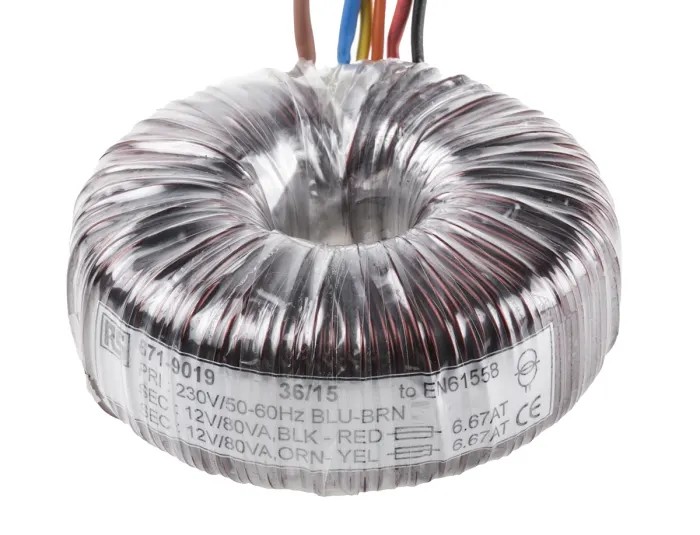

RS PRO 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 160 VA, Copper Conductor, 50-60 Hz, 1.74 kg 671-9019

RS PRO 671-9019 Toroidal Transformer 230 V ac 2 x 12 V ac 2 Output 160 VA is engineered to deliver superior performance with efficient magnetic flux distribution, resulting in high electrical efficiency and minimal power losses. Its toroidal core design enables a compact and lightweight form factor, making it suitable for various electronic applications where space optimization is essential.

This transformer is constructed with copper conductor termination for secure and reliable electrical connections. It operates within a frequency range of 50 to 60 Hz and provides two secondary outputs at 12 V ac each with a current capacity of 6.667 A. The unit weighs 1.74 kg and measures 109 mm in diameter with a height of 46 mm, making it suitable for integration in compact assemblies.

Compliance with international standards such as RoHS, IEC 61558 Class II, VDE0570 Class II, EN 61558, and UL 506 ensures the unit meets stringent safety and environmental requirements. The double insulated primary leads provide additional safety and help prevent electrical hazards.

Its low electromagnetic interference (EMI) and reduced audible noise characteristics make it an excellent choice for sensitive electronic environments. This toroidal transformer is widely used in applications including audio equipment, medical devices, telecommunications systems, industrial controls, and power supplies.

Note that mounting hardware is not supplied and must be sourced separately. Proper installation involves avoiding simultaneous contact of both ends of the fixing bolt with metal chassis to prevent dangerous shorted-turns.

Offers excellent electrical efficiency with minimal losses. Features compact size and lightweight design for space optimization. Provides two 12 V ac outputs at 6.667 A secondary current. Operates between 50 Hz to a maximum of 60 Hz frequency.

Constructed with copper conductor termination for reliable connections. Complies with RoHS, IEC 61558 Class II, VDE0570 Class II, EN 61558, and UL 506 standards. Ideal for use in audio equipment, medical devices, telecommunications, and industrial control systems.

Ensures high electrical isolation and reduced audible noise during operation. Has a diameter of 109 mm and height of 46 mm, weighing 1.74 kg. Double insulated primary leads enhance safety and durability.

The RS PRO 671-9019 Toroidal Transformer is a reliable solution for electrical power conversion in a wide range of industrial, medical, and telecommunications applications. Explore EnvMart's extensive transformer category for compatible and complementary products.
