Nuvotem Talema Toroidal Transformer 230 V ac Primary 2 x 30 V ac Secondary 500 VA 2 Output 92433-P2S2

Nuvotem Talema 92433-P2S2 Toroidal Transformer is a high-quality power transformer designed with 230 V ac primary voltage and dual 30 V ac secondary outputs rated at 500 VA. It features a compact open toroid center construction with a diameter of 136 mm and a height of 60 mm, allowing for efficient space utilization in various installations.

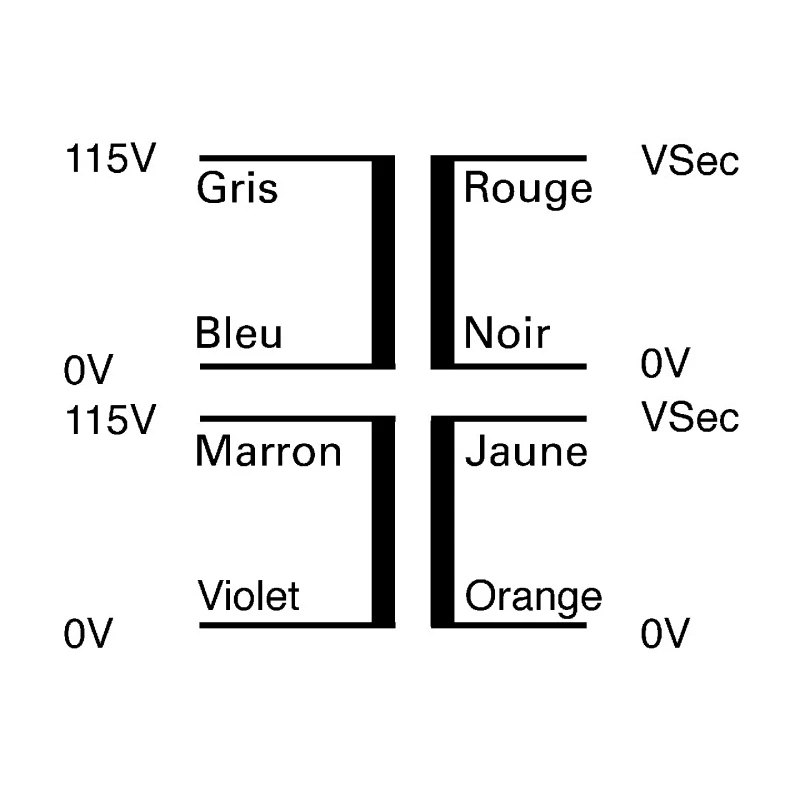

This transformer offers a single primary winding with double insulated leads and leads termination type for safe and secure electrical connections. The twin 115Vac 50/60Hz primary windings can be configured in series for 230 V or parallel for 115 V operation while the secondary windings may be connected independently or in series/parallel configurations, providing versatility in output voltage and current delivery of 8.33 A per output.

Designed for industrial and electronic applications, this unit operates reliably within a frequency range of 50 Hz minimum to 60 Hz maximum and withstands maximum operating temperatures up to 40°C. It delivers extremely low iron loss, minimal radiated magnetic fields, and very low induced noise, making it suitable for sensitive electronics and power supply devices.

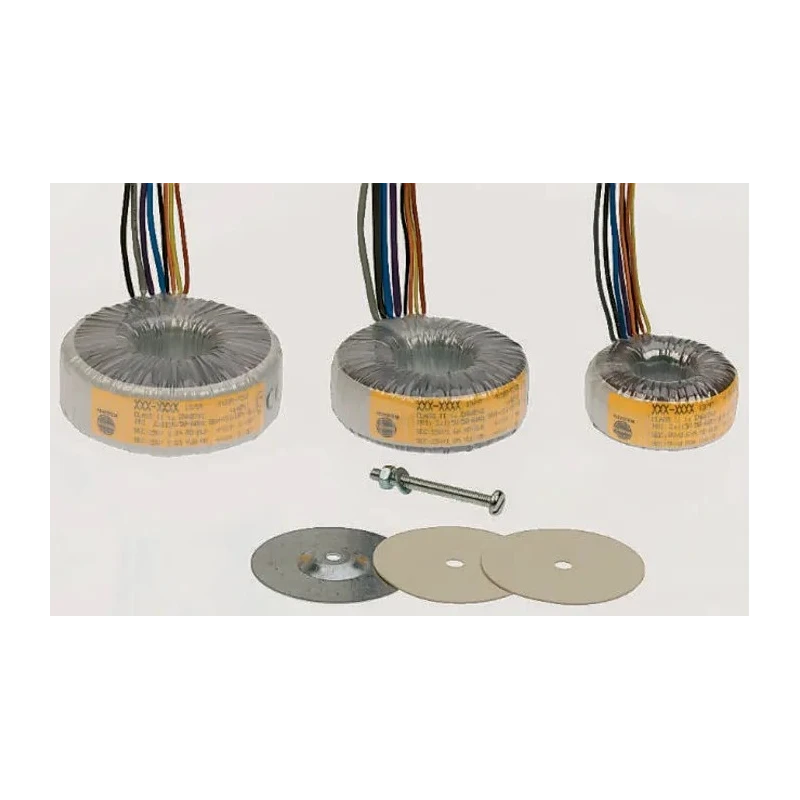

The product complies with essential standards such as RoHS, EN61558, EN60950, EN60065, VDE 0551, VDE 0550, and BS415. It is also UL506 and EN61558 approved, assuring quality and safety compliance. The unit is supplied with a full mounting kit and is 100% electrical and flash tested for reliability.

Features a dual secondary output providing 8.33 A current per output. Constructed with an open toroid center and single primary winding. Compact design with diameter 136 mm and height 60 mm. Operates effectively within frequency range 50 to 60 Hz.

Maximum operating temperature of 40°C ensures reliable performance. Leads termination type with double insulated primary leads for safety. Supplied with a full mounting kit for easy installation. Complies with RoHS standards and UL506, EN61558 approvals.

Designed for low iron loss and minimal magnetic field radiation. Ideal for electronic, industrial, and power supply applications.

This transformer is ideal for use in electronic devices, power supplies, industrial machinery, and automation systems requiring stable and reliable voltage transformation. Its efficient design facilitates easier integration into various electrical assemblies.
