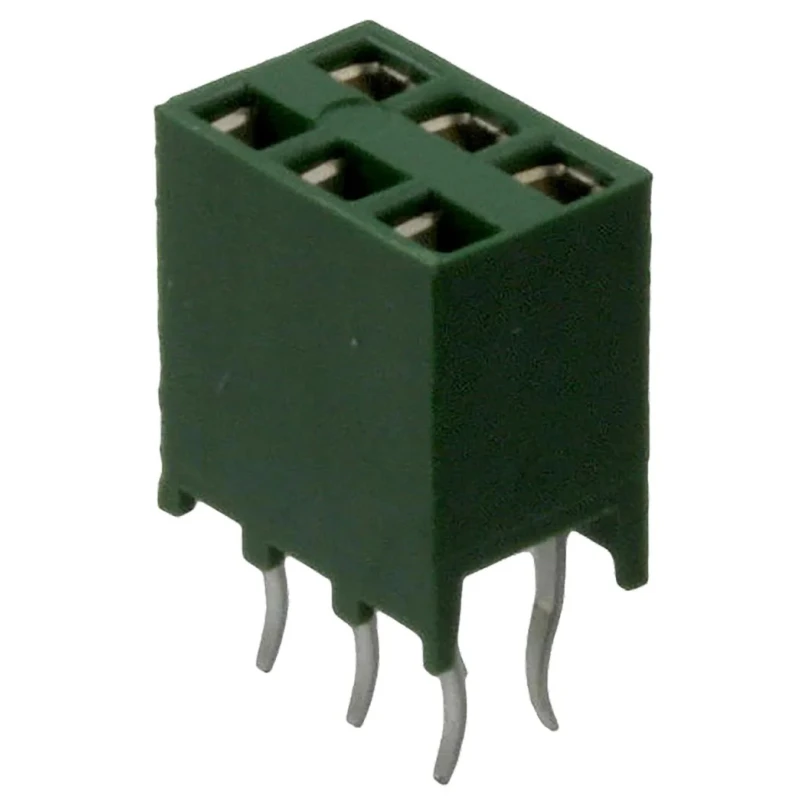

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket, 6-Contact, 2 Row, 2.54 mm Pitch, Solder Termination HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features kinked solder legs for secure PCB retention.
- Constructed with UL 94V-0 flame retardant polyester housing material.
- Supports a maximum current of 12 A for reliable electrical performance.
- Contact gender is female with bronze contact material and tin plating.
- Operates within a temperature range from -65°C to 105°C.
- Designed with vertical mounting and top entry orientation.
- Includes board stand-offs for mechanical stability during assembly.
- Available in stacking heights of 7 mm and 8.5 mm for versatile mounting applications.
Product Description
TE Connectivity HV100 is a high-quality PCB socket designed for reliable board-to-board connections in industrial and electronic applications. This PCB socket features 6 contacts arranged in 2 rows with a precise 2.54 mm pitch, suitable for through-hole solder termination ensuring durable and secure attachment to printed circuit boards.
The socket housing is made from UL 94V-0 flame retardant polyester thermoplastic, enhancing fire safety and long-term durability. The kinked solder legs provide excellent retention on PCB surfaces, reducing the risk of connection failure during operation or vibration.
This female contact socket utilizes bronze contact material with tin plating to optimize conductivity and corrosion resistance, supporting up to 12 A current. It is designed to operate reliably across a wide temperature range from -65°C to 105°C, making it ideal for a variety of industrial and electronics environments.
The straight orientation with vertical mounting and top entry simplifies assembly and stacking. The product includes board stand-offs that add mechanical stability to the mounted socket assembly. Two mounting height options, 7 mm and 8.5 mm, cater to different stacking application requirements.
Secure solder retention with kinked solder legs. UL 94V-0 flame retardant polyester housing. 6 contacts arranged in 2 rows at 2.54 mm pitch. Supports 12 A current capacity for robust electrical performance. Female bronze tin-plated contacts.
Wide operating temperature from -65°C to 105°C. Vertical mounting and top entry orientation. Board stand-offs included for assembly stability. Available stacking heights of 7 mm and 8.5 mm.
This TE Connectivity AMPMODU HV100 PCB Socket is well-suited for industrial electronics manufacturing, telecommunications, and other board-to-board connection applications requiring high reliability and safety standards. Browse EnvMart's extensive electronics components catalog for compatible parts and accessories to complement your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 12 A, ensuring reliable electrical performance.
The socket features 6 contacts arranged in 2 rows with a pitch of 2.54 mm, suitable for through-hole solder termination.
It operates reliably within a temperature range from -65°C to 105°C, making it suitable for various industrial environments.
The housing is made from UL 94V-0 flame retardant polyester, and the contacts are bronze with tin plating for enhanced conductivity and corrosion resistance.
It is designed for vertical mounting with a straight orientation and top entry, simplifying assembly and stacking.
This model includes board stand-offs that provide mechanical stability during assembly, enhancing the reliability of the connection.
The socket is available in two stacking heights of 7 mm and 8.5 mm, catering to different application requirements.
It utilizes solder termination, ensuring a durable and secure attachment to printed circuit boards.
The contacts are female, designed for board-to-board connections.
The country of origin for this product is India.
It is well-suited for industrial electronics manufacturing, telecommunications, and other board-to-board connection applications requiring high reliability.
This model belongs to the AMPMODU HV100 series, which is designed for reliable board-to-board connections.
