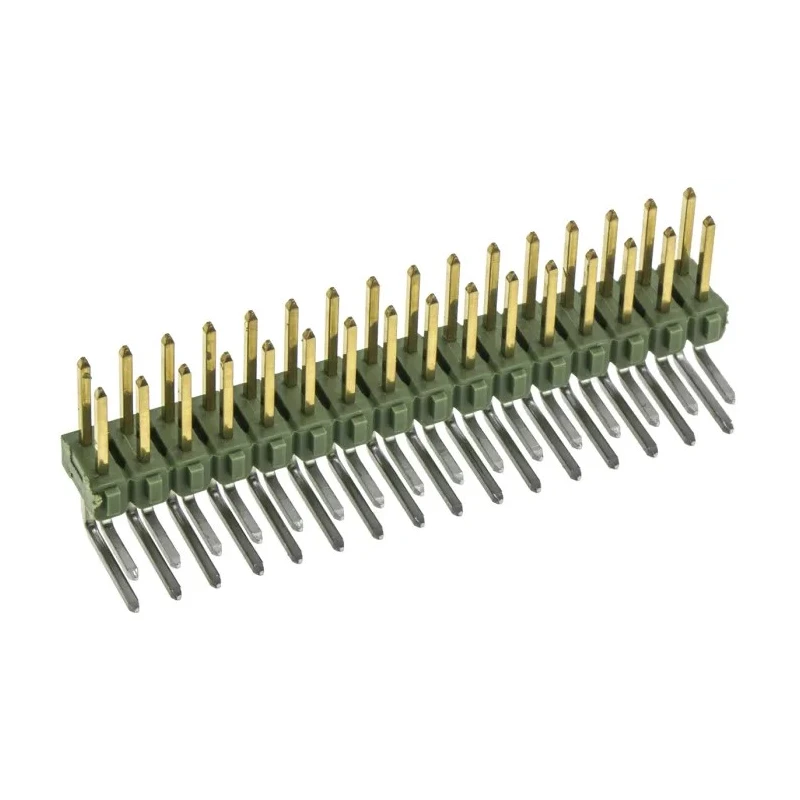

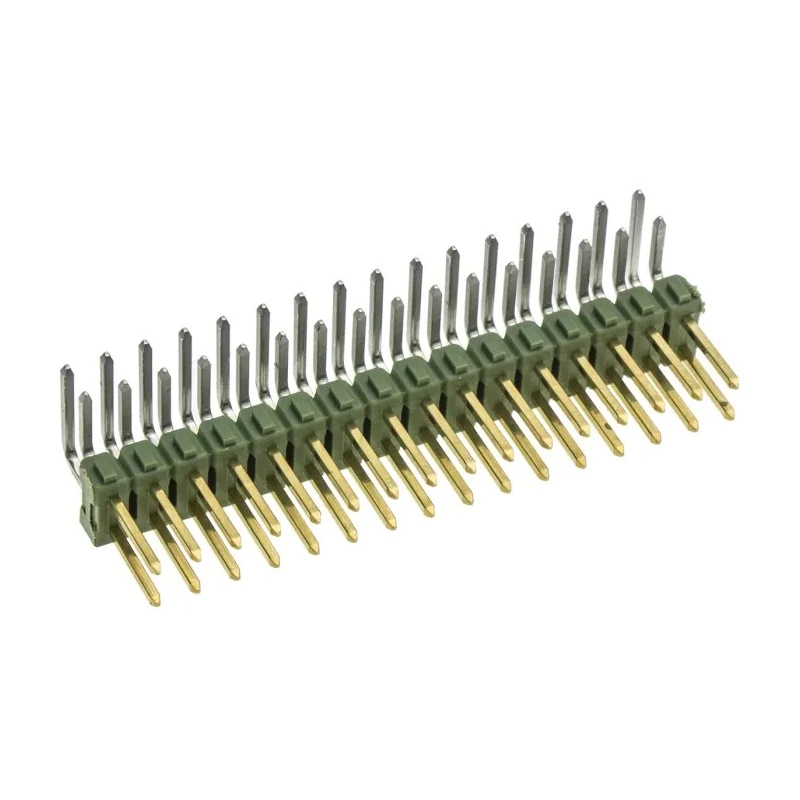

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 32 Contacts, 2.54 mm Pitch, Brass Gold 1-826634-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Features a 2 row, right angle configuration with 32 brass contacts plated with gold.
- Supports a continuous current rating of 3 A at a voltage of 750 V.
- Constructed with polybutylene terephthalate housing for durability.
- Tail pin length of 3.2 mm and mating pin length of 6.7 mm for reliable solder connections.
- Suitable for industrial, automotive, telecommunications, and medical instrument applications.
- Operating temperature range from -55°C to 105°C ensures performance under varied conditions.
- Through hole mount type allows for stable PCB installation.
- Unshrouded for versatile PCB header breakaway size customization.
Product Description
TE Connectivity 1-826634-6 AMPMODU MOD II Series right angle through hole pin header is designed for electronic applications requiring reliable interconnect solutions. This 2.54 mm pitch, double row, unshrouded pin header contains 32 gold-plated brass contacts housed in a polybutylene terephthalate body, optimized for durability and consistent electrical performance.
The right angle orientation facilitates board-to-board or wire-to-board connections and supports a continuous current of 3 A at voltages up to 750 V. With a tail pin length of 3.2 mm and mating pin length of 6.7 mm, this through hole mount header ensures secure solder joints and mechanical stability on printed circuit boards.
Operating reliably in temperatures from -55°C to 105°C, this pin header is well-suited for demanding environments found in automotive controls, telecommunications equipment, industrial and test machinery, medical instrumentation, and storage units.
The AMPMODU MOD II Interconnect system is a widely recognized standard for automation and control applications, combining reliability with economical design. This header's breakaway design allows users to customize length by breaking to size, optimizing space and reducing waste.
2.54 mm pitch with 32 contacts in double row configuration. Gold-plated brass contacts for superior conductivity and corrosion resistance. Polybutylene terephthalate housing for electrical insulation and strength. Right angle orientation supports flexible PCB mounting options.
Through hole design enhances mechanical robustness. Unshrouded style permits easy breakaway and customization. Temperature range from -55°C to 105°C for robust performance. Rated for 3 A current and 750 V voltage. Ideal for industrial, automotive, telecommunication, and medical applications.
This connector is a core component for designing efficient and reliable PCB interconnect systems in industrial, laboratory, manufacturing, and commercial electronic device assemblies. Explore more TE Connectivity connectors and components for complete system solutions at EnvMart.
Explore more products in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a continuous current rating of 3 A.
The voltage rating is 750 V.
The pitch of the contacts is 2.54 mm.
It features brass contacts plated with gold and a housing made from polybutylene terephthalate.
The operating temperature range is from -55°C to 105°C.
The tail pin length is 3.2 mm, and the mating pin length is 6.7 mm.
It utilizes a through hole mount type for stable PCB installation.
This model is unshrouded, allowing for easy breakaway and customization.
It is suitable for industrial, automotive, telecommunications, and medical instrument applications.
The orientation is right angle, facilitating board-to-board or wire-to-board connections.
It has 32 contacts in a double row configuration.
The termination type is solder, ensuring secure connections.
