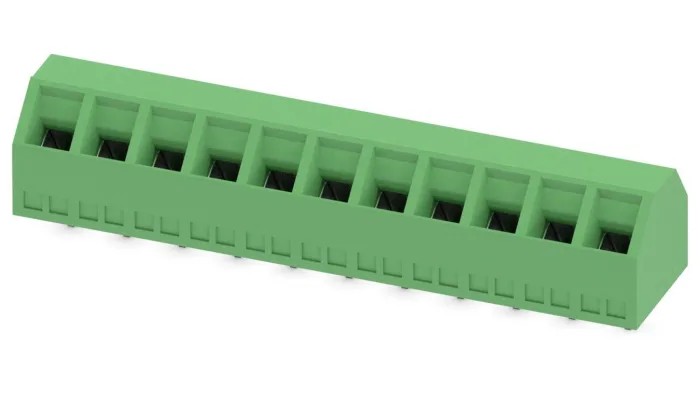

Phoenix Contact SMKDSN 1.5/11 Series PCB Terminal Block, 11-Contact, 5 mm Pitch, 1 Row, 13.5A, 400V, Polyamide 1869156

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact SMKDSN 1.5/11 Series PCB Terminal Block, 11-Contact, 5 mm Pitch, 1 Row, 13.5A, 400V, Polyamide 1869156

Name: Phoenix Contact SMKDSN 1.5/11 Series PCB Terminal Block, 11-Contact, 5 mm Pitch, 1 Row, 13.5A, 400V, Polyamide 1869156
Brand: PHOENIX CONTACT
SKU: 346127
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	400V
Brand	Phoenix Contact
Colour	Green
Current	13.5A
Length	12mm
Model	1869156
Width	56mm
Housing Material	Polyamide
Series	SMKDSN 1.5/11
Number of Rows	1
Pitch	5mm
Standards/Approvals	CHINA RoHS, CSA, cULus, EU REACH SVHC, EU RoHS
Number of Contacts	11
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	26AWG
Wire Connection Method	Screw

Key Features

Designed with 11 contacts in a single row configuration.
Features a 5 mm pitch spacing suitable for PCB mounting.
Constructed with durable green polyamide housing material.
Supports nominal current up to 13.5 amperes and voltage up to 400 volts.
Compatible with wire sizes ranging from 0.14 mm² to 1.5 mm² (16 AWG to 26 AWG).
Uses screw connection method with tension sleeve for secure wiring.
Mounting is by wave soldering with a 45° conductor to PCB connection angle.
Pin layout is linear with a solder pin of 3.5 mm length.

Product Description

The Phoenix Contact 1869156 SMKDSN 1.5/11 Series PCB Terminal Block is a high-quality assembly designed for efficient electrical connections in industrial and electronic applications. With 11 contacts arranged in a single row and a 5 mm pitch, this terminal block facilitates precise and compact PCB connectivity.

Its green polyamide housing provides excellent durability and resistance to environmental factors. Rated for a nominal current of 13.5 A and a voltage endurance of 400 V (III/2 category), it is well suited for demanding circuit requirements.

Wire connection is achieved using a screw connection method equipped with a tension sleeve, ensuring reliable and secure cable retention. The terminal block accommodates a wide range of wire sizes from 0.14 mm² to 1.5 mm² or 16 AWG to 26 AWG, covering various wiring scenarios.

The mounting method utilizes wave soldering, and the conductor to PCB connection is angled at 45°, providing ease of assembly and maintenance. The linear pin layout features a solder pin length of 3.5 mm, optimizing the electrical contact quality.

This product complies with important international standards such as China RoHS, CSA, cULus, EU REACH SVHC, and EU RoHS, assuring safety and environmental compliance. Manufactured in Germany, it meets high industrial quality benchmarks.

Designed with 11 contacts in a single row configuration. Features a 5 mm pitch spacing suitable for PCB mounting. Constructed with durable green polyamide housing material. Supports nominal current up to 13.5 amperes and voltage up to 400 volts.

Compatible with wire sizes ranging from 0.14 mm² to 1.5 mm² (16 AWG to 26 AWG). Uses screw connection method with tension sleeve for secure wiring. Mounting is by wave soldering with a 45° conductor to PCB connection angle.

Pin layout is linear with a solder pin of 3.5 mm length. Complies with international RoHS and safety standards.

This PCB terminal block is ideal for industrial, automation, electronic manufacturing, and power connection applications where reliable and compact wiring solutions are required. EnvMart offers this high precision terminal block ensuring quality and compliance in critical electronic assemblies.
