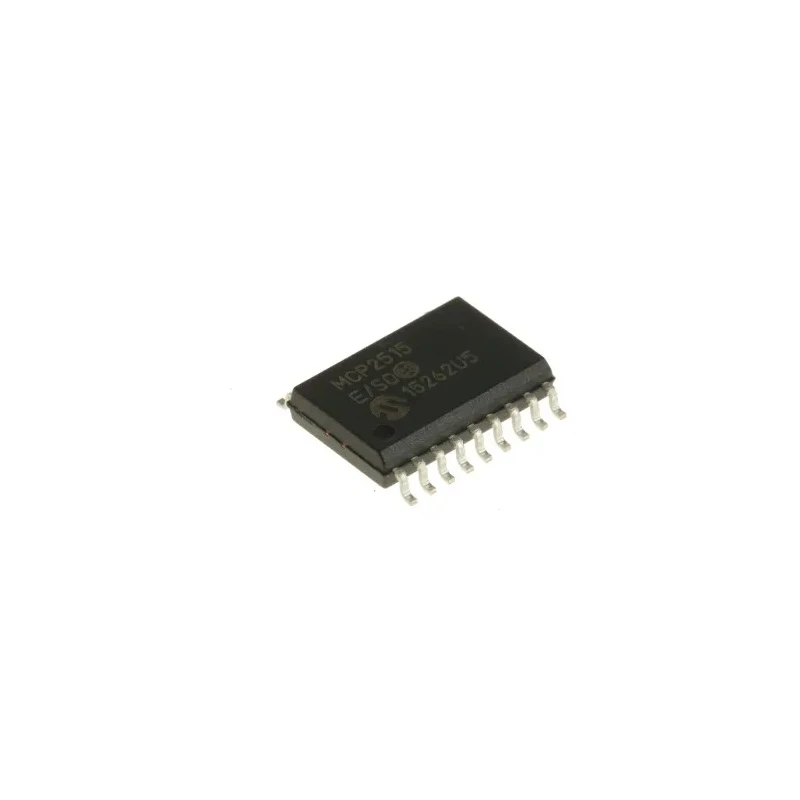

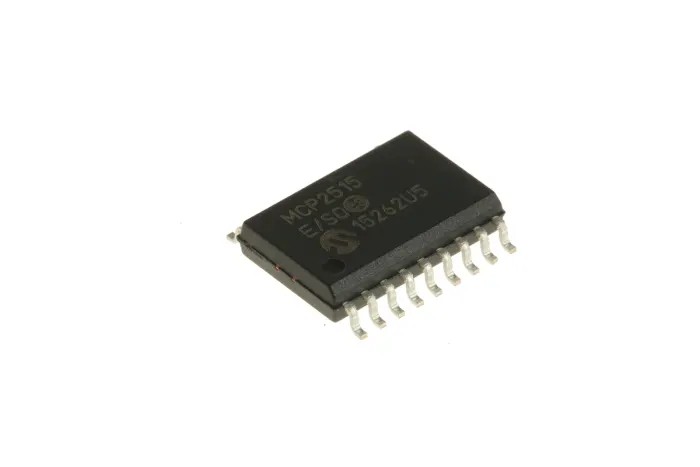

Microchip CAN Controller 1 Mbps 18-Pin SOIC MCP2515-E/SO

Microchip MCP2515-E/SO is a stand-alone CAN Controller optimized for data communication at 1 Mbps speed within Controller Area Network (CAN) systems. Housed in a compact 18-Pin SOIC surface mount package, it provides an efficient, high reliability solution for automotive and industrial control systems.

Power efficiency is ensured through a low supply current of 10mA and support for power down modes including sleep and standby. The operating voltage range (2.7V to 5.5V) allows compatibility with diverse electronic systems. Designed to perform reliably across a wide temperature range from -40°C to 125°C, it meets stringent automotive standards (AEC-Q100) and environmental compliance such as RoHS.

The device serves a single transceiver CAN 2.0B interface, enabling robust and fast communication protocols essential for embedded networked applications. Its small form factor (11.53 mm length × 7.49 mm width × 2.31 mm height) in the SOIC package facilitates easy PCB mounting and integration into compact electronic circuits.

Typical applications include automotive systems, industrial automation, manufacturing controls, and embedded devices where reliable CAN network communication is critical. The MCP2515-E/SO is designed to enhance production efficiency by providing a ready-to-use product supplied in trays for insertion into machinery.

This CAN Controller supports a maximum data rate of 1 Mbps. It features a single transceiver suitable for CAN 2.0B interface. The device operates with a supply voltage range from 2.7V to 5.5V. Power consumption is low with a supply current of 10mA.

It supports power down modes including sleep and standby for efficiency. Operating temperature ranges from -40°C to 125°C, suitable for automotive and industrial applications. The compact SOIC package measures 11.53 mm in length, 7.49 mm in width, and 2.31 mm in height.

Compliant with RoHS and automotive standard AEC-Q100 for quality assurance. Ideal for industrial, automotive, and embedded system applications requiring robust CAN communication. Surface mount type ensures easy PCB integration for embedded controller solutions.
