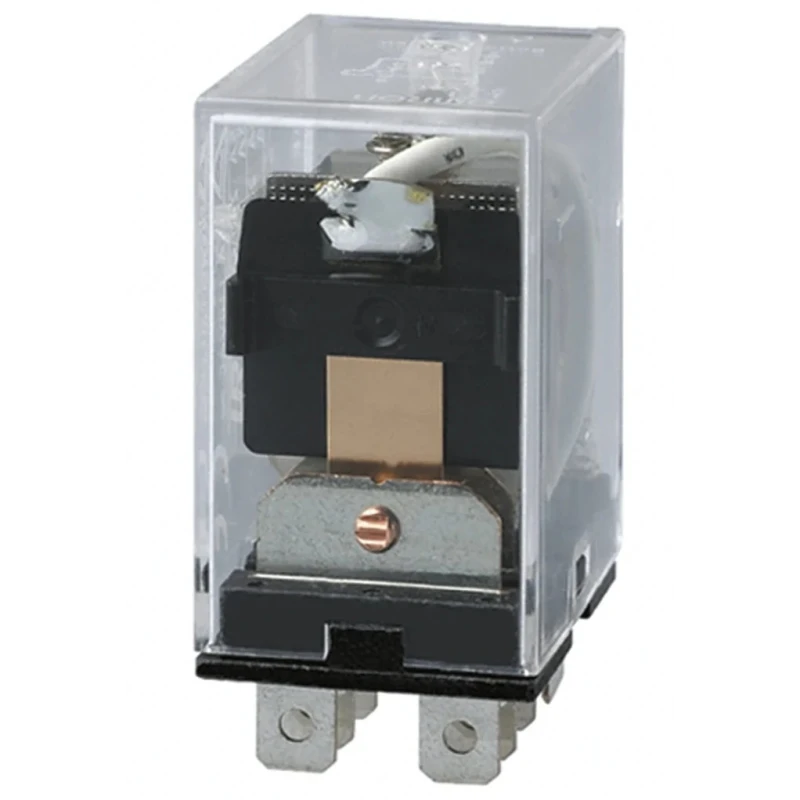

Omron Power Relay with 120V AC Coil Voltage, 15A Switching Current, SPDT Contact Configuration LY1 110/120VAC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Length | 21.5mm |
| Model | LY1 110/120VAC |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | LY1 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Plug-In |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 4.4kΩ |
| Coil Voltage | 120V ac |
| Switching AC Voltage | 125V |
| Coil Power | 1.1W |
| Switching Power | 1.1W |
Key Features
- Features a 120V AC coil rated at 1.1 W for efficient low-power control circuitry.
- Silver alloy contacts support switching currents up to 15A for reliable load management.
- Plug-in terminal design enables quick replacement and maintenance in panels and sockets.
- Operates reliably within a temperature range of -25°C to 55°C for typical industrial environments.
- Contact resistance of 50 mΩ assists in precise load planning and voltage drop assessment.
- UL and CSA safety approvals ensure compliance with North American standards.
- Suitable for motor control, lighting circuits, and signal routing in automation systems.
Product Description
Omron LY1 110/120VAC power relay features a 120V AC coil voltage and supports a 15A switching current with SPDT contact configuration. This compact electromechanical relay is designed for use in industrial control and automation systems, providing isolation between low voltage control circuits and switched loads.
The relay consumes only 1.1W coil power with a coil resistance of 4.4kΩ, ensuring predictable coil drive requirements. Its silver alloy contacts are suitable for switching loads up to 15 amperes at both AC and DC voltages up to 125V, offering durability and efficient electrical performance. The plug-in terminal style simplifies installation and replacement, making maintenance easy in panel-mounted or socketed setups.
Operating reliably between -25°C and 55°C, the LY1 110/120VAC relay is ideal for use in typical indoor industrial environments including factory automation, building lighting control, and signal routing in test and measurement setups. UL and CSA certifications guarantee recognized safety standards for commercial and industrial applications.
The relay's modest dimensions of 21.5mm length, 36mm width, and 28mm height enable compact panel design without compromising performance. The low contact resistance of 50mΩ reduces voltage drop and heating, facilitating efficient high-current switching operations. Its construction with silver alloy contacts enhances wear resistance and electrical conductivity.
Compact design with 120V AC coil and SPDT contacts. Rated for 15A switching current at 125V AC and DC voltages. Plug-in terminal type for rapid replacement and maintenance. Wide operating temperature range from -25°C to 55°C.
UL and CSA approvals for safety and reliability. Suitable for motor control, lighting circuits, and automation applications. Silver alloy contacts with low 50mΩ contact resistance.
This Omron power relay is essential for industrial automation, electrical panels, and control systems requiring reliable and efficient switching capabilities. Explore more power relay options and industrial electrical components in the Electronics & Electricals category at EnvMart.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 120V AC.
This model supports a maximum switching current of 15A.
The dimensions of the relay are 21.5mm in length, 36mm in width, and 28mm in height.
It features a Single Pole Double Throw (SPDT) contact configuration.
The contact resistance is 50 mΩ, which helps in reducing voltage drop.
The relay operates reliably within a temperature range of -25°C to 55°C.
It uses a plug-in terminal type for easy installation and maintenance.
The contacts are made of silver alloy, which enhances conductivity and wear resistance.
It has UL and CSA approvals, ensuring compliance with North American safety standards.
The coil power consumption is 1.1W, which is efficient for low-power control circuitry.
This relay is suitable for motor control, lighting circuits, and signal routing in automation systems.
The coil resistance is 4.4kΩ, which is important for predictable coil drive requirements.
