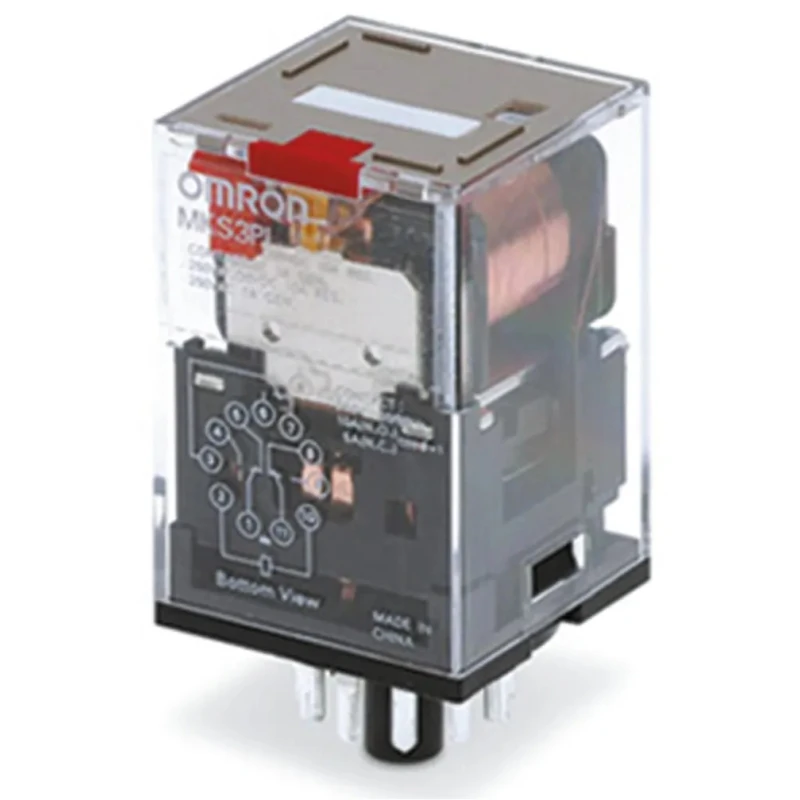

Omron Power Relay 120V AC Coil Voltage 10A Switching Current 3PDT Plug-In Terminal MKS3PIN-5 120VAC

Omron MKS3PIN-5 120VAC Power Relay is a high-quality electromagnetic plug-in relay designed for industrial automation and electrical control systems. Featuring a 120V AC coil voltage and 3PDT (three-pole double-throw) contact configuration, this relay can manage multiple circuits simultaneously, making it ideal for complex control panel applications and electromechanical timer assemblies.

The relay consumes a low power coil of 2.7 watts with a coil resistance of 932 ohms, providing energy efficiency and reliable operation. Silver alloy contact faces enhance electrical conductivity while offering excellent wear resistance, supporting switching currents up to 10 amperes. It is rated for switching voltages up to 250V AC and DC, suitable for a variety of industrial and automation environments.

Its plug-in terminal type allows easy installation and rapid replacement within sockets or bases, streamlining maintenance. With compact dimensions (34.5mm height and length, 53.3mm width), it optimizes space in relay racks or control cabinets. The relay operates reliably in a wide temperature range from -40°C to 60°C, supporting use in diverse industrial indoor conditions.

Contact resistance is minimized at 50 milliohms, reducing voltage drops and heating under load, ensuring operational stability. Certified to UL and CSA standards, the relay meets recognized safety requirements for commercial and industrial installations.

Equipped with a 120V AC coil consuming 2.7W for efficient power usage. Plug-in terminal design allows for rapid installation and replacement. Silver alloy contacts offer high conductivity and durability. Capable of switching voltages up to 250V AC and DC circuits.

Operates reliably within a temperature range of -40°C to 60°C. Compact dimensions of 34.5mm (H) x 53.3mm (W) x 34.5mm (L) optimize panel space. Coil resistance of 932Ω ensures predictable energization characteristics. Contact resistance minimized to 50mΩ to reduce voltage drop and heating.

Tested and approved to UL and CSA safety standards for commercial systems compliance.

This relay finds wide applications in industrial machine control, signal routing in automated test equipment, electromechanical timers, sequencer modules, and control panels requiring simultaneous multiple switching paths. It serves as a reliable component for electrical, automation, manufacturing, and testing industries, providing robust performance under varied operating conditions.
