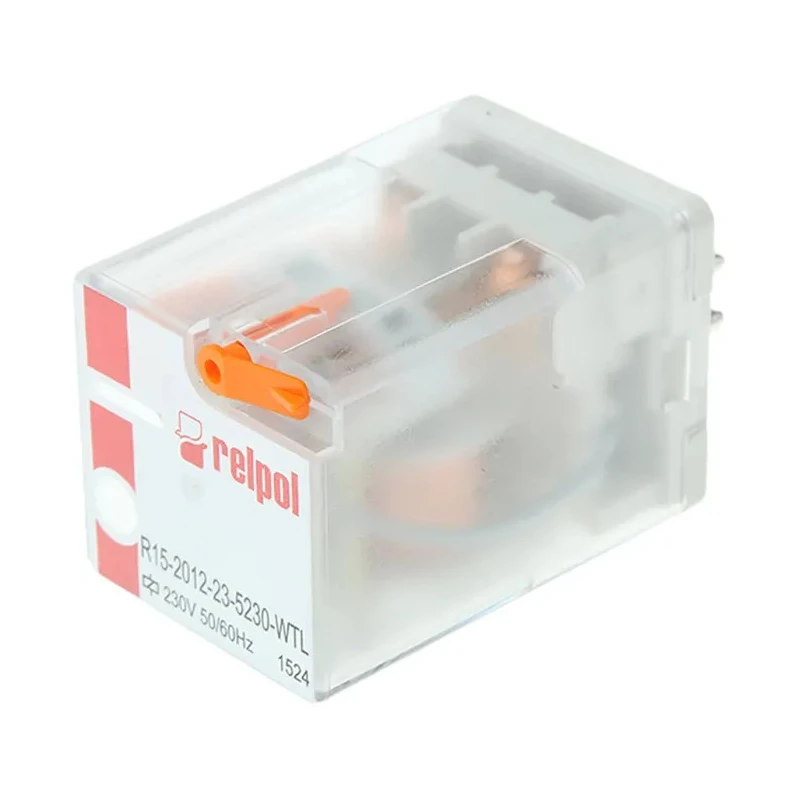

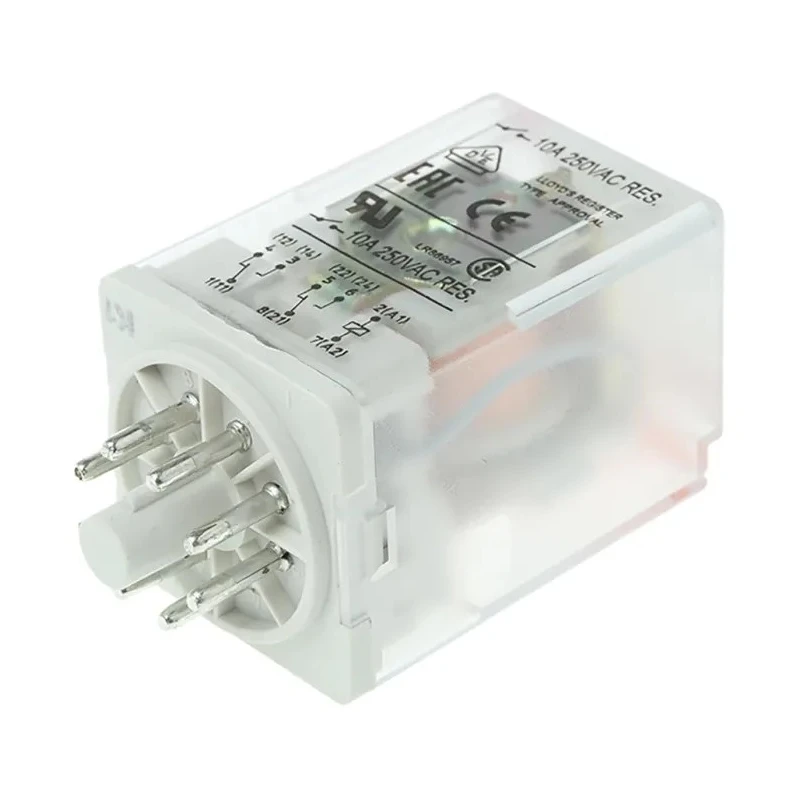

Relpol Power Relay with 230V AC Coil, 10A Switching Current, DPDT Contact Configuration, Silver Alloy R15-2012-23-5230-WTL

Relpol R15-2012-23-5230-WTL is a high-quality power relay designed for a broad range of industrial automation, electrical, and control system applications. It features a 230V AC coil and supports a switching current of up to 10A with a Double Pole Double Throw (DPDT) contact configuration. The relay is equipped with silver alloy contacts ensuring excellent conductivity and operational reliability across electrical circuits.

This relay employs a plug-in terminal type which allows for straightforward mounting and quick replacement in plug-in sockets equipped with standard WT features including a mechanical indicator and lockable front test button. The compact form factor of 35mm length, 35mm height, and 54.4mm width enables its integration in space-constrained panels and assemblies.

The coil resistance of 7.1 kΩ and coil power of 2.8W optimize energy consumption during operation. Capable of switching DC voltages up to 24V and AC voltages up to 440V, the relay ensures compatibility with diverse electrical control environments. It performs reliably in operating temperatures ranging from -40°C to 55°C, making it suitable for demanding industrial conditions.

This product meets UL, UR, and CSA certification standards, guaranteeing safety and reliability in usage. Manufactured in Poland, it embodies quality construction with environmentally safe, cadmium-free contacts.

230V AC coil voltage for standard industrial applications. DPDT contact configuration for multi-circuit switching. Silver alloy contact material ensures durability and performance. Plug-in terminal type for easy installation and maintenance.

Compact dimensions suitable for various mounting scenarios. Low coil power consumption at 2.8W for energy efficiency. Robust operation across a wide temperature range. UL, UR, CSA approvals for safety assurance. Cadmium-free contacts for eco-friendly compliance.

This Relpol Power Relay is suitable for electrical control systems, industrial automation, manufacturing equipment, HVAC control panels, and similar applications requiring reliable switching under AC-powered coil control. Explore further robust relay options and related control components in the Electronics & Electricals category on EnvMart.
