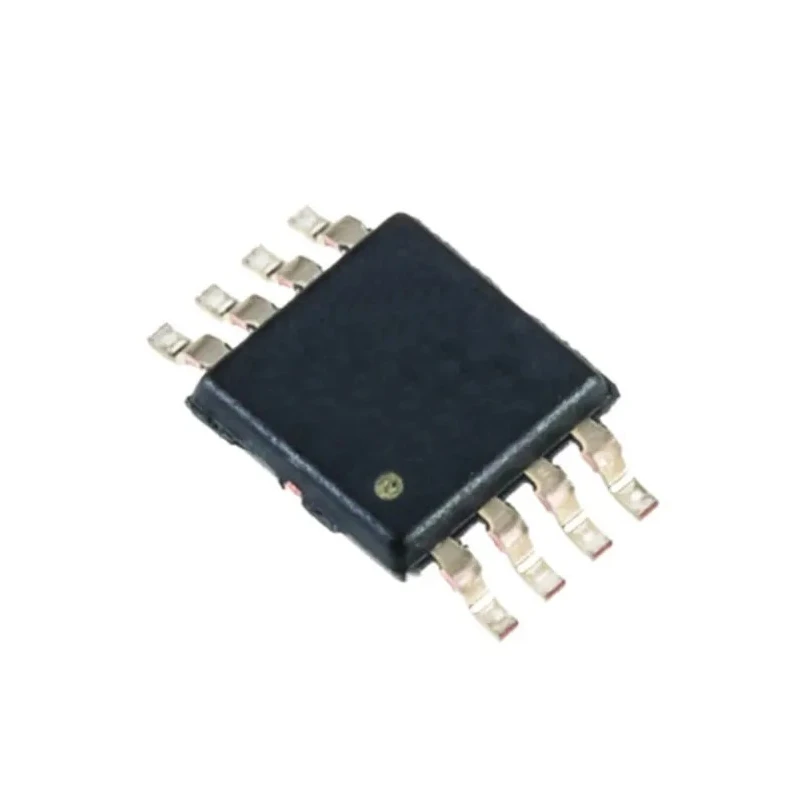

Texas Instruments 2-Bit Non-Inverting CMOS Bus Transceiver, 8-Pin VSSOP SN74AVC2T45DCUR

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 2-Bit Non-Inverting CMOS Bus Transceiver, 8-Pin VSSOP SN74AVC2T45DCUR

Name: Texas Instruments 2-Bit Non-Inverting CMOS Bus Transceiver, 8-Pin VSSOP SN74AVC2T45DCUR
Brand: Texas Instruments
SKU: 344815
Price: 20.22 USD
Availability: InStock



Category Bus Transceivers Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	850μm
Length	2.3mm
Model	SN74AVC2T45DCUR
Mount Type	Surface
Output type	3 State
Series	SN74AVC2T45
Maximum Operating Temperature	85°C
Package Type	VSSOP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	2
Pin Count	8
Maximum Supply Voltage	3.6V
Logic Family	AVC
Logic Function	Bus Transceiver
Minimum Supply Voltage	1.2V
Maximum High Level Output Current	-12mA
Maximum Propagation Delay Time @ CL	4.7ns
Maximum Low Level Output Current	12mA
Output Level	CMOS
Input Level	CMOS

Key Features

Supports 2 channels for efficient data transfer.
Non-inverting polarity ensures signal integrity.
Operates with a minimum supply voltage of 1.2V and maximum of 3.6V.
Three-state output type allows flexible bus control.
CMOS logic family and input/output levels provide low power consumption.
Surface mount design suitable for compact PCB assemblies.
Operating temperature range from -40°C to 85°C for industrial applications.
Low maximum propagation delay of 4.7 nanoseconds enhances performance.

Product Description

Texas Instruments SN74AVC2T45DCUR is a 2-bit non-inverting CMOS bus transceiver housed in an 8-pin VSSOP package, designed for surface-mount applications. It belongs to the AVC logic family, providing efficient and reliable signal transmission between data buses in electronic and semiconductor systems.

This bus transceiver supports two channels with CMOS input and output levels, operating within a supply voltage range of 1.2V to 3.6V. The device features three-state output for flexible bus control and low power consumption characteristics inherent to CMOS technology.

It is engineered to function over a wide temperature range from -40°C to 85°C, making it suitable for industrial, automotive, and commercial electronic environments. With a maximum propagation delay of 4.7ns, it enables fast data communication with integrity.

The compact 8-pin VSSOP package with dimensions of 2.3mm length and 850μm height allows for space-efficient PCB designs. Its maximum high and low level output currents are -12mA and 12mA respectively, supporting moderate output loads effectively.

This device is particularly valuable in applications requiring precise bus interfacing, signal buffering, and data line driving in semiconductor logic circuits, embedded systems, and communication hardware.

Supports 2 data channels enabling efficient bus communication. Non-inverting logic ensures signal accuracy without inversion. Operates with low voltage supply between 1.2V and 3.6V. Compact 8-pin VSSOP surface mount package for space-saving designs.

Wide operating temperature range from -40°C to 85°C suits industrial usage. Fast switching with propagation delay time of 4.7 nanoseconds. Three-state outputs provide bus control flexibility. CMOS input/output levels minimize power consumption.

Height of 850 μm and length of 2.3 mm optimize PCB footprint. Output current capability of ±12 mA supports moderate load driving.

Ideal for industrial electronics, semiconductor systems, embedded applications, and communication interface circuits. Explore a broad range of semiconductor devices compatible with your industrial and electronic design needs at EnvMart.
