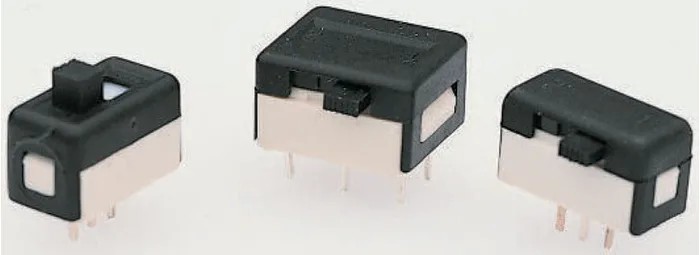

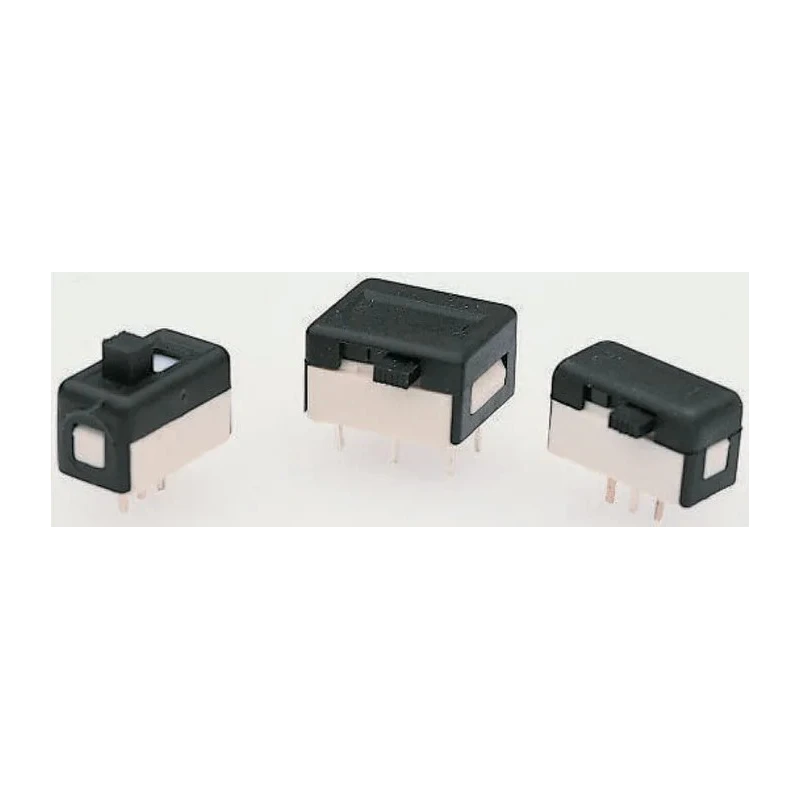

APEM PCB Slide Switch DPDT Latching 1A Fibreglass Reinforced Polyamide 25146NAB

APEM 25146NAB PCB Slide Switch DPDT Latching 1A is designed for reliable integration into electronic assemblies requiring precise control. With a double pole double throw (DPDT) contact configuration and latching operation, this switch provides versatile switching capabilities for diverse electrical circuits. The switch is mounted on printed circuit boards (PCBs) using through hole terminals, ensuring secure and stable connections.

The actuator is constructed from fibreglass reinforced polyamide, coupled with a PBT high temperature thermoplastic case, delivering excellent mechanical strength and resistance to soldering heat. It supports a switch contact current of 1A and operates within a contact DC voltage limit of 30V dc, suitable for control and signal switching applications.

Dimensional specifications include 14.1mm length, 7.5mm width, and 8.1mm depth, allowing compact footprint on printed circuit boards. The mechanical life expectancy is rated at 20000 operations, while the electrical life is specified at 10000 cycles, indicating durable performance under frequent switching conditions.

Operating temperature range from -40°C to 85°C supports use in various industrial and commercial environments. The switch is UL approved, meeting established safety and performance standards, making it ideal for industrial automation, electrical control panels, telecommunications, and instrumentation systems.

Double Pole Double Throw (DPDT) contact configuration provides versatile switching options. Latching operation ensures the switch holds its position after actuation. Rated for 1A switch contact current at 30V dc voltage.

Fibreglass reinforced polyamide actuator material offers durability and high temperature resistance. Compact dimensions: length 14.1mm, width 7.5mm, depth 8.1mm for efficient PCB integration. Mechanical life of 20000 operations ensures long term reliability.

Electrical life rated for 10000 cycles providing consistent performance. Through hole terminal type facilitates secure soldering to PCBs. Operates reliably within temperature range -40°C to 85°C. Certified to UL standards for quality assurance.

This switch is suited for use in electronics manufacturing, industrial automation systems, telecommunications, instrumentation, and other applications requiring robust and reliable PCB mounted sliding switches.
