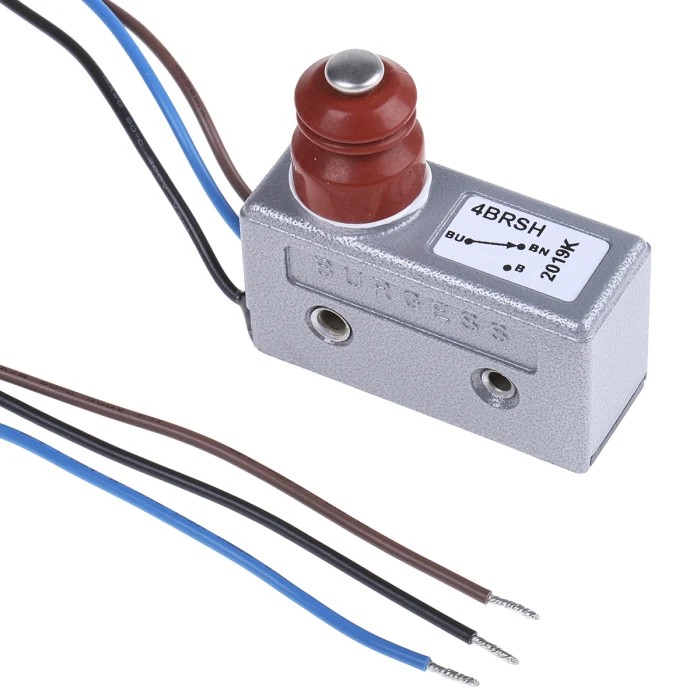

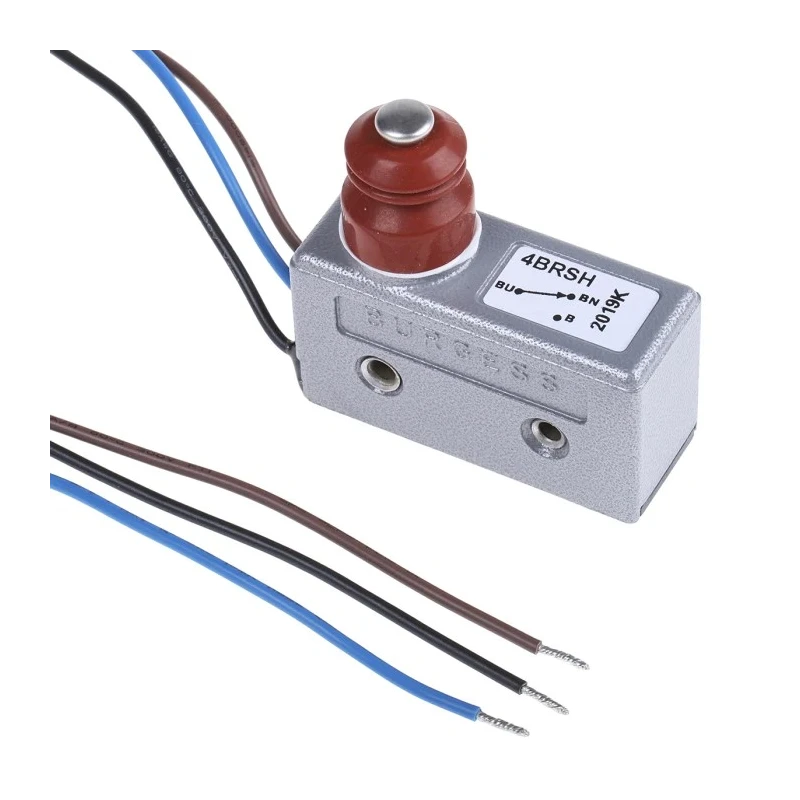

Saia-Burgess Plunger Micro Switch Pre-Wired Terminal 15A 250V AC SPCO Zinc Alloy Housing IP67 4BRSH
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Saia-Burgess |
| Operating Temperature Range | -40 to +85°C |
| Model | 4BRSH |
| Depth | 53mm |
| IP Rating | IP67 |
| Width | 29mm |
| Housing Material | Zinc Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Pre-Wired |
| Standards/Approvals | CSA, UL |
| Switch Contact Current | 15A |
| Operating Force | 7.2N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Snap Action |
| Saia-Burgess Micro SwitchBrand | Saia-Burgess |
Key Features
- Equipped with a plunger actuator type for precise operation.
- Features SPCO contact configuration for single pole changeover functionality.
- Constructed with a durable zinc alloy housing ensuring robustness.
- IP67 rated for superior protection against dust and water ingress.
- Operates efficiently in temperature ranges from -40°C to 85°C.
- Designed for a mechanical life of up to 1,000,000 operations.
- Compact dimensions of 29mm width and 53mm depth enable versatile mounting.
- Complies with CSA and UL standards ensuring quality and safety.
Product Description
Saia-Burgess 4BRSH Plunger Micro Switch is a premium snap action micro switch designed for demanding industrial and automation applications. With a pre-wired terminal and robust zinc alloy housing, it offers reliable performance under challenging conditions. Rated at 15A and 250 V AC, this micro switch ensures effective electrical switching capabilities with SPCO (Single Pole Changeover) contact configuration. The compact design with dimensions 29mm width by 53mm depth facilitates easy installation in confined spaces.
The 4BRSH model is sealed to IP54 for basic protection and pre-wired to IP67 standards, delivering excellent resistance against dust and water ingress, making it suitable for harsh environments. It operates smoothly over a wide temperature range from -40°C to 85°C, ensuring year-round functionality. The micro switch is rated for a mechanical life expectancy of up to 1,000,000 operations, signifying high durability and long service life.
The operating force required for actuation is 7.2N, providing consistent and precise switch response. Compliance with CSA and UL standards assures users of the switch's reliability and safety in electrical installations. Its features make it ideal for use in industrial automation, HVAC control systems, manufacturing equipment, and electrical control panels.
Plunger actuator type for accurate actuation. Pre-wired terminal simplifies installation process. Single Pole Changeover contact configuration. Zinc alloy housing for enhanced durability. IP67 rated for protection against dust and water.
Mechanical life expectancy of one million operations. Wide operating temperature range from -40°C to 85°C. Compact dimensions: 29mm width x 53mm depth. Certified to CSA and UL standards for safety compliance.
This micro switch is widely used in industrial and commercial applications requiring reliable and precise switching. It supports control in automated machinery, electrical switchgear assemblies, HVAC systems, and various manufacturing processes. Saia-Burgess products are known for their quality, precision, and engineering excellence, making the 4BRSH an economical and dependable choice for maintenance and design engineers.
Explore more Micro Switches and related electrical components in the Electronics & Electricals category of EnvMart for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of this micro switch is from -40°C to +85°C.
It features a Single Pole Changeover (SPCO) contact configuration.
This micro switch has a width of 29mm and a depth of 53mm.
It is rated for a maximum current of 15A.
The micro switch is rated IP67, providing protection against dust and water ingress.
It uses a plunger actuator type for precise operation.
The mechanical life expectancy of this micro switch is up to 1,000,000 operations.
The housing is constructed from durable zinc alloy.
Yes, it complies with CSA and UL standards for safety.
The operating force required for actuation is 7.2N.
It features a pre-wired terminal for simplified installation.
This micro switch is manufactured in Poland.
