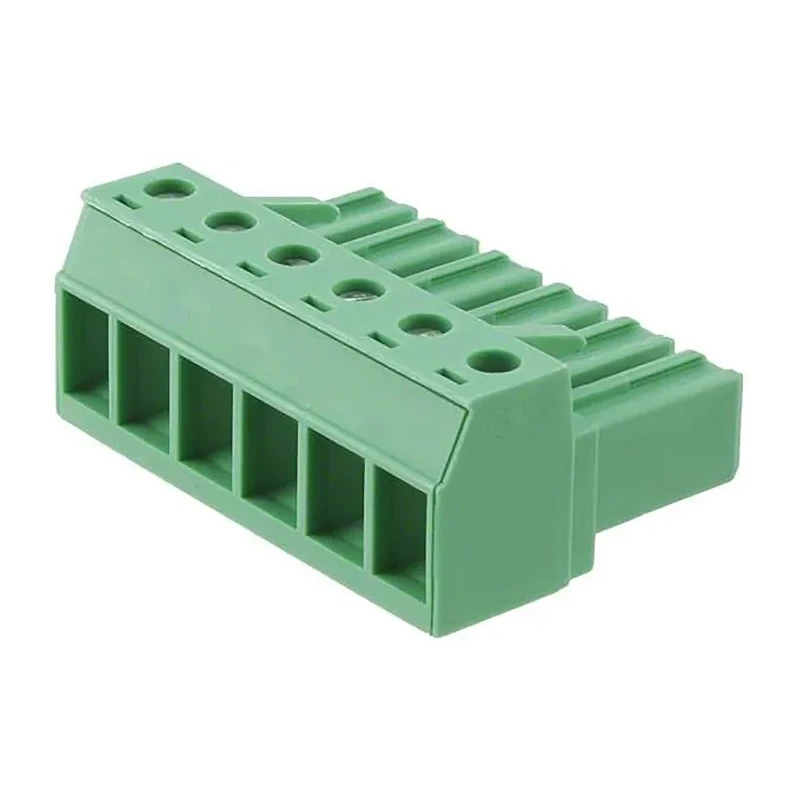

Phoenix Contact PC Series Pluggable Terminal Block 6-Contact 7.62 mm Pitch 1 Row 400V 20A Screw Connection Polyamide 1804946
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Horizontal |
| Current | 20A |
| Length | 30.7mm |
| Model | 1804946 |
| Depth | 18.1mm |
| Width | 45.7mm |
| Housing Material | Polyamide |
| Series | PC |
| Number of Rows | 1 |
| Pitch | 7.62mm |
| Number of Contacts | 6 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 10AWG |
| Wire Connection Method | Screw |
Key Features
- Rated current of 20 A and voltage of 400 V for robust electrical performance.
- Housing made of durable green polyamide material ensuring longevity.
- Supports wire sizes from 0.2 mm² to 4 mm² (24 AWG to 10 AWG).
- Compact dimensions with 30.7 mm length, 45.7 mm width, and 18.1 mm depth.
- Horizontal orientation with screw connection method for secure cable attachment.
- Universal 7.62 mm pitch suitable for various industrial and electronic designs.
- Features integrated double steel springs for additional safety against temperature and power fluctuations.
- Ideal for instrumentation, control and measurement, and industrial electronics applications.
Product Description
Phoenix Contact 1804946 PC Series pluggable terminal block offers a high-quality connection solution for electronic and industrial applications. This terminal block features 6 contacts arranged in a single row with a standard 7.62 mm pitch, designed for reliable electrical connections up to 20 A and 400 V.
The housing is constructed from robust green polyamide, providing excellent durability and resistance to industrial environments. Its screw connection method ensures a secure hold on wires, supporting a wide range of wire sizes from 0.2 mm² (24 AWG) up to 4 mm² (10 AWG).
Integrated double steel springs add an extra layer of safety by compensating for temperature and power fluctuations, minimizing low-temperature rise with a maximum contact force. The compact footprint with 30.7 mm length, 45.7 mm width, and 18.1 mm depth suits space-constrained PCB layouts effectively.
This pluggable terminal block series is widely used in instrumentation, control systems, measurement devices, and industrial electronics. Manufactured to high quality in Germany, it complies with the demanded reliability standards in professional environments.
Installation is straightforward, with Phoenix Contact recommending stripping 7 mm of wire jacket before insertion and fixing cable using the M3 screw. Its horizontal orientation facilitates easy integration in various assemblies.
Rated for 20 A current and 400 V voltage. Supports wire sizes from 0.2 mm² to 4 mm² (24 AWG to 10 AWG). Durable polyamide housing in green color for easy identification. Screw connection method for reliable wire retention.
Single row with 6 contacts and 7.62 mm pitch. Designed to minimize temperature rise and ensure safety. Suitable for instrumentation, control, and industrial electronics applications. Explore the Phoenix Contact range at EnvMart for advanced electronics connectivity solutions tailored for professional use.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 20 A and a voltage of 400 V.
The housing is made of durable green polyamide material.
It supports wire sizes from 0.2 mm² (24 AWG) to 4 mm² (10 AWG).
The dimensions are 30.7 mm in length, 45.7 mm in width, and 18.1 mm in depth.
This terminal block features 6 contacts arranged in a single row.
It has a standard pitch of 7.62 mm.
It uses a screw connection method for secure wire attachment.
The terminal block is designed for horizontal orientation.
It is manufactured in Germany.
It is suitable for instrumentation, control systems, measurement devices, and industrial electronics applications.
It features integrated double steel springs that compensate for temperature and power fluctuations, minimizing low-temperature rise.
It is recommended to strip 7 mm of wire jacket before insertion and to fix the cable using the M3 screw.
