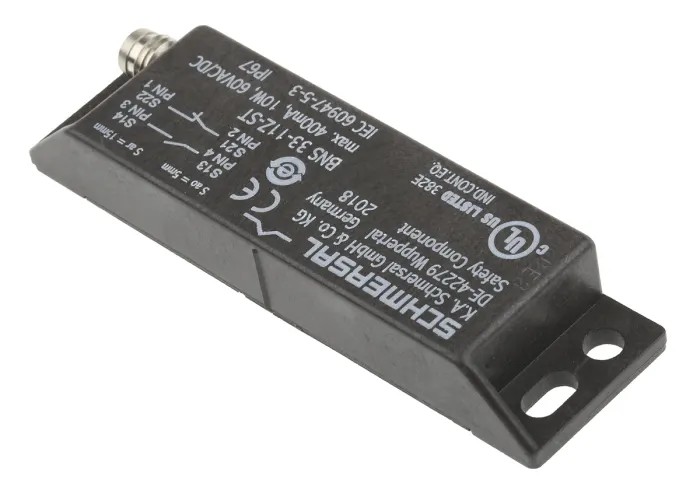

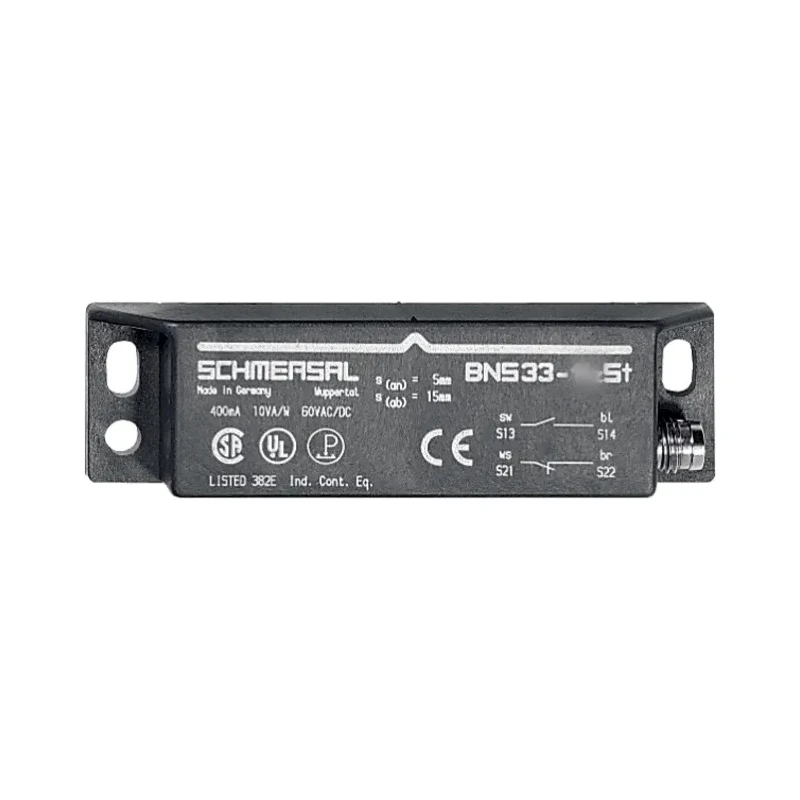

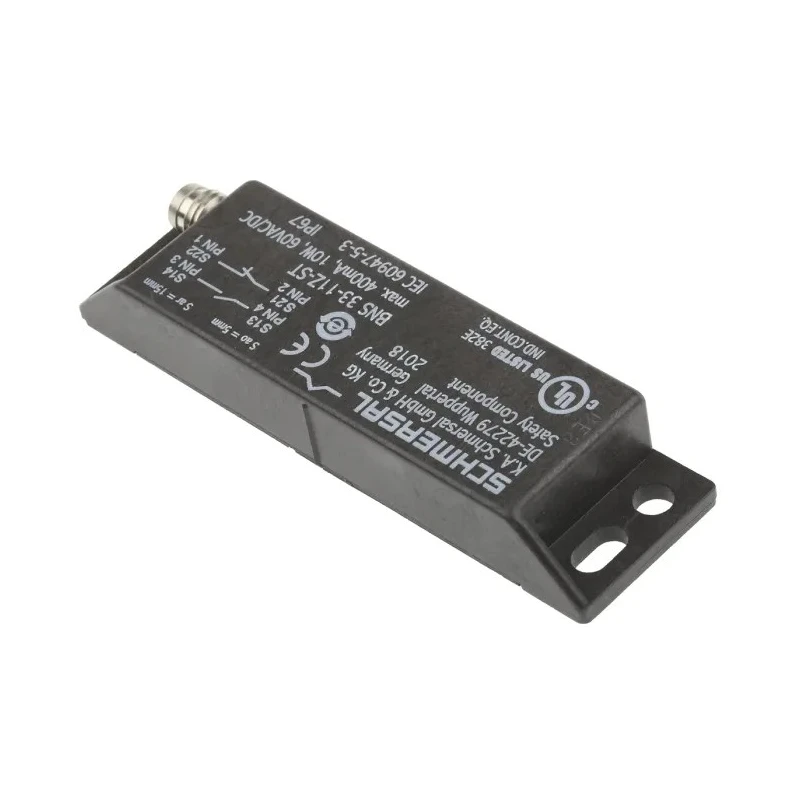

Schmersal BNS33 Series Magnetic Safety Switch Plastic Housing NO NC M8

Free Delivery in India | Lowest Global Shipping Charges

Schmersal BNS33 Series Magnetic Safety Switch Plastic Housing NO NC M8

Name: Schmersal BNS33 Series Magnetic Safety Switch Plastic Housing NO NC M8
Brand: SCHMERSAL
SKU: 343083
Price: 20.22 USD
Availability: InStock



Category Safety Switch Brand SCHMERSAL Condition New

Specifications

Country of Origin	Germany
Brand	Schmersal
Length	88mm
Model	BNS33
Connection Type	M8
Depth	13mm
IP Rating	IP67
Width	25mm
Housing Material	Plastic
Series	BNS33
Actuator Type	Coded
Safety Category	4
Switching Current	0.25A
Terminal type	M8
Sensor Principle	Magnetic
Body Style	Rectangular
Standards/Approvals	cULus, EN, EAC, IEC, BG
Housing Colour	Black
Safety Contacts	NO, NC
Number of Auxiliary Contacts	3
Switching Distance	18 mm

Key Features

Robust plastic rectangular housing ensures durable use in industrial environments.
Offers normally open (NO) and normally closed (NC) safety contacts with 3 auxiliary contacts.
Operates with a coded magnetic actuator ensuring secure non-contact switching.
IP67 rated ingress protection makes it dust-tight and water-resistant for up to 30 minutes of submersion.
Facilitates simple connection via a standard 4-pin M8 connector.
Switching current rating of 0.25A supports low-power control applications.
Insensitive to transverse misalignment, easing installation on doors and machine access panels.
Compact dimensions of 88mm length, 25mm width, and 13mm depth fit discreet mounting locations.

Product Description

Schmersal BNS33 BNS 33-11Z-ST Magnetic Safety Switch features a durable plastic rectangular housing designed for industrial safety applications. It utilizes a magnetic sensor principle and coded actuator technology for secure non-contact switching of safety circuits at up to 100V AC/DC and a switching current of 0.25A. This safety switch incorporates normally open (NO) and normally closed (NC) contacts along with 3 auxiliary contacts for versatile control integration.

The unit is designed for robust operation with an IP67 rating to withstand dust ingress and temporary water immersion, making it suitable for demanding environments such as assembly lines and machine access panels in food processing and manufacturing industries. Its compact dimensions (88mm length, 25mm width, 13mm depth) allow for concealed mounting, and it uses a standard M8 4-pin connector for straightforward and reliable connection.

Installation is simplified by the device's insensitivity to transverse misalignment of the coded actuator, preventing bypass with standard magnets and ensuring high safety standards. It is certified to international standards including cULus, EN, EAC, IEC, and BG, demonstrating compliance with critical safety regulations.

Common applications include restricting access to hazardous areas, monitoring doors and windows, and safeguarding machinery. The plastic housing provides electrical insulation and mechanical protection, enhancing operational safety in industrial, manufacturing, and food processing environments.

Rectangular plastic housing offers durable protection. NO and NC contacts with 3 auxiliary contacts for control versatility. Magnetic coded actuator prevents bypass and ensures security. IP67 rating allows dust-tight and water-resistant operation.

Standard M8 connector simplifies installation. Certified to global safety standards for wide acceptance. Compact size suits concealed mounting needs. Operates from -25°C to +70°C in diverse environments. Ideal for assembly lines, food processing, and hazardous area access.
