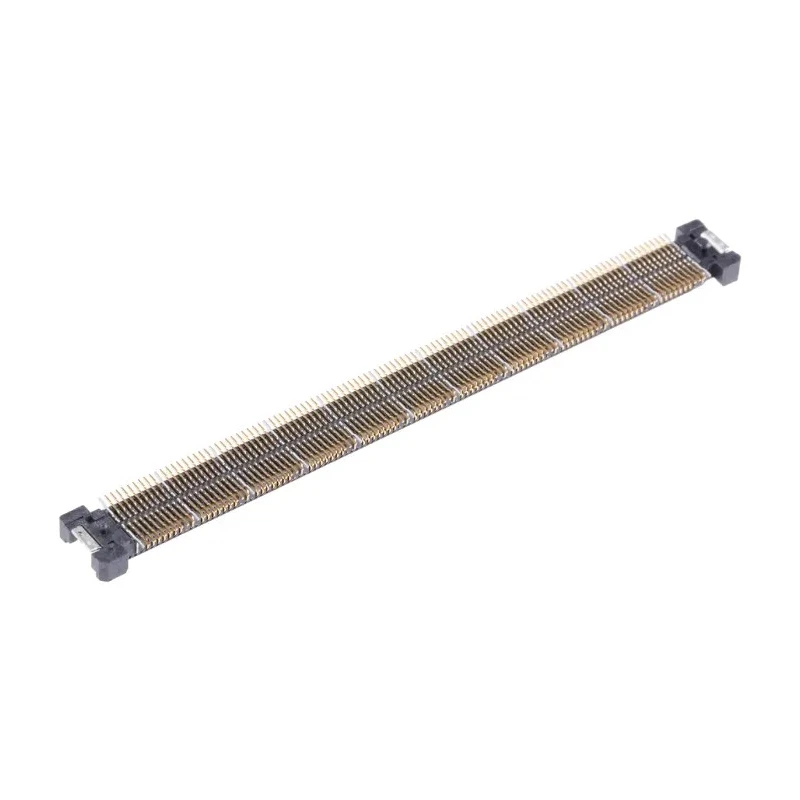

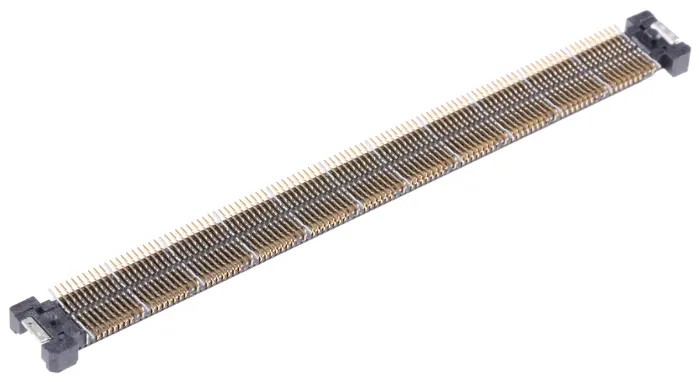

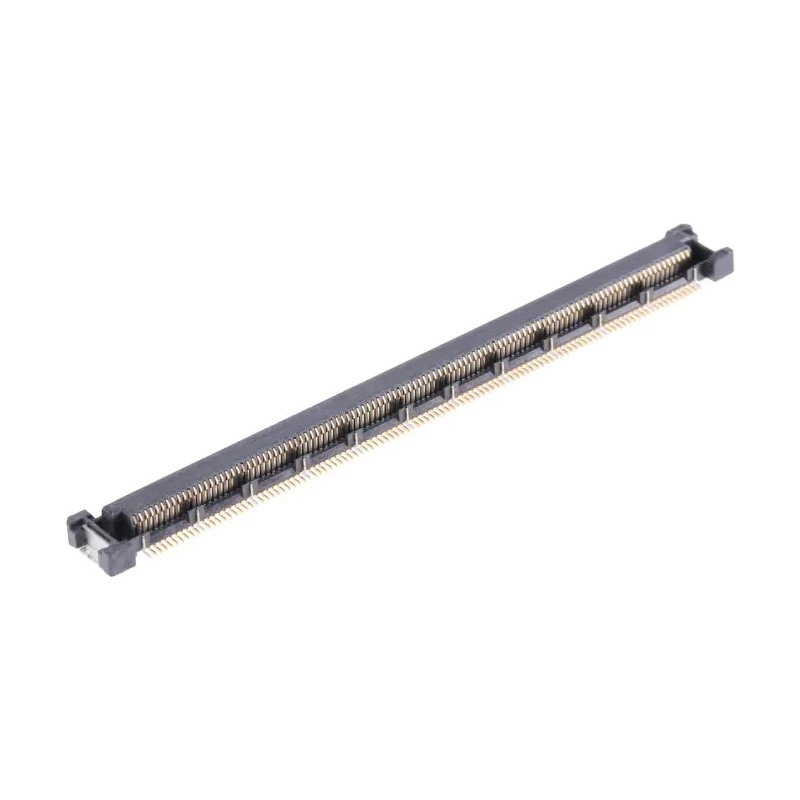

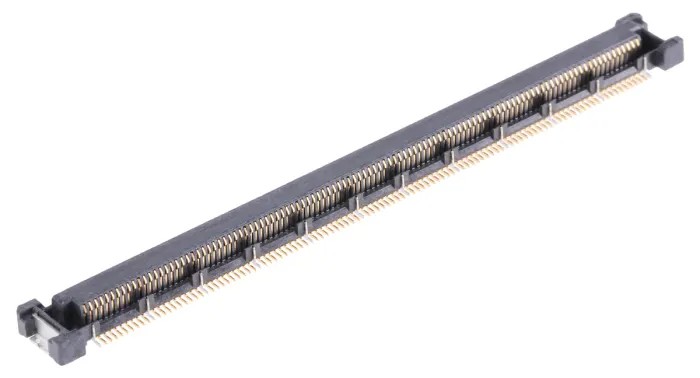

TE Connectivity Free Height Series Straight Surface PCB Socket, 220-Contact, 2 Row, 0.5 mm Pitch Solder 3-6318490-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | Free Height |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 220 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Complies with PICMG COM Express standard for embedded module interfaces.
- Polarized thermoplastic housings prevent mismating of connectors.
- Solder pegs ensure secure retention on the PCB surface.
- Supports 500mA current and 50V operating voltage.
- Suitable for downsizing applications requiring parallel board stacking.
- Gold-plated copper contacts offer reliable conductivity and corrosion resistance.
- Operating temperature range from -30°C to 85°C ensures durability.
- Ground contacts and shields improve EMC performance.
Product Description
TE Connectivity 3-6318490-6 Free Height Series Straight Surface PCB Socket is a 220-contact, 2-row connector designed with a fine 0.5 mm pitch for space-saving board-to-board interconnections. Its thermoplastic polarized housing minimizes the risk of mismating, and solder pegs provide firm attachment to the PCB surface. This connector meets the PICMG COM Express standard, making it suitable for embedded module carrier card interfaces.
Featuring gold-plated copper female contacts, the socket supports a current rating of 500mA at 50V, withstanding operating temperatures ranging from -30°C to 85°C. Grounding contacts and shields enhance electromagnetic compatibility, ensuring reliable performance in demanding applications.
These connectors are available in heights of 4mm, 5mm, and 8mm, enabling versatile PCB spacing configurations. Typical uses include home security systems, consumer electronics, data storage, telecommunications equipment, custom PCB boards, and industrial computing devices.
High-density 0.5 mm pitch saves valuable PCB space. Polarized housings prevent incorrect connections. Solder pegs secure connector firmly to PCB. Gold-plated copper female contacts ensure excellent conductivity. Suitable for operating temperatures from -30°C to 85°C.
Designed for PICMG COM Express compliant interfaces. Ground contacts and shields improve signal integrity. Supports up to 500mA current and 50V voltage. Versatile heights for different PCB stacking needs.
This TE Connectivity PCB Socket is a new product engineered for industrial, commercial, and electronics manufacturing environments. Suitable for high-reliability applications requiring compact, robust board-to-board connectivity. Explore our Electronics Components category to find compatible connectors and accessories for your projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 500mA.
The operating voltage for this model is 50V.
It can operate within a temperature range of -30°C to 85°C.
This connector has a total of 220 contacts.
The pitch size of this PCB socket is 0.5 mm.
This connector uses surface mounting.
The contacts are made of copper and are gold-plated for conductivity and corrosion resistance.
Yes, this socket complies with the PICMG COM Express standard for embedded module interfaces.
It features a thermoplastic polarized housing to prevent mismating.
This connector is available in heights of 4mm, 5mm, and 8mm.
It is suitable for applications such as home security systems, consumer electronics, data storage, and telecommunications equipment.
The orientation of this PCB socket is straight.
