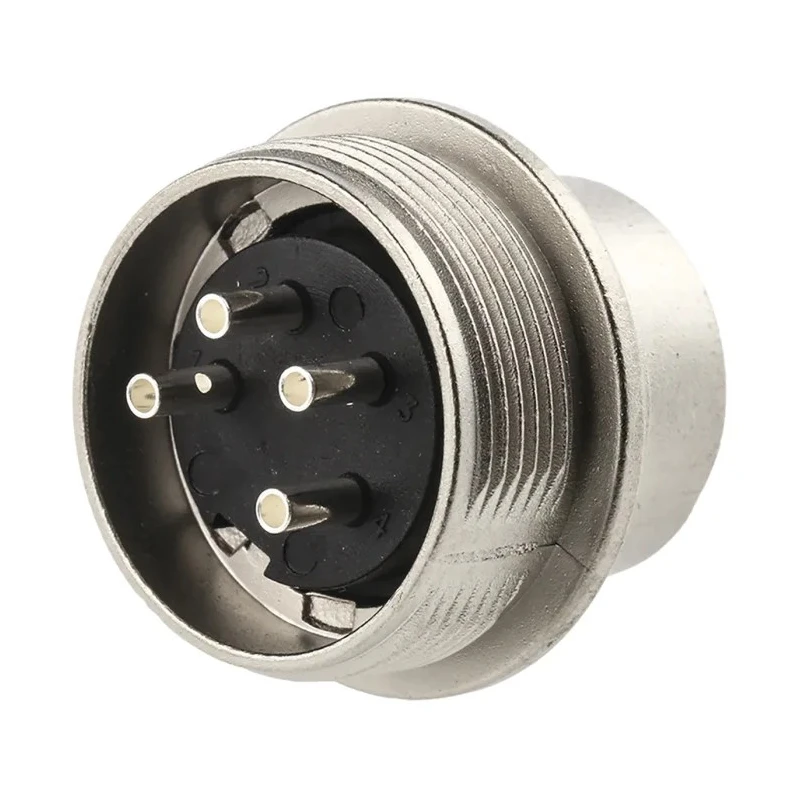

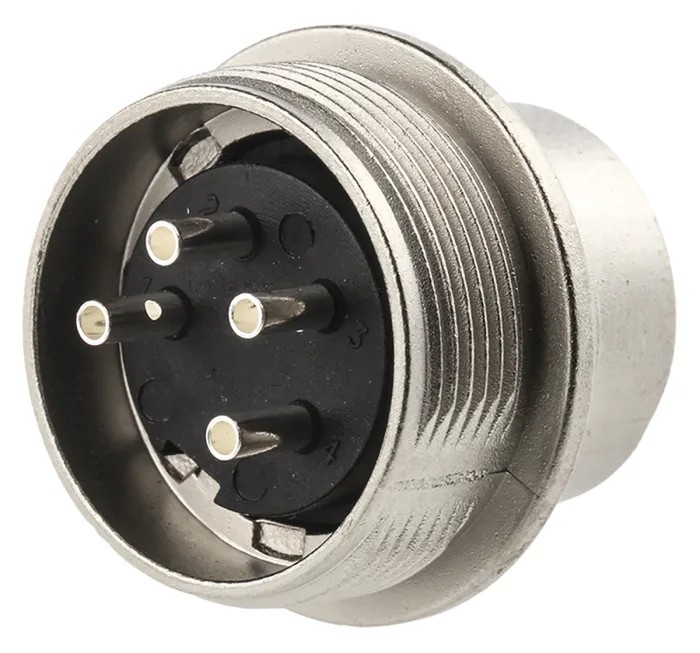

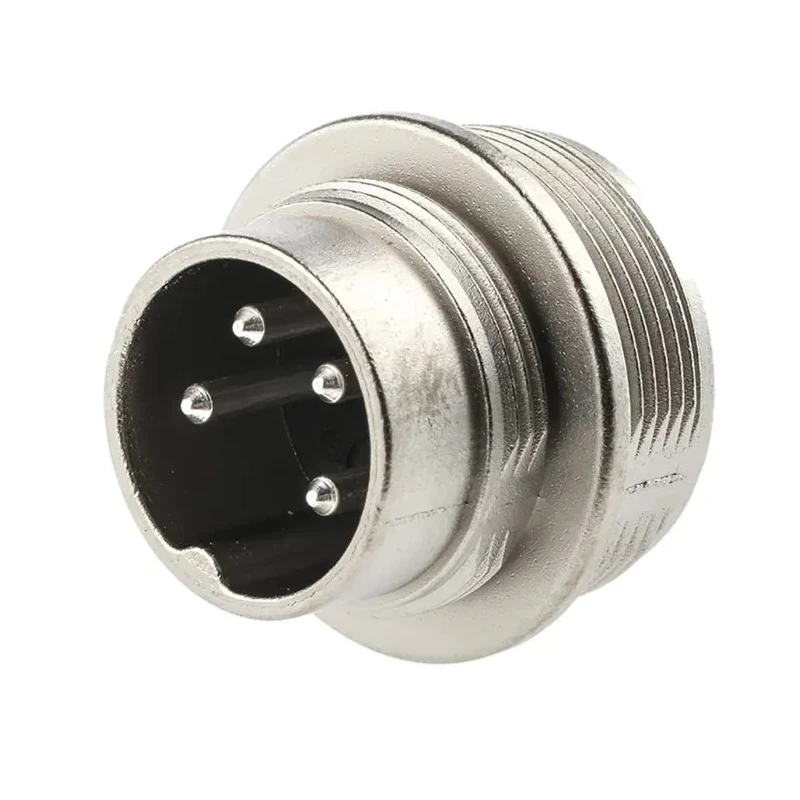

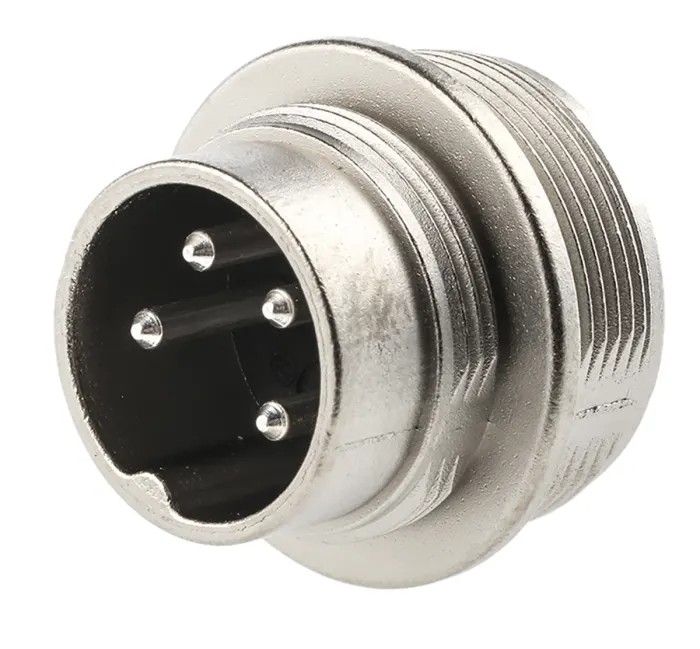

Amphenol Industrial signalmate C091 4 Pole Straight M16 DIN Plug 5A 300V IP40 Panel Mount T3302 000 RS

Amphenol Industrial T3302 000 RS 4 Pole Straight M16 DIN Plug is a high-quality panel mount circular connector designed for industrial and electronic applications requiring reliable electrical connectivity. Rated for 5 amperes and 300 volts, this DIN plug provides IP40 ingress protection ensuring adequate resistance against solid particle ingress in controlled environments. The plug features a screw-on mating type ensuring secure mechanical and electrical connection with mating receptacles.

The housing combines durable polymer and metal materials to deliver mechanical stability and resilience suitable for industrial use. Silver plating on the brass contacts enhances corrosion resistance and ensures long-lasting low-resistance electrical performance. Operating temperature limits range from -40°C to +85°C making it suitable for harsh and diverse environmental conditions.

With four contact poles arranged in a straight orientation and male contact gender, this M16 sized connector is optimized for panel mounting with a front-mounting ring/hex nut providing easy and secure installation. The solder termination type allows for reliable wiring connections with internal metal strain relief for durability under mechanical stress.

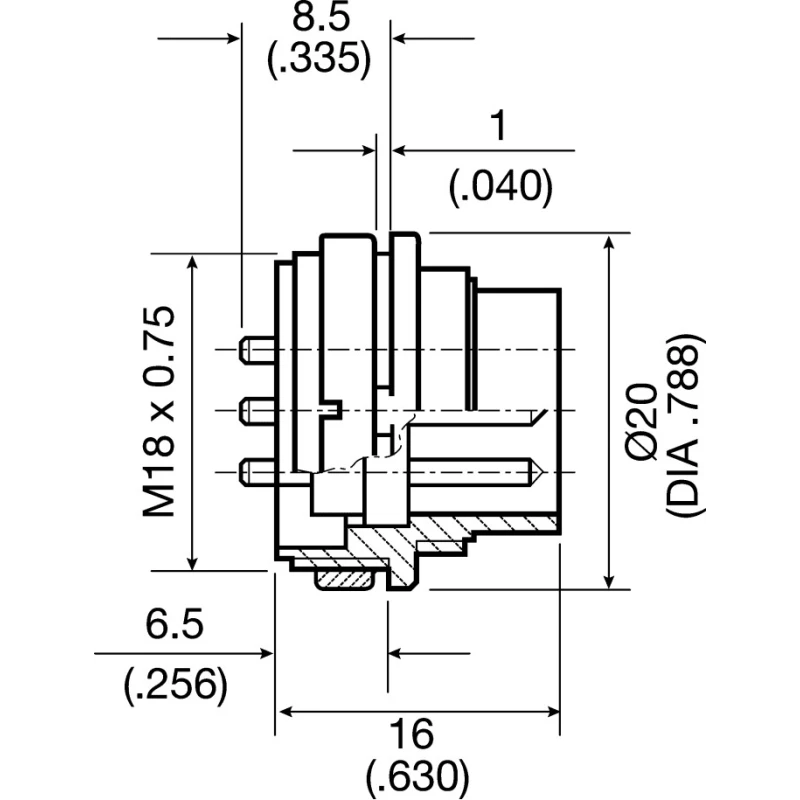

Designed to meet the signalmate C091 series standards, this connector complies with DIN EN 60130-9 and IEC 60130-9 requirements for circular connectors with metal screw coupling and plastic backshell. Its compact depth of 16 mm supports space-saving panel installations. The product is manufactured in China and supplied as new, suitable for industrial electronics, manufacturing, automation control, and signal transmission applications.

Features a screw-on mating type for secure connections. Constructed with polymer and metal housing materials. Silver-plated brass contacts ensure reliable conductivity. Operates reliably from -40°C to 85°C temperature range.

Four contact poles provide stable electrical contact. Solder termination type allows for robust wiring. Designed for straight orientation and male contact gender. Complies with DIN EN 60130-9 / IEC 60130-9 relevant standards.

Compact M16 connector size suitable for panel mounting. Originates from China, supplied as a new product.

This Amphenol Industrial DIN Plug is ideal for industrial electronics, construction, automation, and manufacturing settings where dependable connections are critical. Its robust design and international standard compliance ensure performance and safety in panel mount installations and electrical control systems. Browse EnvMart’s wide range of DIN connectors and industrial power connectors for compatible and complementary components.
