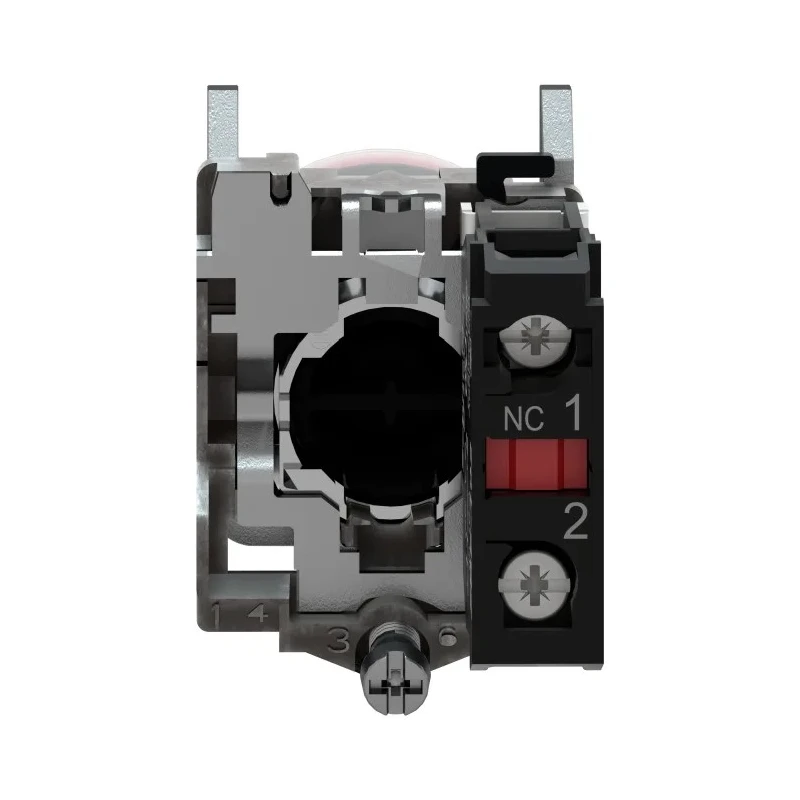

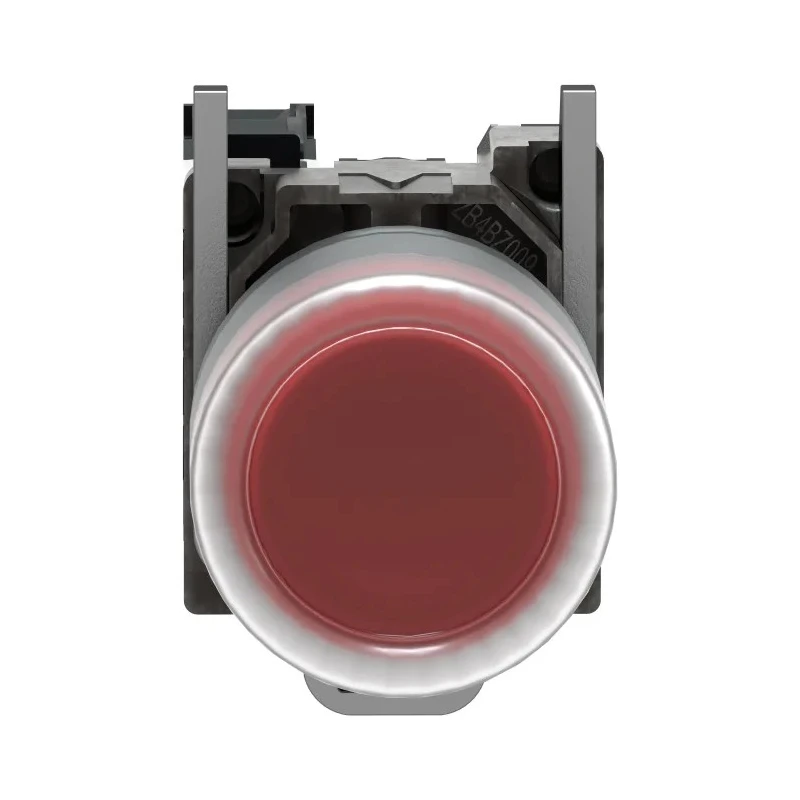

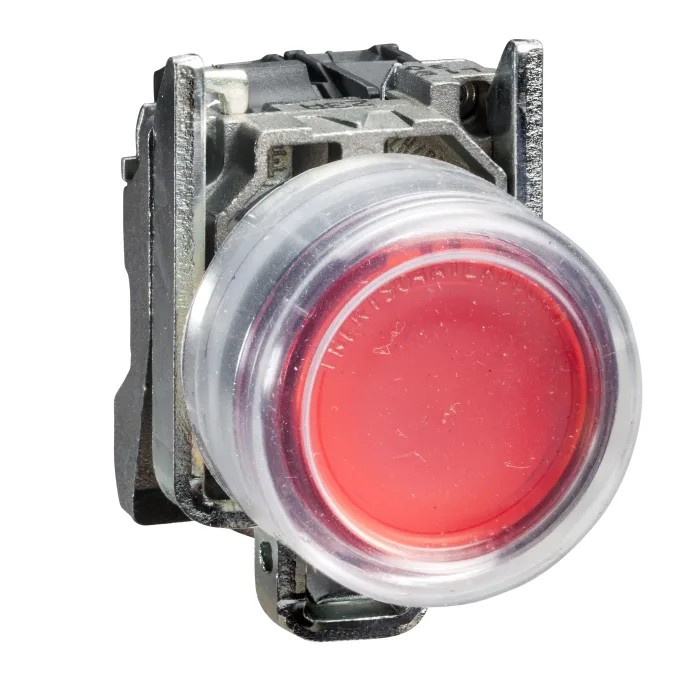

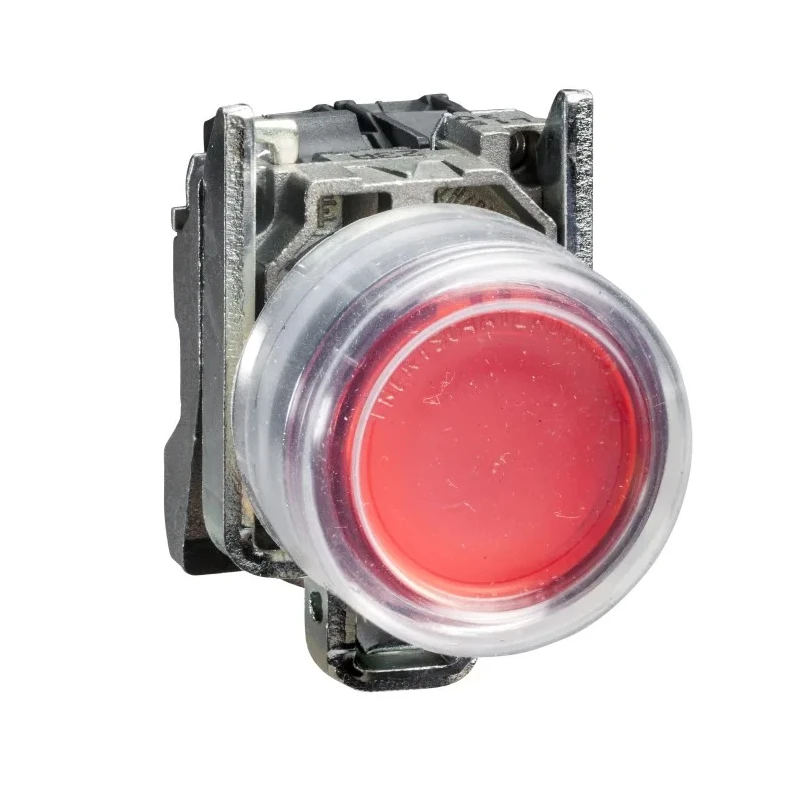

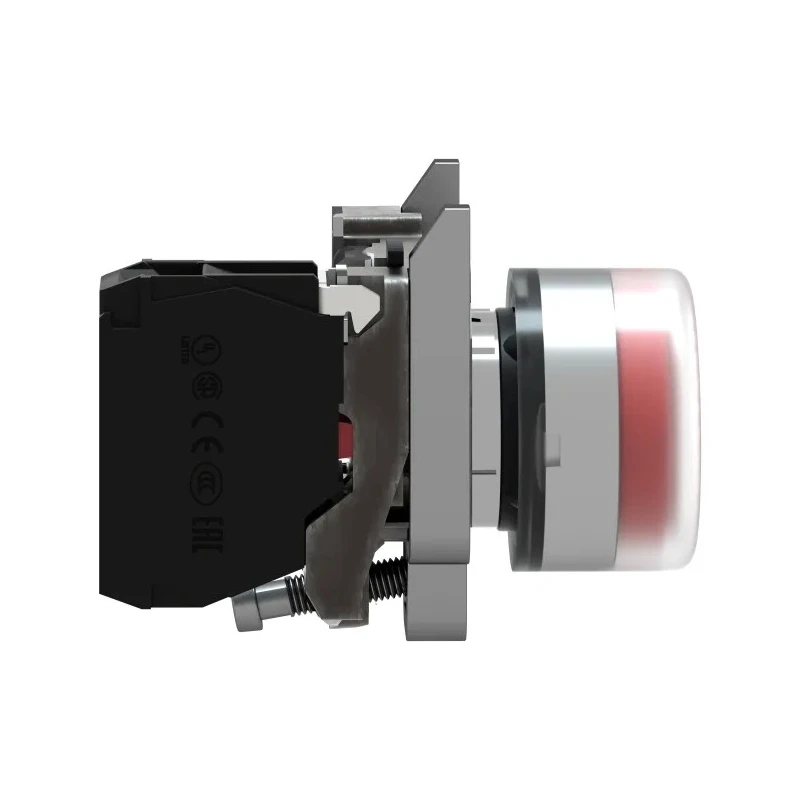

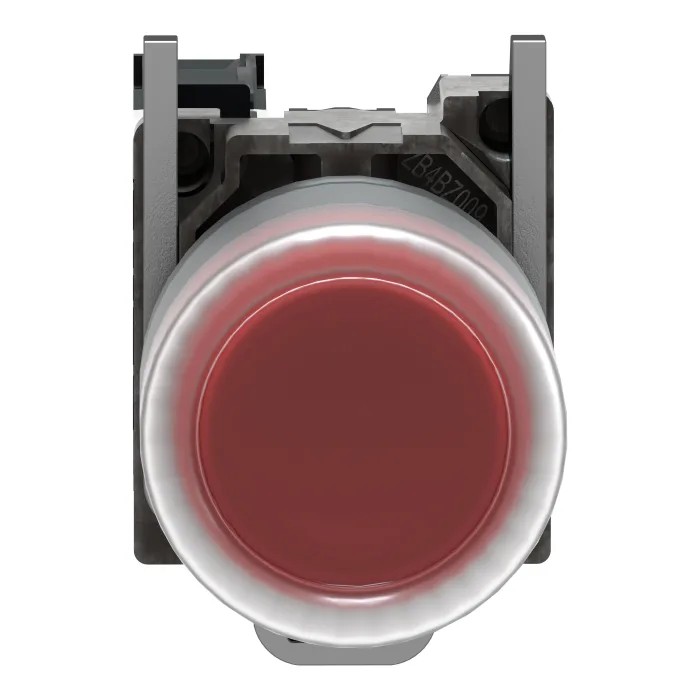

Schneider Electric Harmony XB4 Series Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout, SPST, Red LED XB4BP42EX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 35mm |
| Length | 200mm |
| Model | XB4BP42EX |
| IP Rating | IP66, IP67 |
| Width | 140mm |
| Mount Type | Panel |
| Series | Harmony XB4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | 1 NC |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | Red |
| Switch Operation | Spring Return |
| Actuator Colour | Red |
| Contact DC Voltage | 600V dc |
| Actuator Style | Round |
| Switch Contact Current | 10A |
| Contact AC Voltage | 600V |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
Key Features
- Designed for panel mounting with a compact 22 mm cutout size.
- Constructed with a chrome-plated metal bezel and Zamak fixing collar for durability.
- Switch operation is spring return with 1 NC contact configuration.
- IP66 and IP67 rated for water and dust resistance in harsh environments.
- Suitable for control stations and automation applications requiring reliable push button control.
- Rated for 10A switch contact current with 600V AC/DC voltage support.
- Operating temperature range from -25°C to 70°C ensures wide environmental compatibility.
- Red actuator color with red LED for clear signaling and status indication.
Product Description
Schneider Electric XB4BP42EX is a robust Harmony XB4 Series push button switch designed for efficient control panel use. Featuring a spring return mechanism and a 22 mm mounting diameter, this push button switch is ideal for panel installation in industrial environments.
The switch is constructed with a chrome-plated metal bezel combined with a Zamak fixing collar, providing durability and ease of maintenance. Its round actuator has a red color with an integrated red LED, enhancing visibility and operational safety.
Rated at 10A switch contact current and supporting 600V AC/DC contact voltage, the XB4BP42EX delivers reliable switching even under demanding electrical loads. Its high ingress protection ratings of IP66 and IP67 ensure the device is well-protected against dust, water immersion, and adverse conditions, making it suitable for harsh industrial environments.
The operating temperature range from -25°C to 70°C allows usage across diverse climates. Mechanical endurance is rated for 1,000,000 cycles to guarantee longevity in rigorous applications. It is compliant with relevant international standards such as EN 50014, EN 50281-1-1, IEC 61241-0, and IEC 61241-1, confirming its safety and quality.
This push button switch is especially suited for control panels, emergency stop scenarios, and automation lines in automotive and manufacturing industries. Its vibration resistance and short circuit protection features add further reliability.
Designed for panel mounting with a compact 22 mm cutout size. Chrome plated metal bezel with Zamak fixing collar for durability and easy maintenance. Spring return switch operation with 1 NC contact configuration ensures safety.
IP66 and IP67 protection ratings provide robust ingress protection against dust and water. Supports 600V AC/DC contact voltage and 10A switch contact current. Operating temperature from -25°C to 70°C for versatile environmental use.
One million cycles of mechanical durability guarantee long service life. Meets EN 50014, EN 50281-1-1, IEC 61241-0, and IEC 61241-1 standards. Repairable by the end user, contributing to sustainability and longevity. Ideal for control stations, panels, and automation systems in industrial settings.
Explore Schneider Electric products on EnvMart for reliable industrial Push Button Switches and electrical automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this model is SPST (Single Pole Single Throw) with 1 NC (Normally Closed) contact.
The XB4BP42EX has IP66 and IP67 ratings, providing robust protection against dust and water immersion.
It operates within a temperature range of -25°C to 70°C, making it suitable for diverse environmental conditions.
This push button switch supports a maximum switch contact current of 10A.
It supports contact voltages of up to 600V AC and 600V DC.
The required panel cutout size for this push button switch is 22 mm.
It features a chrome-plated metal bezel and a Zamak fixing collar for durability and ease of maintenance.
The XB4BP42EX is rated for mechanical endurance of 1,000,000 cycles.
It has a round actuator with a red color and an integrated red LED for clear signaling.
The terminal type for this push button switch is screw type, facilitating secure connections.
Yes, it is designed to be repairable by the end user, contributing to sustainability and longevity.
This model is suitable for control stations, emergency stop scenarios, and automation lines in industrial settings.
