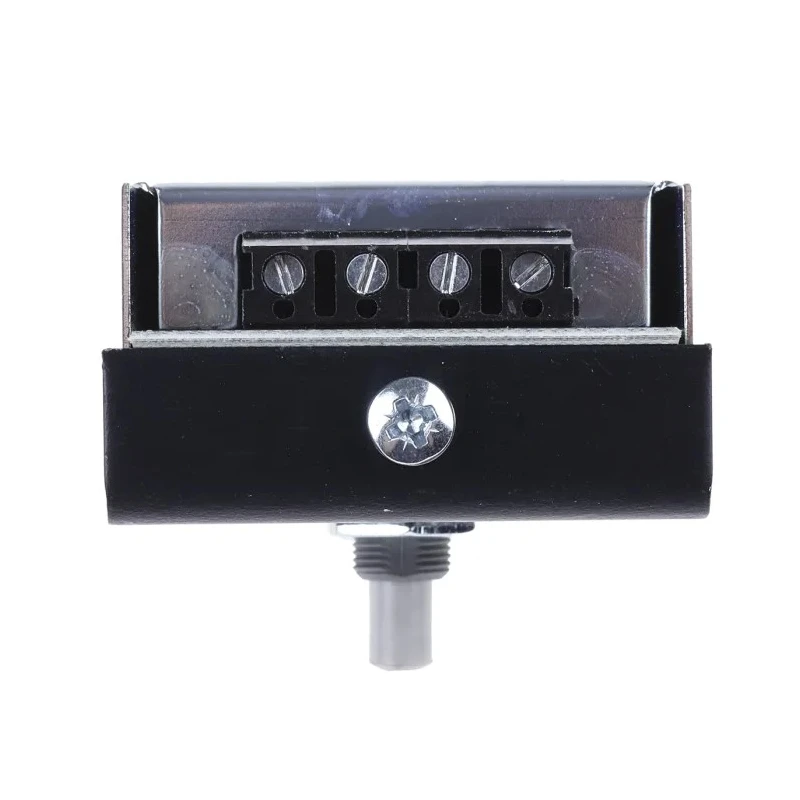

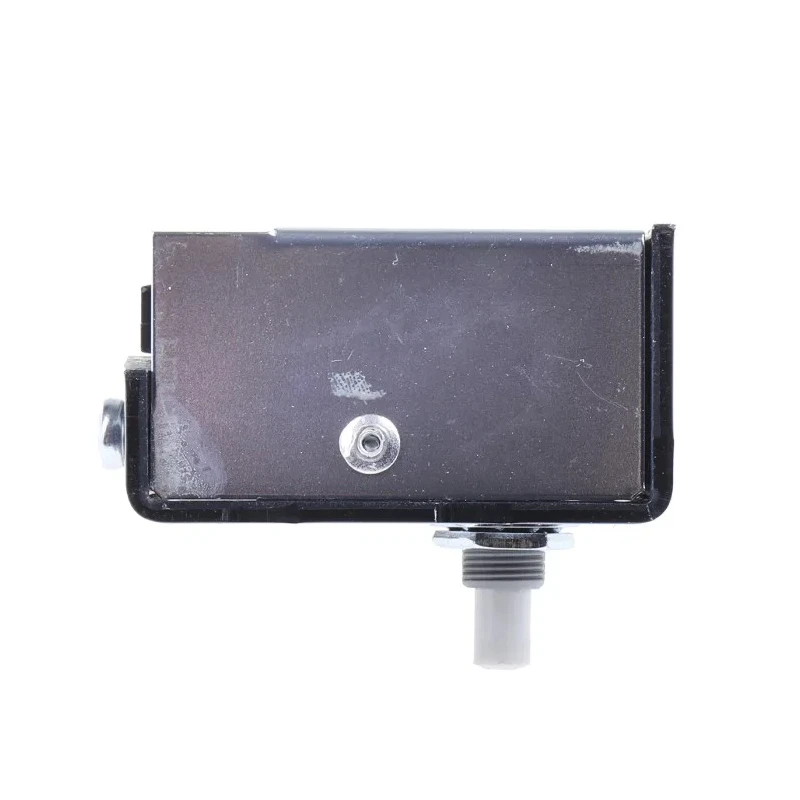

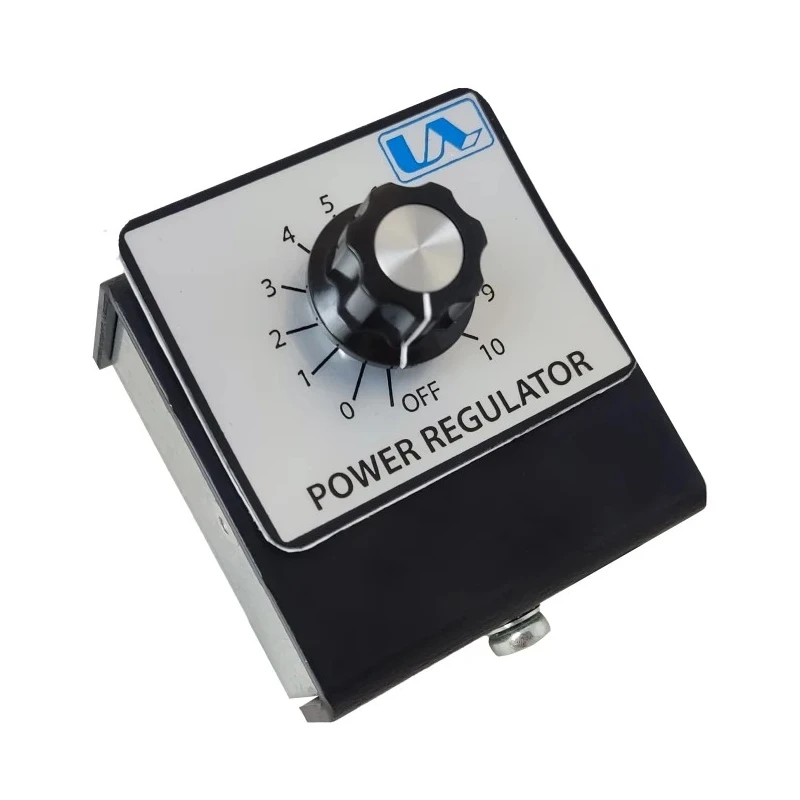

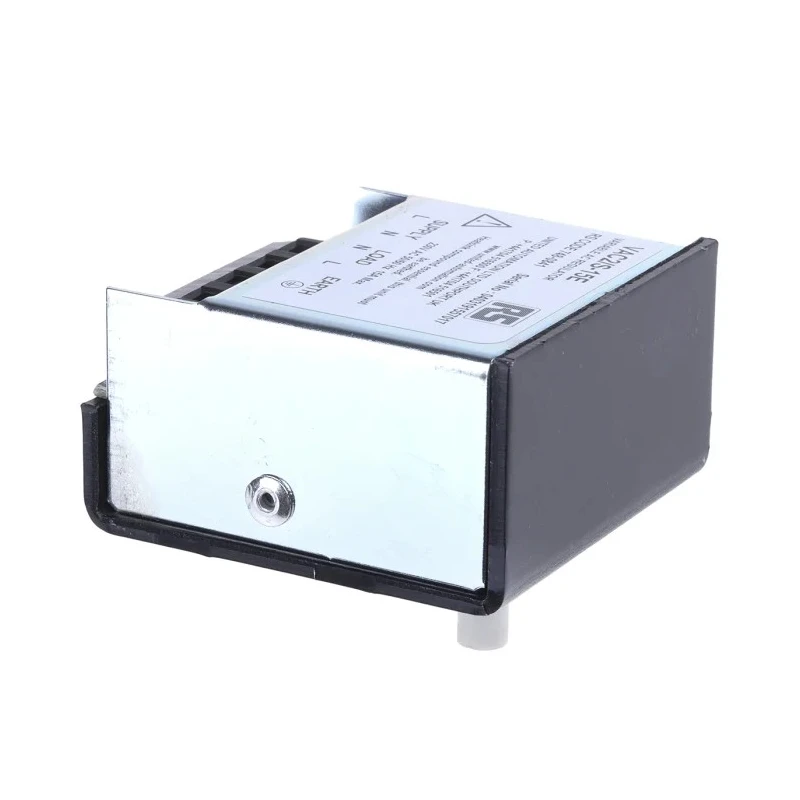

United Automation Fan Speed Controller for Use with Single-Phase Mains-Driven Inductive Loads, 230V AC, 15A VAC2/S-15E
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Frequency | 60Hz |
| Brand | United Automation |
| Model | VAC2/S-15E |
| Maximum Current | 15A |
| Output Configuration | Single Phase Switched |
| For Use With | Single-Phase Mains-Driven Inductive Loads (Including Induction Motors,Fans,Pumps) |
| Standards/Approvals | EMC Directive, Low Voltage Directive (LVD), I.E.T. Regulations (BS7671) |
| Maximum Supply Voltage | 230V ac |
Key Features
- Designed for use with single-phase inductive loads including motors, fans, and pumps.
- Provides adjustable voltage output from zero to maximum to control fan speed smoothly.
- Includes integral RC snubber network for effective inductive load control.
- Equipped with minimum set speed adjuster to prevent motor stalling at low speeds.
- Rugged, compact design with a large triac providing inrush current protection.
- Single-phase switched output configuration suitable for 230V AC supply at 60Hz frequency.
- Optional OFF switch on potentiometer version available for user convenience.
- Manufactured in the United Kingdom with compliance to EMC Directive, Low Voltage Directive, and I.E.T. Regulations (BS7671).
Product Description
United Automation VAC2/S-15E fan speed controller is built for reliable operation with single-phase mains-driven inductive loads such as induction motors, fans, and pumps. Rated for a maximum current of 15A and compatible with 230V AC at 60Hz, this controller allows infinitely variable voltage output from zero to full supply voltage, providing precise speed control.
The device features a robust and compact enclosure with a large triac that offers inrush current protection, ensuring durable performance in demanding industrial and HVAC environments. An integral RC snubber network specifically controls inductive loads effectively, preventing voltage spikes and improving overall safety.
A minimum set speed adjuster located at the rear of the unit provides design flexibility by fixing a minimum output voltage level, which prevents motors from running too slowly and stalling. Certain models of this controller include an OFF switch activated by turning the potentiometer fully anti-clockwise, enhancing ease of use.
This fan speed controller is suitable for a variety of applications in industrial, manufacturing, HVAC, and general electrical automation systems. Its rugged construction and compliance with EMC Directive, Low Voltage Directive (LVD), and I.E.T. Regulations (BS7671) make it a dependable choice for motor control tasks.
Designed for use with single-phase inductive loads including motors, fans, and pumps. Provides adjustable voltage output from zero to maximum for smooth fan speed control. Integral RC snubber network for effective control of inductive loads.
Minimum set speed adjuster to prevent motor stalling at low speeds. Robust, compact design with inrush current protection. Single-phase switched output, 230V AC, 60Hz supply frequency. Optional OFF switch on potentiometer version (/S variant) available.
Compliant with EMC Directive, Low Voltage Directive, and British Standards (BS7671). Choose United Automation products for high-quality automation solutions. Browse the Industrial Supplies category for more Fan Accessories and motor controllers on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 15A.
It requires a supply voltage of 230V AC.
It is designed for use with single-phase mains-driven inductive loads, including induction motors, fans, and pumps.
This model operates at a frequency of 60Hz.
Yes, it includes a large triac that provides inrush current protection.
Yes, it has a minimum set speed adjuster to prevent motors from stalling at low speeds.
It complies with the EMC Directive, Low Voltage Directive (LVD), and I.E.T. Regulations (BS7671).
The output configuration is single-phase switched.
It features a rugged, compact design suitable for demanding industrial environments.
Yes, it provides adjustable voltage output from zero to maximum for smooth fan speed control.
Certain models include an optional OFF switch that is activated by turning the potentiometer fully anti-clockwise.
It is manufactured in the United Kingdom.
