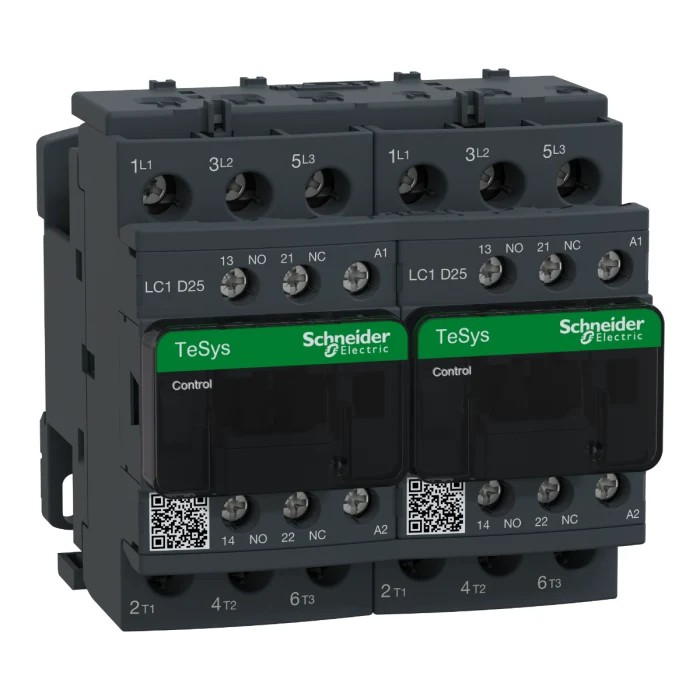

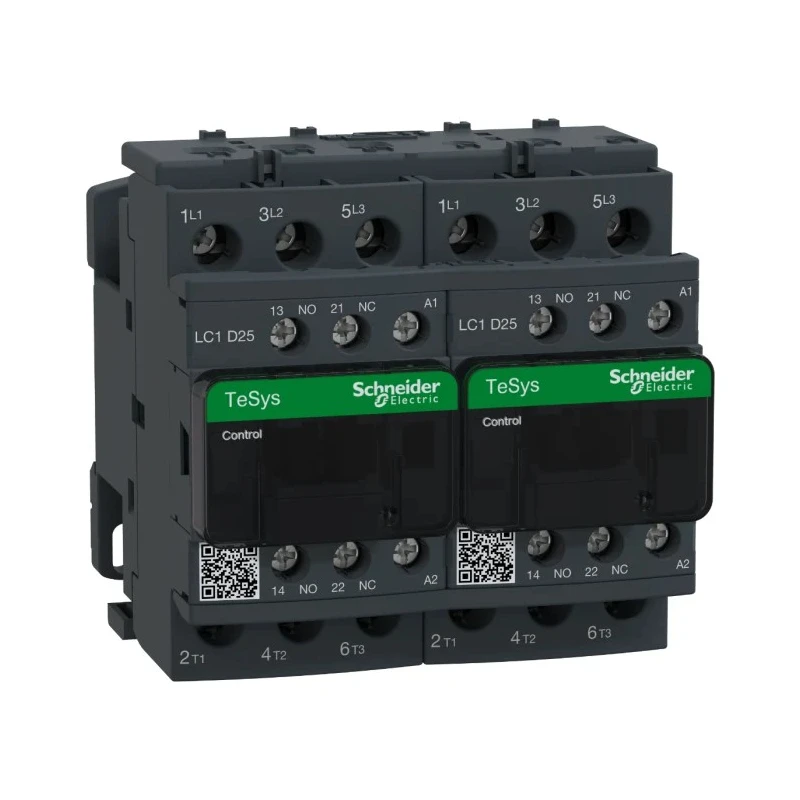

Schneider Electric LC2D TeSys D Motor Control Contactor 230V AC Coil 3-Pole 25A 11kW 3 NO 440V AC LC2D25P7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 82.5mm |
| Model | LC2D25P7 |
| Depth | 86mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 440V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load with reversing capability.
- Equipped with 3 normally open main contacts (3 NO) and 2 auxiliary contacts (2 NO/2 NC).
- Compact dimensions with 90mm width, 82.5mm length, and 86mm depth enable easy mounting.
- Operates reliably between -5°C and 60°C ambient temperature range.
- IP20 finger-safe screw terminals ensure secure and safe connections.
- Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
- Designed for easy installation on DIN rail or panel mount.
- Made in France with a design focus on sustainability and disassembly.
Product Description
Schneider Electric LC2D25P7 is a robust TeSys D series contactor designed for motor control and resistive load applications. It features a 230V AC coil voltage and 3-pole configuration, capable of handling 25A contact current and 11kW power rating at 230V AC. The contactor is equipped with 3 normally open main contacts (3 NO) and 2 auxiliary contacts configured as 2 NO/2 NC, providing enhanced switching capabilities.
The device offers compact dimensions of 90mm width, 82.5mm length, and 86mm depth, facilitating easy installation on DIN rail or panel mount. Screw terminals rated IP20 provide finger-safe secure connections with markings suitable for both North American and international standards.
Operating reliably between ambient temperatures of -5°C to 60°C, the contactor meets strict international approvals including CCC, CSA, EAC, IEC, RoHS, and UL, ensuring compliance and safety.
This Schneider Electric Contactor is engineered with sustainability in mind, featuring design for disassembly and long mechanical and electrical life. The built-in auxiliary contacts and pre-installed interlock simplify control circuits and operations.
Typical industrial use cases include motor control, HVAC systems, manufacturing equipment, pumps, conveyors, and other applications requiring reliable switching of squirrel cage motors and resistive loads.
Designed for motor control and resistive load with reversing capability. Equipped with 3 normally open main contacts (3 NO) and 2 auxiliary contacts (2 NO/2 NC). Compact dimensions with 90mm width, 82.5mm length, and 86mm depth enable easy mounting.
Operates reliably between -5°C and 60°C ambient temperature range. IP20 finger-safe screw terminals ensure secure and safe connections. Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL. Designed for easy installation on DIN rail or panel mount.
Made in France with a design focus on sustainability and disassembly. Ideal for industrial, HVAC, and manufacturing motor control applications. Discover the comprehensive range of Schneider Electric automation and control products available on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 11kW at 230V AC.
The coil voltage for this contactor is 230V AC.
It can handle a maximum contact current of 25A.
This contactor features a 3-pole configuration.
The dimensions are 90mm in width, 82.5mm in length, and 86mm in depth.
It is designed for easy installation on DIN rail or panel mount.
It operates reliably between -5°C and 60°C ambient temperature.
It is suitable for motor control and resistive load applications, including reversing capability.
It is equipped with 2 auxiliary contacts configured as 2 NO/2 NC.
It features IP20 finger-safe screw terminals for secure connections.
It complies with CCC, CSA, EAC, IEC, RoHS, and UL standards.
Typical applications include motor control, HVAC systems, manufacturing equipment, pumps, and conveyors.
